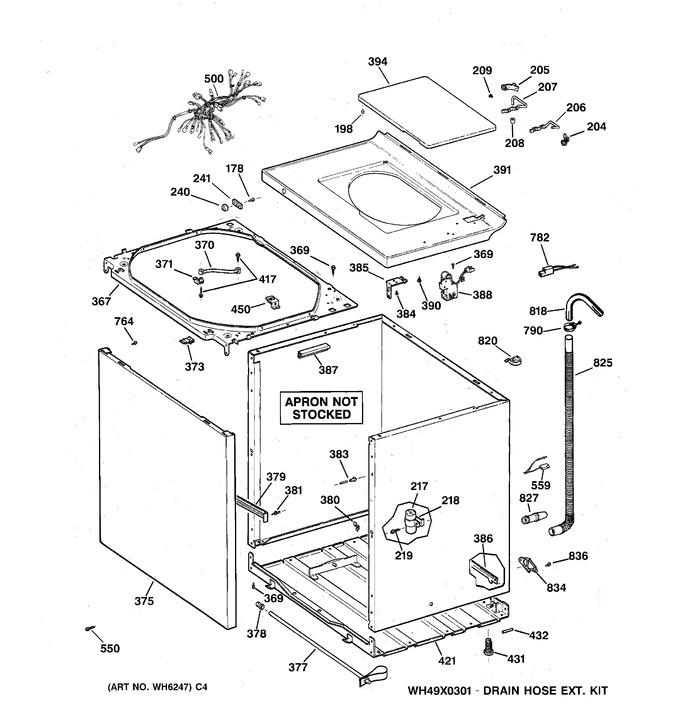

1 - Backsplash & Coin Box Assembly
2 - Cabinet, Cover & Front Panel
3 - Tub, Basket & Agitator
4 - Suspension, Pump & Drive Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 178 | WH2X939 | Scr 6-19 Pt Hx 1/4 S |
|
- | |||||
| 198 | WH1X2722 | Bumper Lid |
|
- | |||||
| 204 | WH1X2752 | Bushing Hinge |
|
- | |||||
| 205 | WH1X2759 | Bushing Hinge-front Open |
|
- | |||||
| 206 | WH1X2783 | Wireform Hinge |
|
- | |||||
| 207 | WH1X2762 | Wireform Hinge |
|
- | |||||
| 208 | WH1X2742 | Bumper Hinge |
|
- | |||||
| 209 | WH2X1211 | Screw |
|
- | |||||
| 217 | WH12X1041 | Capacitor |
|
- | |||||
| 218 | WH1X2758 | Clip Capacitor |
|
- | |||||
| 219 | WH2X1220 | Scr 10-16 Ab Ihws 3/4 S |
|
- | |||||
| 240 | WH1X2266 | Button Plug |
|
- | |||||
| 241 | WH1X2268 | Retainer Button |
|
- | |||||
| 367 | WH46X364 | Weld Asm Rod Support |
|
- | |||||
| 369 | WW01A00097 | Scr 8-18 Ab Ihw 7/16 Sn (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 370 | WW01A00400 | Strap Damping (Replaces: WH1X2727) |
|
Immediately | $ 88.13 | ||||
| 371 | WG04F02343 | Retainer Strap (Replaces: WH1X2726) |
|
Immediately | $ 12.71 | ||||
| 373 | WG04A00398 | Clip Locking (Replaces: WH2X1191) |
|
$ 6.35 | |||||
| 375 | WH46X347 | Panel Front Ad |
|
- | |||||
| 377 | WG04L01526 | Bar Shipping (Replaces: WH46X344) |
|
$ 22.75 | |||||
| 378 | WH1X2745 | Button Plug |
|
- | |||||
| 379 | WH16X514 | Brace |
|
- | |||||
| 380 | WH2X1207 | Clip Ground |
|
- | |||||
| 381 | WH2X1190 | Stud Grounding |
|
- | |||||
| 383 | WH2X1189 | Pin Alignment |
|
- | |||||
| 384 | WH2X1212 | Scr 6-20 B Trt 3/8 S |
|
- | |||||
| 385 | WH1X2723 | Clip Cover |
|
- | |||||
| 386 | WH46X342 | Bar Self Leveling |
|
- | |||||
| 387 | WH41X368 | Conduit Pressure Sw Hose |
|
- | |||||
| 388 | WH12X1051 | Lid Switch Asm |
|
- | |||||
| 390 | WH1X2724 | Isolator |
|
- | |||||
| 391 | WH44X1217 | Cover Asm Finished |
|
- | |||||
| 394 | WH44X1220 | Lid Asm Finished |
|
- | |||||
| 417 | WH2X694 | Scr 10-12 A Hx 1/2 S |
|
- | |||||
| 421 | WH46X346 | Base Asm |
|
- | |||||
| 431 | WG04L00346 | Leg Leveling (Replaces: WH2X1187) |
|
$ 6.35 | |||||
| 432 | WG04A00392 | Pin Roll (Replaces: WH2X1188) |
|
$ 6.35 | |||||
| 450 | WH16X528 | Nut & Bracket Asm |
|
- | |||||
| 500 | WH19X312 | Harness Washer Coin Op |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hwx 3/8 S |
|
- | |||||
| 559 | WH12X538 | Housing Terminal |
|
- | |||||
| 764 | WB1X5755 | Screw Bk |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 790 | WH1X2036 | Clamp Hose |
|
- | |||||
| 818 | WH41X35 | Nozzle Drain |
|
- | |||||
| 820 | WW01A00014 | Clip Anti-siphon (Replaces: WH1X2725) |
|
$ 3.97 | |||||
| 825 | WG04F04663 | Hose & Spring Asm. (Replaces: WH41X385) |
|
$ 249.69 | |||||
| 827 | WH41X386 | Adapter Drain Hose |
|
- | |||||
| 834 | WG04A00640 | Clip (drain Hose Ext.) (Replaces: WH16X513) |
|
Immediately | $ 4.37 | ||||
| 836 | WH2X1186 | Scr 8-18 Ab Ihw 5/8 S |
|
- |
