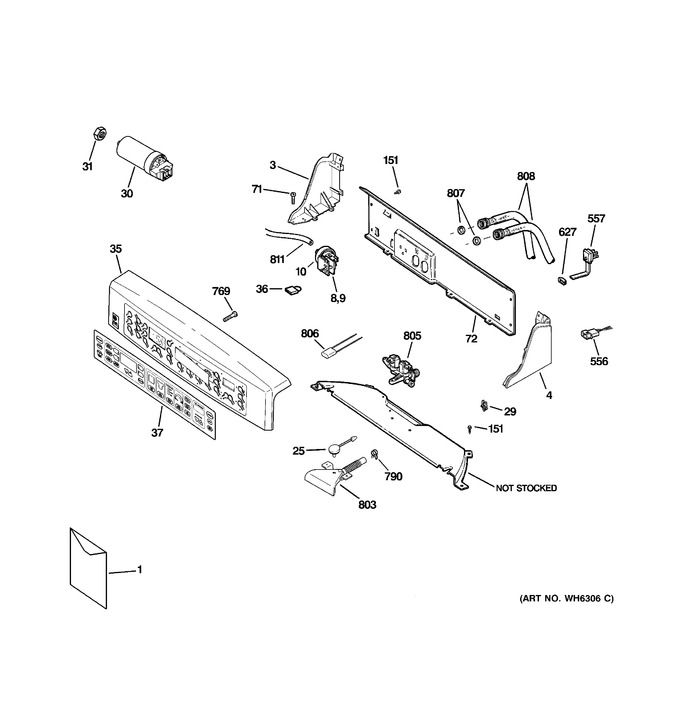

1 - Controls & Backsplash


2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-15538		Pm Sheet Mini Manual		Appelez-nous	-
1	49-90125		Pm Manual Use & Care		Appelez-nous	-
1	31-15441		Pm Instruction Install		Appelez-nous	-
3	WH42X10448		Endcap Left Cc		Appelez-nous	-
4	WH42X10447		Endcap Right Cc		Appelez-nous	-
8	WH02X10140		Scr St 8-18 X.437 Hx Ni		Appelez-nous	-
9	WH01X10195		Bracket Pressure Switch		Appelez-nous	-
10	WH12X10227		Switch Pressure				$ 195.75
25	WH12X10233		Probe Sensor Atc		Appelez-nous	-
29	WH02X10054		Wire Saddle		Appelez-nous	-
30	WH12X10192		Filter		Appelez-nous	-
31	WH02X10124		Nut		Appelez-nous	-
35	WH12X10235		Backsplash Asm		Appelez-nous	-
36	WH12X10094		Connector, Model Select		Appelez-nous	-
37	WH42X10456		Overlay Asm Jr Dryer Cc		Appelez-nous	-
71	WH2X1205		Scr 8-18 B 1/2 Hxw P		Appelez-nous	-
72	WH46X10088		Panel Back		Appelez-nous	-
151	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WH19X10025		Cord Power Asm		Appelez-nous	-
627	WR1X1930		Strain Relief		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
803	WH41X10078		Hose & Water Inlet		Appelez-nous	-
805	WH13X86		Valve Asm Water		Appelez-nous	-
806	WH12X10241		Snubber		Appelez-nous	-
807	WH2X42		Hose Washer		Appelez-nous	-
808	WH41X58		Hose Asm Intake		Appelez-nous	-
811	WG04F03638		Hose Pressure Switch   (Replaces: WH41X365)			Immediately	$ 15.88
