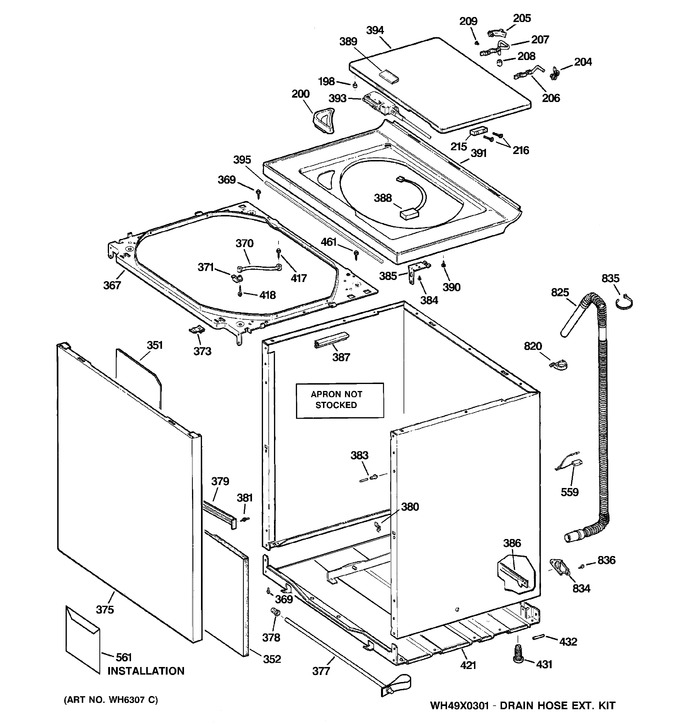

2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
198	WH1X2722		Bumper Lid		Appelez-nous	-
200	WG04F00463		Funnel Bleach   (Replaces: WH01X10057)				$ 58.52
204	WH01X10138		Bushing Hinge		Appelez-nous	-
205	WH01X10137		Bushing Wire		Appelez-nous	-
206	WH1X2740		Wireform Hinge		Appelez-nous	-
207	WH1X2743		Hinge Wireform (long)		Appelez-nous	-
208	WH1X2742		Bumper Hinge		Appelez-nous	-
209	WH2X1211		Screw		Appelez-nous	-
215	WH12X10092		Magnet Asm		Appelez-nous	-
216	WH02X10063		Scr 8-16 B Flp .625 Zn		Appelez-nous	-
351	WH46X353		Damper Front Panel		Appelez-nous	-
352	WH46X10067		Insulation Pack Asm		Appelez-nous	-
367	WH46X364		Weld Asm Rod Support		Appelez-nous	-
369	WW01A00097		Scr 8-18 Ab Ihw 7/16 Sn   (Replaces: WH2X1217)				$ 3.97
370	WH01X10046		Strap Damping		Appelez-nous	-
371	WG04F02343		Retainer Strap   (Replaces: WH1X2726)			Immediately	$ 12.71
373	WG04A00398		Clip Locking   (Replaces: WH02X10058)				$ 6.35
375	WH46X10072		Panel Front Cc		Appelez-nous	-
377	WG04L01526		Bar Shipping   (Replaces: WH46X344)				$ 22.75
378	WH1X2745		Button Plug		Appelez-nous	-
379	WH16X514		Brace		Appelez-nous	-
380	WH2X1207		Clip Ground		Appelez-nous	-
381	WH2X1190		Stud Grounding		Appelez-nous	-
383	WH2X1189		Pin Alignment		Appelez-nous	-
384	WH01X10109		Scr 8-15 A 3/4 Sp Hxw		Appelez-nous	-
384	WH01X10170		Scr 6-20 B Trt 3/8 S		Appelez-nous	-
385	WH1X2723		Cover Clip		Appelez-nous	-
386	WG04L01525		Bar Self Leveling   (Replaces: WH46X10094)				$ 49.56
387	WH41X10036		Conduit		Appelez-nous	-
388	WH12X10141		Lid Switch Asm		Appelez-nous	-
389	WH01X10196		Grommet Lid Lock		Appelez-nous	-
390	WH1X2724		Isolator		Appelez-nous	-
391	WH44X10111		Cover Asm Finished Cc		Appelez-nous	-
393	WH01X10194		Lid Lock Asm		Appelez-nous	-
394	WH44X10114		Lid Asm Finished Cc		Appelez-nous	-
395	WH46X10091		Foam Barrier		Appelez-nous	-
417	WH2X694		Scr 10-12 A Hx 1/2 S		Appelez-nous	-
418	WH02X10003		Scr 8-18 B Ihw 1 S		Appelez-nous	-
421	WH46X10079		Base Asm		Appelez-nous	-
431	WG04L00346		Leg Leveling   (Replaces: WH2X1187)				$ 6.35
432	WG04A00392		Pin Roll   (Replaces: WH2X1188)				$ 6.35
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
559	WH12X538		Housing Terminal		Appelez-nous	-
561	WH49X10017		Pk Pack Asm Installation		Appelez-nous	-
820	WW01A00014		Clip Anti-siphon   (Replaces: WH1X2725)				$ 3.97
825	WG04F00503		Hose Drain External   (Replaces: WH41X367)			Immediately	$ 74.78
834	WG04A00640		Retainer Hose   (Replaces: WH16X513)			Immediately	$ 4.37
835	WG04A00755		Strap   (Replaces: WH1X2594)				$ 19.06
836	WG04A01370		Scr 8-18 Ab Ihwp 7/8 S   (Replaces: WH02X10002)				$ 3.97
