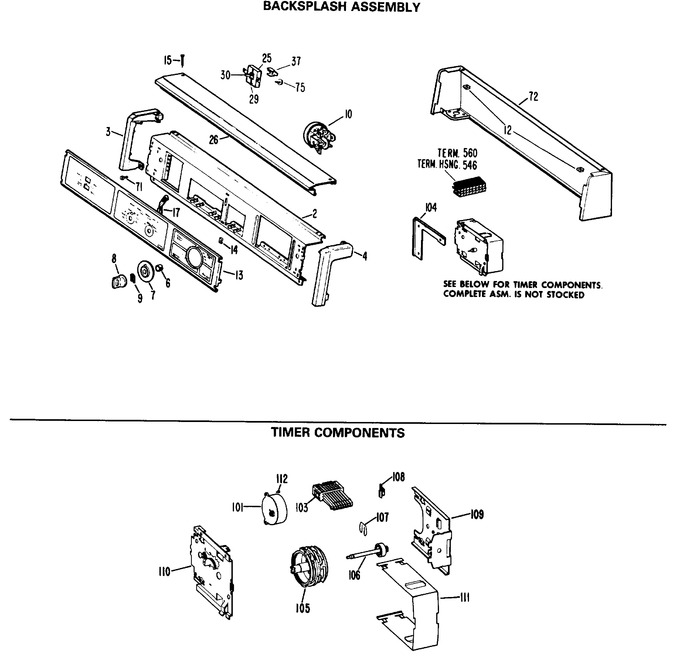

1 - Backsplash Assembly
2 - Cabinet And Suspension Asm.
3 - Tub, Basket & Agitator
4 - Transmission - Complete Breakdown
5 - 1-speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2199 | Trim End L.h. |
|
- | |||||
| 4 | WH42X2200 | Trim End R.h. |
|
- | |||||
| 6 | WH2X650 | Ring Comp |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Control Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X874 | Switch Asm Pres Togl |
|
- | |||||
| 15 | WE2X367 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 25 | WH12X873 | Switch Asm 1 Togl |
|
- | |||||
| 26 | WH42X2201 | Trim Top |
|
- | |||||
| 29 | WH1X1394 | Pin |
|
- | |||||
| 37 | WH16X429 | Bracket Switch |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 70 | WH2X937 | Screw |
|
- | |||||
| 71 | WH2X947 | Screw |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 100 | WH12X929 | Timer Asm |
|
- | |||||
| 101 | WH12X644 | Motor Timer |
|
- | |||||
| 103 | WH12X631 | Switch Panel Timer Asm |
|
- | |||||
| 104 | WH16X474 | Bracket Timer Mtg |
|
- | |||||
| 105 | WH11X111 | Cam |
|
- | |||||
| 106 | WH1X2280 | Shaft Timer |
|
- | |||||
| 107 | WH1X2281 | Spring Detent |
|
- | |||||
| 108 | WH1X2282 | Linkage Line Switch |
|
- | |||||
| 109 | WH12X700 | Plate Back |
|
- | |||||
| 110 | WH12X699 | Plate Front |
|
- | |||||
| 111 | WH12X701 | Cover Dust |
|
- | |||||
| 112 | WH2X948 | Scr (timer Asm) |
|
- | |||||
| 180 | WR1X1747 | Scr 10-12 A Hxw 7/8 S |
|
- | |||||
| 312 | WH2X681 | Screw 5/16-18x7/8 |
|
- | |||||
| 414 | WH2X715 | Scr 12-14 B Hx 3/4 S |
|
- | |||||
| 454 | WB1X358 | Speednut |
|
- | |||||
| 476 | WZ13X0031 | E Ring |
|
- | |||||
| 546 | WH12X870 | Housing Terminal Bk |
|
- | |||||
| 550 | WE2X281 | Scr 8-15 Hx 3/8 S |
|
- | |||||
| 560 | WD1X1434 | Terminal Special |
|
- | |||||
| 809 | WH8X253 | Nozzle Overflow |
|
- | |||||
| 3097 | WE1X762 | Clip Grounding |
|
- | |||||
| 32767 | 31-2280 | Mini Manual |
|
- | |||||
| 32767 | 31-2112 | Pm Instruction Instal |
|
- |
