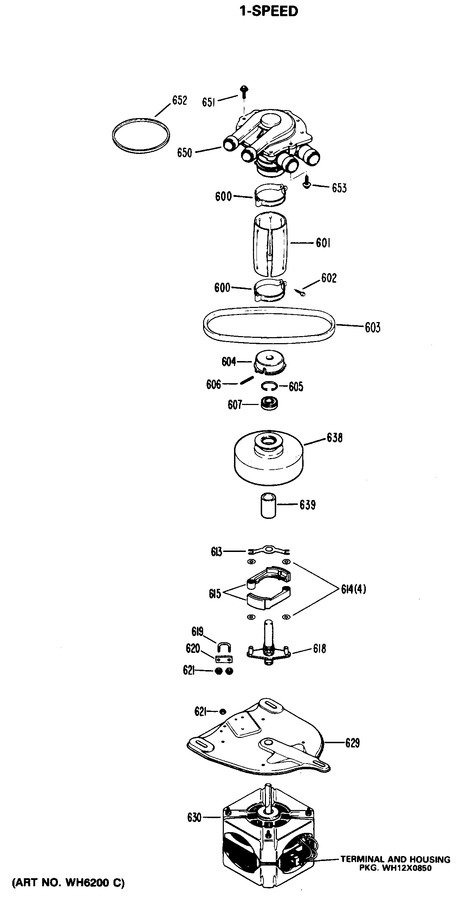

1 - Backsplash Assembly
2 - Cabinet And Suspension Asm.
3 - Tub, Basket & Agitator
4 - Transmission - Complete Breakdown
5 - 1-speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 560 | WD1X1434 | Terminal Special |
|
- | |||||
| 600 | WH1X1621 | Clamp Coupling |
|
- | |||||
| 601 | WH1X1722 | Coupling Flexible |
|
- | |||||
| 602 | WH2X941 | Screw Couple Clamp |
|
- | |||||
| 604 | WH7X45 | Plate Lower Drive |
|
- | |||||
| 605 | WH2X190 | Ring Retaining |
|
- | |||||
| 606 | WZ11X0050 | Roll Pin |
|
- | |||||
| 613 | WH1X1309 | Spring Clutch Leaf |
|
- | |||||
| 614 | WH2X539 | Washer Flat |
|
- | |||||
| 615 | WH7X110 | Shoe Clutch Primary (2) |
|
- | |||||
| 618 | WH40X151 | Shaft Extension Asm |
|
- | |||||
| 619 | WH2X543 | Bolt U |
|
- | |||||
| 620 | WH1X1169 | Plate Clamp |
|
- | |||||
| 621 | WZ08X0006 | Nut & Washer |
|
- | |||||
| 629 | WH17X86 | Mount Motor |
|
- | |||||
| 630 | WH20X64 | Motor Asm. |
|
- | |||||
| 638 | WH5X174 | Drum Clutch |
|
- | |||||
| 639 | WH2X581 | Spacer |
|
- | |||||
| 651 | WH2X888 | Scr 1/4-14 Bt Hxw 1 S |
|
- | |||||
| 653 | WH2X938 | Scr 10-16 Ab Hxw 1 3/8 S |
|
- |
