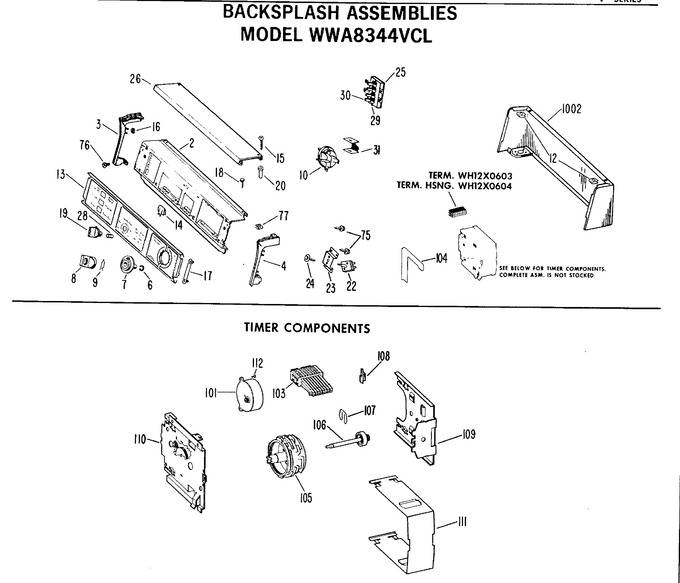

1 - Backsplash Assemblies
2 - Tub, Basket And Agitator
3 - Cabinet And Suspension Asm.
4 - 2-speed
5 - Transmission - Complete Breakdown
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X519 | End Trim Lh |
|
- | |||||
| 4 | WE19X520 | End Trim Rh |
|
- | |||||
| 6 | WH2X650 | Ring Comp |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Control Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X659 | Switch Asm Pressure |
|
- | |||||
| 12 | WB1X358 | Speednut |
|
- | |||||
| 13 | WH42X2026 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 15 | WZ04X0319 | Scr 8-18 Ba Opr 1 7/16 S |
|
- | |||||
| 16 | WE2X182 | Nut |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 18 | WE2X208 | Screw |
|
- | |||||
| 19 | WH1X1977 | Knob Switch |
|
- | |||||
| 20 | WE1X685 | Spacer |
|
- | |||||
| 22 | WH12X441 | Switch-selector |
|
- | |||||
| 23 | WH16X434 | Bracket Switch |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 25 | WH12X597 | Switch Asm 2 Togl |
|
- | |||||
| 26 | WH42X1134 | Top Trim |
|
- | |||||
| 28 | WH1X1974 | Clip |
|
- | |||||
| 29 | WH1X1394 | Pin |
|
- | |||||
| 30 | WH1X835 | Key-switch |
|
- | |||||
| 31 | WH16X317 | Shield |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 76 | WZ05X0120 | Screw |
|
- | |||||
| 77 | WE2X196 | Speed Clip |
|
- | |||||
| 100 | WH12X640 | Timer Asm |
|
- | |||||
| 101 | WH12X633 | Motor Timer |
|
- | |||||
| 103 | WH12X631 | Switch Panel Timer Asm |
|
- | |||||
| 104 | WH16X433 | Bracket Timer Mounting |
|
- | |||||
| 105 | WH11X110 | Cam |
|
- | |||||
| 106 | WH1X2280 | Shaft Timer |
|
- | |||||
| 107 | WH1X2281 | Spring Detent |
|
- | |||||
| 108 | WH1X2282 | Linkage Line Switch |
|
- | |||||
| 109 | WH12X700 | Plate Back |
|
- | |||||
| 110 | WH12X699 | Plate Front |
|
- | |||||
| 111 | WH12X701 | Cover Dust |
|
- | |||||
| 112 | WH2X948 | Scr (timer Asm) |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 312 | WH2X681 | Screw 5/16-18x7/8 |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hwx 3/8 S |
|
- | |||||
| 1002 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 1002 | WH46X213 | Weld Asm-housing Cf |
|
- | |||||
| 1002 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 1002 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 1002 | WH46X214 | Weld Asm-housing Fa |
|
- | |||||
| 9999 | 49-9091 | Pm Instal Instr 055 |
|
- | |||||
| 9999 | 49-9377 | Use - Care Book |
|
- | |||||
| 9999 | 49-9419 | Instruction Sheet |
|
- |
