SELECT A DIAGRAM

1 - Backsplash Assemblies


2 - Tub, Basket And Agitator


3 - Cabinet And Suspension Asm.

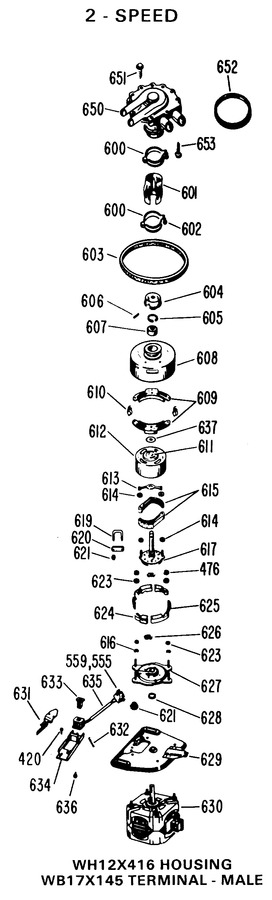

4 - 2-speed


5 - Transmission - Complete Breakdown


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
420	WH2X893		Screw 10-16 X 3/8 Hex		Appelez-nous	-
476	WZ13X0031		Ring-e		Appelez-nous	-
555	WB17X5053		Terminal		Appelez-nous	-
559	WH12X538		Housing-terminal		Appelez-nous	-
600	WH1X1621		Clamp-coupling		Appelez-nous	-
601	WH1X1722		Coupling-flexible		Appelez-nous	-
602	WH2X941		Screw 8-15 X 7/8 Hex		Appelez-nous	-
603	WG04F03608		Belt   (Replaces: WH1X2026)			Immediately	$ 44.02
604	WH7X45		Plate-lower Drive		Appelez-nous	-
605	WH2X190		Ring-retaining K		Appelez-nous	-
606	WZ11X0050		Pin-roll		Appelez-nous	-
607	WH4X12		Bearing-ball		Appelez-nous	-
608	WH5X175		Drum Asm-outer		Appelez-nous	-
609	WH7X82		Shoe Asm-slip		Appelez-nous	-
610	WH1X1337		Spring-slip Shoe		Appelez-nous	-
611	WH4X91		Bearing Kit		Appelez-nous	-
612	WH5X207K		Drum-inner Mach   (Replaces: WH5X207)				$ 34.88
613	WH1X1309		Spring-clutch Leaf		Appelez-nous	-
614	WH2X539		Washer-flat		Appelez-nous	-
615	WH7X80		Shoe Asm-primary		Appelez-nous	-
616	WH2X662		Washer-bow		Appelez-nous	-
617	WH40X150		Plate Asm-clutch Base				$ 31.05
619	WH2X543		Bolt-u		Appelez-nous	-
620	WH1X1169		Plate-clamp		Appelez-nous	-
621	WZ08X0006		Nut & Washer		Appelez-nous	-
623	WH2X580		Washer-flat		Appelez-nous	-
624	WH5X193		Shoe Asm		Appelez-nous	-
625	WH7X76		Shoe Asm		Appelez-nous	-
626	WH1X1258		Spring-lock-in Shoes		Appelez-nous	-
627	WH17X53		Plate Asm-carrier		Appelez-nous	-
628	WZ13X0006		Ring-retaining		Appelez-nous	-
629	WH17X74		Mount-motor		Appelez-nous	-
630	WH20X52		Motor 1/2hp 115v 60 Hz		Appelez-nous	-
631	WH1X2055		Spring & Catch Asm		Appelez-nous	-
632	WH1X1797		Spring		Appelez-nous	-
633	WH12X406		Shunt & Core Asm		Appelez-nous	-
634	WH16X360		Mount-solenoid		Appelez-nous	-
635	WH12X533		Coil Asm		Appelez-nous	-
636	WH2X765		Screw 8-32 X 3/8 Hex		Appelez-nous	-
637	WH2X634		Washer-flat		Appelez-nous	-
650	WH23X42		Pump Asm				$ 138.00
651	WH2X888		Screw 1/4-14 X 1 Hex		Appelez-nous	-
652	WH8X286		Gasket-pump		Appelez-nous	-
653	WH2X938		Screw 10-16 X 1 3/8 Hex		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
