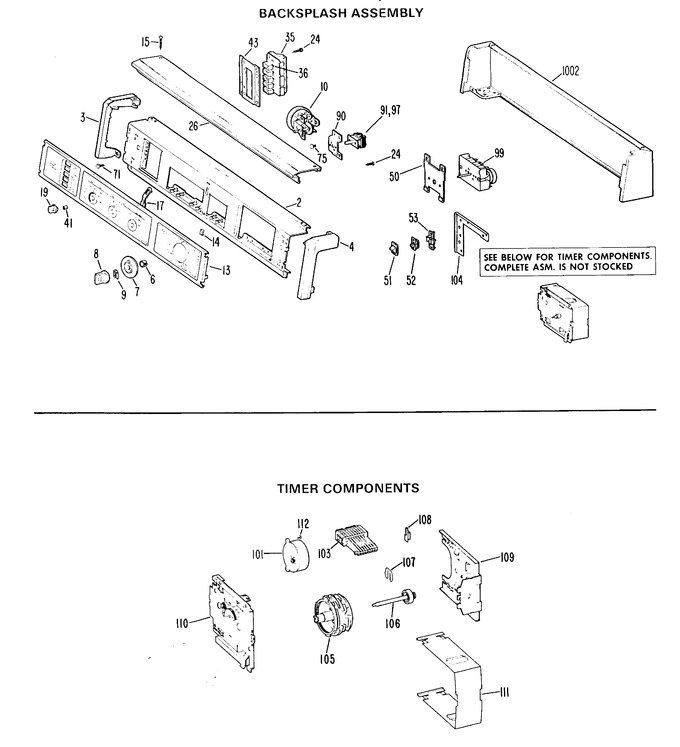

1 - Backsplash Assembly
2 - Tub,basket & Agitator
3 - Cabinet And Suspension Asm.
4 - Transmission - Complete Breakdown
5 - 2 - Speed
6 - Pinch Valve Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WE19X793 | Trim End Lh |
|
- | |||||
| 4 | WE19X792 | Trim End Rh |
|
- | |||||
| 6 | WH2X650 | Ring Compression K |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X721 | Switch Water Level Var/m |
|
- | |||||
| 12 | WB1X358 | Nut Sheet Metal |
|
- | |||||
| 13 | WH42X2101 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Ground |
|
- | |||||
| 15 | WZ04X0319 | Scr 8-18 Ba Opr 1 7/16 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 19 | WE1X1069 | Knob Asm Switch |
|
- | |||||
| 24 | WZ02X0510 | Scr 8-32 M Hx 3/16 S |
|
- | |||||
| 26 | WH42X2131 | Trim Asm Top |
|
- | |||||
| 35 | WH12X733 | Switch Asm 5 Button |
|
- | |||||
| 36 | WE1X981 | Button Switch |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 43 | WH16X343 | Plate Switch |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hx 1/2 S |
|
- | |||||
| 50 | WH16X471 | Bracket Timer |
|
- | |||||
| 51 | WH1X2530 | Button Switch |
|
- | |||||
| 52 | WH12X835 | Switch Slide |
|
- | |||||
| 53 | WH16X473 | Retainer Switch |
|
- | |||||
| 70 | WH2X937 | Scr 10-15 A Hxw 7/16 S |
|
- | |||||
| 71 | WH2X947 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 72 | WH46X215 | Backsplash Wrapper Ha |
|
- | |||||
| 72 | WH46X211 | Backsplash Wrapper Wh |
|
- | |||||
| 72 | WH46X212 | Backsplash Wrapper Ad |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 97 | WH12X730 | Switch Asm Rotary |
|
- | |||||
| 99 | WH12X836 | Timer Asm "spotscrubber" |
|
- | |||||
| 100 | WH12X933 | Timer Asm |
|
- | |||||
| 101 | WH12X719 | Motor Timer S |
|
- | |||||
| 103 | WH12X631 | Switch Panel Timer Asm |
|
- | |||||
| 104 | WH16X474 | Bracket Timer Mtg |
|
- | |||||
| 105 | WH11X114 | Cam |
|
- | |||||
| 106 | WH1X2280 | Shaft Timer |
|
- | |||||
| 107 | WH1X2281 | Spring Detent |
|
- | |||||
| 108 | WH1X2282 | Linkage Line Switch |
|
- | |||||
| 109 | WH12X700 | Plate Back |
|
- | |||||
| 110 | WH12X699 | Plate Front |
|
- | |||||
| 111 | WH12X701 | Cover Dust |
|
- | |||||
| 112 | WH2X948 | Scr (timer Asm) |
|
- | |||||
| 149 | WZ04X0280 | Scr 8-18 B Hxw 3/4 S |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Bt Hxw 1/2 S |
|
- | |||||
| 394 | WH44X1111 | Lid Ad |
|
- | |||||
| 546 | WH12X604 | Housing Terminal |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 554 | WB17X5054 | Terminal |
|
- | |||||
| 560 | WH12X603 | Terminal |
|
- | |||||
| 629 | WH17X86 | Mount Motor |
|
- | |||||
| 724 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2 S |
|
- | |||||
| 735 | WH8X291K | Seal Activator Shaft Asm (Replaces: WH8X291) |
|
$ 8.85 | |||||
| 736 | WP9703438 | Ring Retaining (Replaces: WH2X786) |
|
Immediately | $ 4.23 | ||||
| 737 | WH2X207 | Washer Flat |
|
- | |||||
| 738 | WH40X152 | Shaft Agitator 18# |
|
- | |||||
| 739 | WH4X85 | Bearing Asm Agit Shaft |
|
- | |||||
| 741 | WH1X1834 | Key |
|
- | |||||
| 742 | WH4X93 | Bearing Asm Agit Shaft |
|
- | |||||
| 744 | WH40X159 | Shaft Pinion |
|
- | |||||
| 745 | WH40X157 | Tube Spin |
|
- | |||||
| 746 | WH1X2335 | Retainer Spring |
|
- | |||||
| 747 | WH1X1842 | Spring Latch |
|
- | |||||
| 748 | WH10X45 | Latch Slide |
|
- | |||||
| 749 | WZ11X0055 | Pin Roll |
|
- | |||||
| 750 | WH7X46 | Pulley & Sleeve Asm |
|
- | |||||
| 751 | WH2X671 | Washer Flat Seal |
|
$ 2.08 | |||||
| 752 | WH2X659 | Nut Lock |
|
- | |||||
| 753 | WH2X201 | Washer Flat |
|
- | |||||
| 758 | WH8X242 | Gasket Gear Case Cover |
|
- | |||||
| 759 | WH40X149 | Shaft Crank Gear |
|
- | |||||
| 761 | WH4X81 | Bearing |
|
- | |||||
| 762 | WH7X57 | Hub Clutch |
|
- | |||||
| 763 | WH7X58 | Spring Clutch |
|
- | |||||
| 764 | WH1X2147 | Tube Latch |
|
- | |||||
| 765 | WH40X145 | Shaft Dual Gear |
|
- | |||||
| 766 | WH40X146 | Shaft Sector Gear |
|
- | |||||
| 768 | WZ13X0032 | Ring Retaining |
|
- | |||||
| 771 | WH39X40 | Gear Case Cover & Hdwr. |
|
- | |||||
| 774 | WH1X2083 | Clamp Hub |
|
- | |||||
| 775 | WZ01X0032 | Scr 5/16-24 Cap Hx1 1/2s |
|
- | |||||
| 808 | WH41X58 | Hose Asm Intake |
|
- | |||||
| 932 | WHO1X2533 | Shield Valve |
|
- | |||||
| 32767 | WH60X11 | Lubricant |
|
- | |||||
| 32767 | WG04A01311 | Washer Flat (Replaces: WH1X1986) |
|
Immediately | $ 4.65 | ||||
| 32767 | WH8X281 | Seal |
|
- | |||||
| 32767 | WH1X1862 | Clamp Yoke |
|
- | |||||
| 32767 | WH44X985 | Cover Asm Cf |
|
- | |||||
| 32767 | WH1X2233 | Spout Bleach Fa |
|
- | |||||
| 32767 | WH4X91 | Bearing Spacer |
|
- | |||||
| 32767 | WH5X188 | Link |
|
- | |||||
| 32767 | WH0X551 | Band & Lining Asm |
|
- | |||||
| 32767 | WH60X12 | Adhesive |
|
- | |||||
| 32767 | WH46X196 | Apron & Brace Asm Cf |
|
- | |||||
| 32767 | WH2X935 | Scr |
|
- | |||||
| 32767 | WH46X213 | Backsplash Wrapper Cf |
|
- | |||||
| 32767 | WH0X526 | Pk Pack Asm Installation |
|
- | |||||
| 32767 | 31-2400 | Pm Instruction Instl |
|
- | |||||
| 32767 | WZ10X0018 | Washer Flat |
|
- | |||||
| 32767 | WH0X529 | Flange Rear Base |
|
- | |||||
| 32767 | WH1X1092 | Ps Restrictor-drain Hose |
|
- | |||||
| 32767 | WH60X15 | Adhesive |
|
Immediately | $ 47.25 | ||||
| 32767 | WH46X248 | Backsplash Wrapper Sl |
|
- | |||||
| 32767 | WH46X247 | Backsplash Wrapper Ds |
|
- | |||||
| 32767 | WH46X188 | Leg & Strap Asm |
|
- | |||||
| 32767 | WH41X58 | Hose Intake Asm |
|
- | |||||
| 32767 | 49-9511 | Pm Use & Care Book |
|
- | |||||
| 32767 | WH46X214 | Backsplash Wrapper Fa |
|
- | |||||
| 32767 | WH2X820 | Scr 1/4-14 Hx 3/4 S |
|
- | |||||
| 32767 | WH46X197 | Apron & Brace Asm Fa |
|
- | |||||
| 32767 | WH44X986 | Cover Asm Fa |
|
- |
