SELECT A DIAGRAM

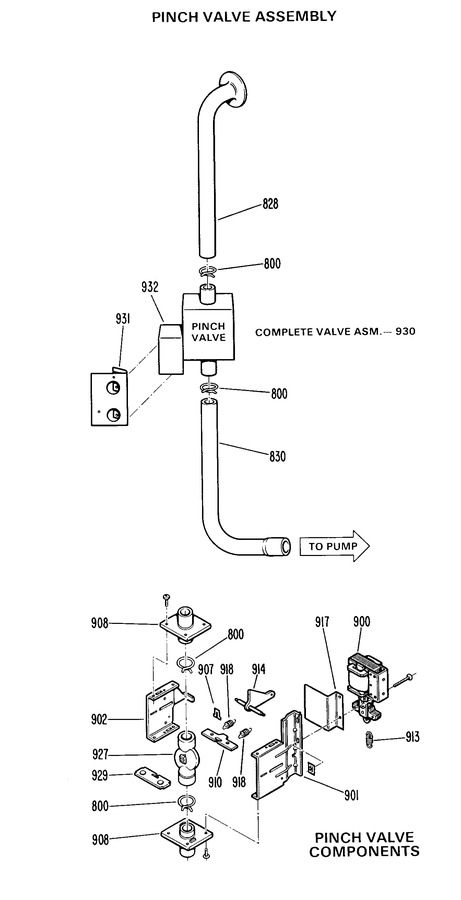

1 - Backsplash Assembly


2 - Tub,basket & Agitator


3 - Cabinet And Suspension Asm.


4 - Transmission - Complete Breakdown


5 - 2 - Speed


6 - Pinch Valve Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
800	WH1X2036		Clamp Hose M		Appelez-nous	-
828	WH41X289		Hose Recirc Upper		Appelez-nous	-
830	WH41X290		Hose Recirc Lower		Appelez-nous	-
900	WH12X839		Solenoid		Appelez-nous	-
901	WH1X2534		Plate Solenoid		Appelez-nous	-
902	WH1X2535		Plate Retainer		Appelez-nous	-
907	WH1X1699		Retainer		Appelez-nous	-
908	WH1X2537		Tube Hose Adpt		Appelez-nous	-
910	WH1X2538		Post End		Appelez-nous	-
913	WH1X2539		Spring		Appelez-nous	-
914	WH1X2540		Lever		Appelez-nous	-
917	WH1X1709		Shield		Appelez-nous	-
918	WH1X2542		Spring		Appelez-nous	-
927	WH8X250		Tube		Appelez-nous	-
929	WH1X2544		Post Stationary		Appelez-nous	-
930	WH12X837		Valve Asm Pinch		Appelez-nous	-
931	WH16X472		Bracket Valve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
