View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

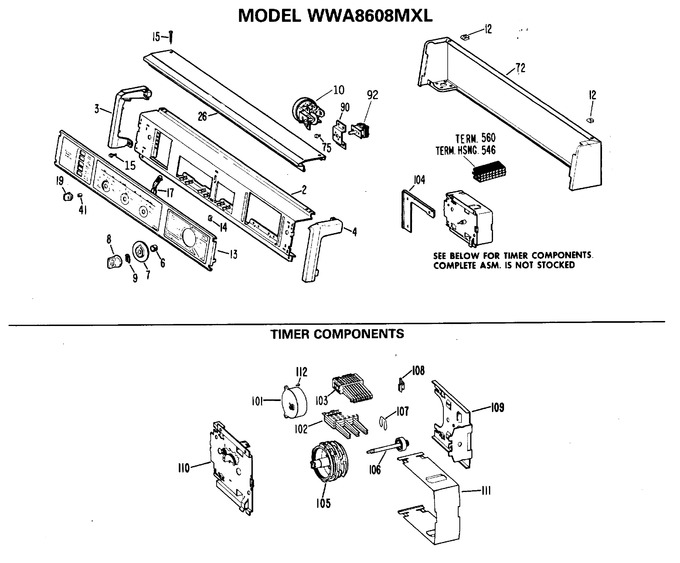

1 - Timer Components
2 - Tub, Basket & Agitator
3 - Cabinet And Suspension Asm.
4 - Transmission - Complete Breakdown
5 - 2-speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X883 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2199 | Trim End L.h. |
|
- | |||||
| 4 | WH42X2200 | Trim End R.h. |
|
- | |||||
| 6 | WH2X650 | Ring Comp |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Control Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X833 | Switch Asm Press Rotary |
|
- | |||||
| 12 | WB1X358 | Speednut |
|
- | |||||
| 13 | WH42X2224 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 15 | WH2X1122 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 17 | WH1X2008 | Clip Trim |
|
- | |||||
| 19 | WE1X1069 | Knob & Clip Asm |
|
- | |||||
| 26 | WH42X2169 | Trim Top |
|
- | |||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 70 | WH2X937 | Screw |
|
- | |||||
| 72 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 72 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 72 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 92 | WH12X725 | Switch Asm Rotary |
|
- | |||||
| 100 | WH12X990 | Timer Asm |
|
- | |||||
| 101 | WH12X633 | Motor Timer |
|
- | |||||
| 102 | WH12X632 | Switch Panel |
|
- | |||||
| 103 | WH12X631 | Switch Panel Timer Asm |
|
- | |||||
| 104 | WH16X474 | Bracket Timer Mtg |
|
- | |||||
| 105 | WH12X876 | Cam |
|
- | |||||
| 106 | WH1X2280 | Shaft Timer |
|
- | |||||
| 107 | WH1X2281 | Spring Detent |
|
- | |||||
| 108 | WH1X2282 | Linkage Line Switch |
|
- | |||||
| 109 | WH12X700 | Plate Back |
|
- | |||||
| 110 | WH12X699 | Plate Front |
|
- | |||||
| 111 | WH12X701 | Cover Dust |
|
- | |||||
| 112 | WH2X948 | Scr (timer Asm) |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 180 | WR1X1747 | Scr 10-12 A Hxw 7/8 S |
|
- | |||||
| 546 | WH12X871 | Housing Terminal Wh |
|
- | |||||
| 546 | WH12X870 | Housing Terminal Bk |
|
- | |||||
| 550 | WE2X281 | Scr 8-15 Hx 3/8 S |
|
- | |||||
| 560 | WD1X1434 | Terminal Special |
|
- | |||||
| 32767 | 49-9690 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-2518 | Mini Manual |
|
- | |||||
| 32767 | 31-2112 | Pm Instruction Instal |
|
- |
