SELECT A DIAGRAM

1 - Timer Components

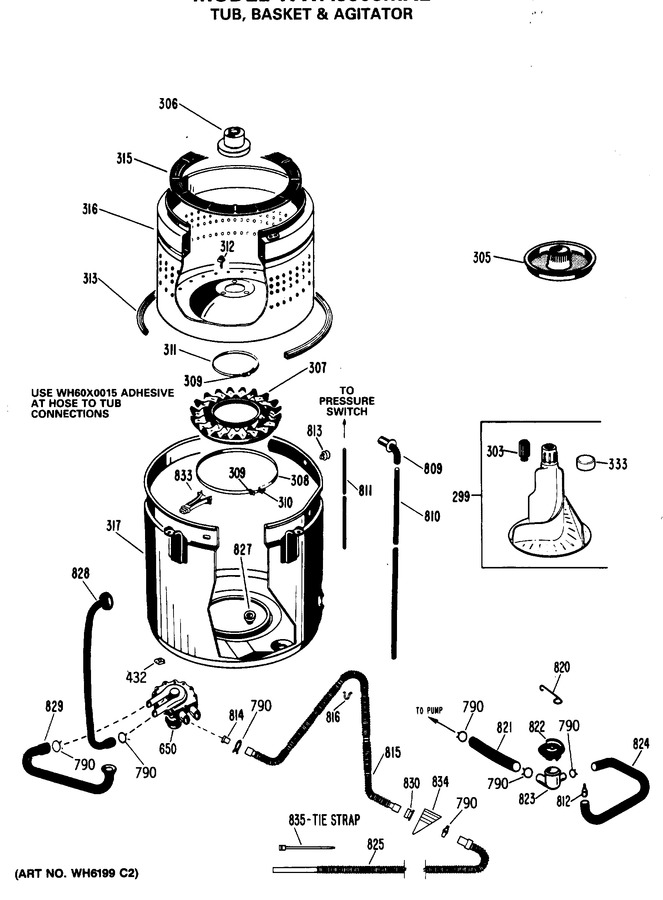

2 - Tub, Basket & Agitator


3 - Cabinet And Suspension Asm.


4 - Transmission - Complete Breakdown


5 - 2-speed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
299	WH43X102		Agitator & Coupling Asm				$ 320.03
303	WH1X1944		Coupling Asm Agitator		Appelez-nous	-
305	WH1X2269		Filter Recirc Wh		Appelez-nous	-
306	WH8X292		Boot Hub		Appelez-nous	-
307	WH8X246		Boot Mech		Appelez-nous	-
308	WH1X1580		Clamp Asm		Appelez-nous	-
309	WH2X935		Scr		Appelez-nous	-
310	WH2X936		Nut		Appelez-nous	-
311	WH1X1292		Clamp Asm				$ 6.25
312	WH2X681		Screw 5/16-18x7/8		Appelez-nous	-
313	WG04L01700		Gasket Tub   (Replaces: WH8X305)				$ 15.96
315	WH42X1062		Retainer Clothes				$ 25.01
316	WH45X99		Basket Asm Lg Capacity		Appelez-nous	-
317	WH45X116		Tub Asm		Appelez-nous	-
333	WH43X89		Cap Agitator				$ 56.86
432	WL02X0071		Nut		Appelez-nous	-
650	WH23X42		Pump Asm				$ 138.00
790	WH1X2036		Clamp Hose		Appelez-nous	-
809	WH8X253		Nozzle Overflow		Appelez-nous	-
810	WH1X1807		Tube Overflow		Appelez-nous	-
811	WH41X128		Hose Switch		Appelez-nous	-
812	WH1X1584		Hose Reducer		Appelez-nous	-
813	WH1X1980		Plug Tub		Appelez-nous	-
814	WH41X158		Adapter Hose		Appelez-nous	-
815	WH41X325		Hose Int Drain		Appelez-nous	-
816	WH16X372		Support Drain Hose		Appelez-nous	-
820	WH1X2435		Hanger Chamber Hose		Appelez-nous	-
821	WH41X116		Hose Drain Inlet		Appelez-nous	-
822	WH41X118		Grommet Pump Elbow		Appelez-nous	-
823	WH41X139		Elbow Pump		Appelez-nous	-
824	WH41X121		Hose Chamber		Appelez-nous	-
825	WH41X324		Hose Asm Ext				$ 28.16
827	WH1X1966		Coupling Tub Hose		Appelez-nous	-
829	WH41X140		Recirc Hose Inlet		Appelez-nous	-
830	WH1X2595		Grommet		Appelez-nous	-
833	WH41X143		Nozzle Recirc		Appelez-nous	-
834	WH16X493		Bracket Hose		Appelez-nous	-
835	WG04A00755		Strap   (Replaces: WH1X2594)				$ 19.06

    View Diagram in Separate Window       Print Part List
