1 - Backsplash & Coin Box Assembly


2 - Backsplash & Coin Box Assembly


3 - Cabinet Asm.

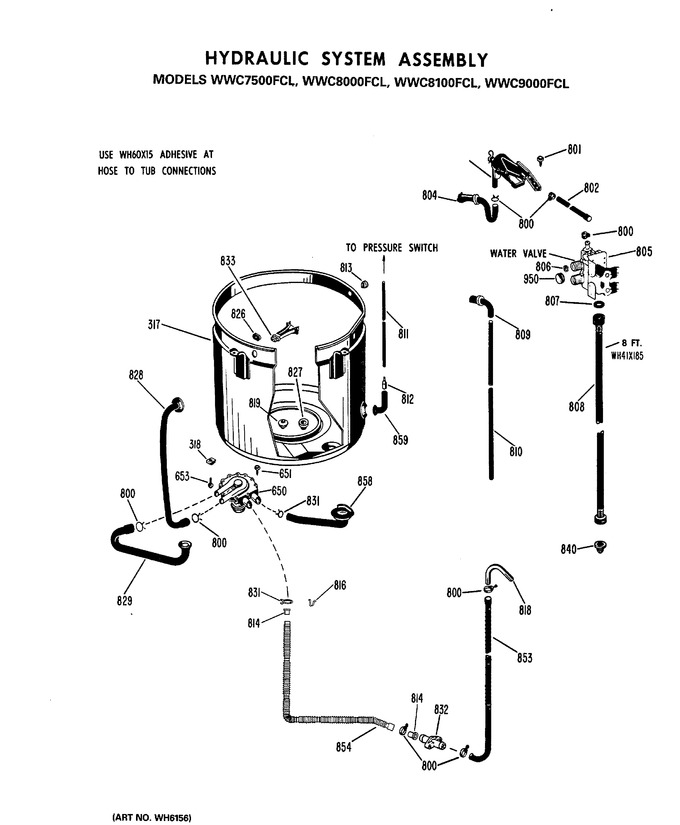

4 - Hydraulic System Assembly


5 - Agitator, Tub, & Pump Assembly


6 - Transmission - Complete Breakdown


7 - Component Group


8 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
317	WH45X69		Tub Asm. Std. Cap.		Appelez-nous	-
318	WL02X0071		Nut Sheet Metal		Appelez-nous	-
650	WH23X42		Pump Asm				$ 138.00
651	WH2X888		Scr 1/4-14 Bt Hxw 1 S		Appelez-nous	-
653	WH2X938		Scr 10-16 Ab Hxw 1 3/8 S		Appelez-nous	-
800	WH1X2036		Clamp Hose		Appelez-nous	-
801	WD2X5063		Scr 8-18 B Hxw 15/32 S		Appelez-nous	-
802	WH41X301		Hose Valve		Appelez-nous	-
804	WH41X170		Hose Inlet		Appelez-nous	-
805	CW151		Valve Water Asm   (Replaces: WH13X62)			Immediately	$ 43.63
806	WH1X1400		Screen		Appelez-nous	-
807	WH2X42		Washer		Appelez-nous	-
808	WH41X58		Hose Intake Asm		Appelez-nous	-
809	WH8X253		Nozzle Overflow		Appelez-nous	-
810	WH1X1807		Tube Overflow		Appelez-nous	-
811	WH41X299		Hose Switch		Appelez-nous	-
812	WH1X1584		Hose Reducer		Appelez-nous	-
813	WH1X1980		Plug Tub		Appelez-nous	-
814	WH41X158		Adapter Hose		Appelez-nous	-
816	WH16X372		Support Drain Hose		Appelez-nous	-
818	WH41X35		Nozzle-drain		Appelez-nous	-
827	WH1X1966		Coupling Tub Hose		Appelez-nous	-
828	WH41X296		Hose Recirculation		Appelez-nous	-
829	WH41X140		Hose Recirc Inlet		Appelez-nous	-
831	WH1X2036		Clamp Hose		Appelez-nous	-
832	WH41X315		Connector Drain Hose		Appelez-nous	-
833	WH41X302		Nozzle Recirc		Appelez-nous	-
840	WH1X2267		Screen & Washer		Appelez-nous	-
853	WH41X300		Hose & Spring Asm		Appelez-nous	-
854	WH41X316		Hose Drain		Appelez-nous	-
858	WH41X91		Hose Drain Inlet		Appelez-nous	-
859	WH41X130		Hose Chamber		Appelez-nous	-
950	WH1X1732		Ps Cap-hose		Appelez-nous	-
