SELECT A DIAGRAM

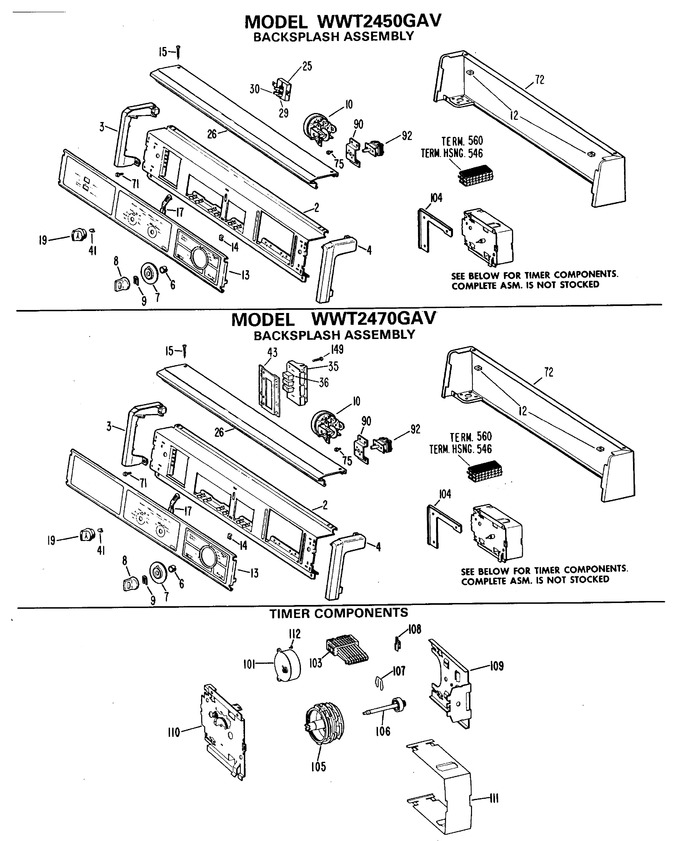

1 - Backsplash Assembly


2 - Cabinet Asm.


3 - Hydraulic System Assembly


4 - Agitator, Tub, & Pump Assembly


5 - Transmission-complete Breakdown


6 - 2-speed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WH42X2154		Escutcheon Asm		Appelez-nous	-
3	WE19X793		Trim End Lh		Appelez-nous	-
4	WE19X792		Trim End Rh		Appelez-nous	-
6	WH2X650		Ring Compression K		Appelez-nous	-
7	WH11X91		Dial Asm		Appelez-nous	-
8	WH1X2119		Knob Asm		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WH12X727		Switch Water Level Rot/3		Appelez-nous	-
12	WB1X358		Nut Sheet Metal		Appelez-nous	-
13	WH42X2155		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Ground		Appelez-nous	-
15	WZ04X0319		Scr 8-18 Ba Opr 1 7/16 S		Appelez-nous	-
17	WH1X2008		Clip Trim		Appelez-nous	-
19	WE1X1069		Knob Asm Switch		Appelez-nous	-
25	WH12X731		Switch Asm		Appelez-nous	-
26	WH42X2157		Trim Asm Top		Appelez-nous	-
29	WH1X1394		Pin		Appelez-nous	-
30	WE1X835		Key Switch		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
71	WH2X947		Scr 8-18 Ab Opr 3/4 S		Appelez-nous	-
72	WH46X276		Backsplash Wrapper Wh		Appelez-nous	-
72	WH46X278		Backsplash Wrapper Ad		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
90	WH16X434		Bracket Switch		Appelez-nous	-
92	WH12X725		Switch Asm Rotary		Appelez-nous	-
100	WH12X930		Timer Asm		Appelez-nous	-
101	WH12X643		Motor Timer		Appelez-nous	-
103	WH12X631		Switch Panel Timer Asm		Appelez-nous	-
104	WH16X433		Bracket Timer Mounting		Appelez-nous	-
105	WH11X115		Cam		Appelez-nous	-
106	WH1X2280		Shaft Timer		Appelez-nous	-
107	WH1X2281		Spring Detent		Appelez-nous	-
108	WH1X2282		Linkage Line Switch		Appelez-nous	-
109	WH12X700		Plate Back		Appelez-nous	-
110	WH12X699		Plate Front		Appelez-nous	-
111	WH12X701		Cover Dust		Appelez-nous	-
112	WH2X948		Scr (timer Asm)		Appelez-nous	-
489	WH1X2572		Sleeve Split		Appelez-nous	-
546	WH12X604		Housing Terminal		Appelez-nous	-
560	WH12X603		Terminal		Appelez-nous	-
32767	31-2413		Pm Instruction Instl		Appelez-nous	-
32767	WZ10X0018		Washer Flat		Appelez-nous	-
32767	WH46X188		Leg & Strap Asm		Appelez-nous	-
32767	WH4X91		Bearing Spacer		Appelez-nous	-
32767	WH2X820		Scr 1/4-14 Hx 3/4 S		Appelez-nous	-
32767	49-9604		Pm Manual Use & Care		Appelez-nous	-
32767	WH41X58		Hose Intake Asm		Appelez-nous	-
32767	WH2X935		Scr		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
