SELECT A DIAGRAM

1 - Backsplash Assembly

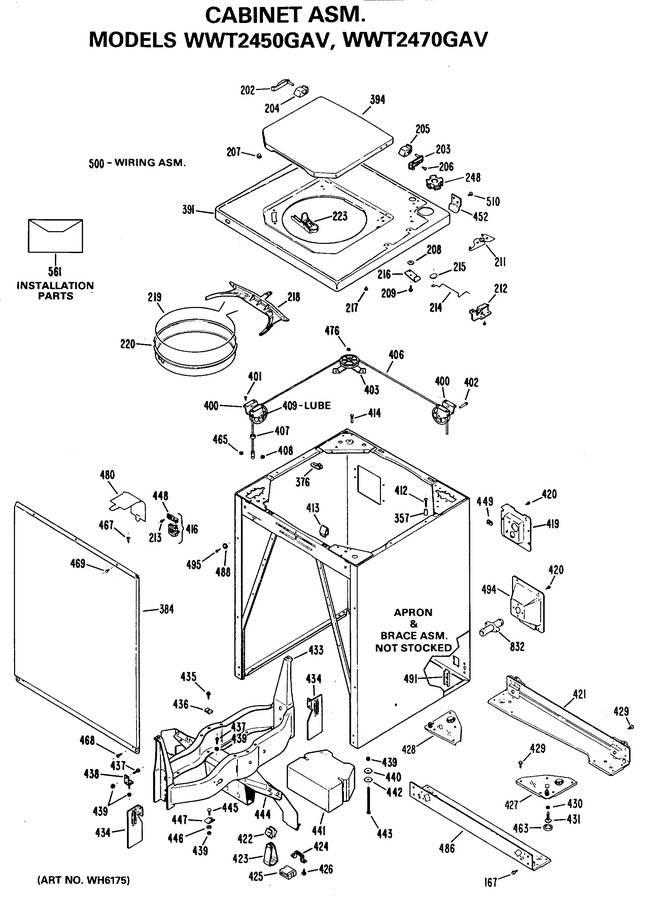

2 - Cabinet Asm.


3 - Hydraulic System Assembly


4 - Agitator, Tub, & Pump Assembly


5 - Transmission-complete Breakdown


6 - 2-speed


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
167	WE2X186		Scr 1/4-14 Ab Hxw 9/16 S		Appelez-nous	-
202	WH1X2085		Hinge Pivot L.h.		Appelez-nous	-
203	WH1X2222		Hinge Pivot R.h.		Appelez-nous	-
204	WH1X2087		Pad-hinge L.h.		Appelez-nous	-
205	WH1X2086		Pad-hinge R.h.		Appelez-nous	-
206	WH2X819		Scr 8-18 B Rt 1/2 Ss		Appelez-nous	-
207	WH1X1654		Bumper Lid		Appelez-nous	-
208	WH1X2088		Gasket		Appelez-nous	-
209	WH2X820		Scr 1/4-14 Bt Hxw 3/4 Ss		Appelez-nous	-
211	WE1X553		Gasket Insulating		Appelez-nous	-
212	WH12X494		Switch & Bracket Asm				$ 18.02
213	WZ04X0345		Scr 8-18 Ab Hx 3/8 S		Appelez-nous	-
214	WH1X2584		Actuator Sw		Appelez-nous	-
215	WG04L01749		Knob Actuator   (Replaces: WH1X2089)				$ 68.15
216	WH16X486		Brkt Sw		Appelez-nous	-
217	WH1X1480		Bumper Lid		Appelez-nous	-
218	WH16X413		Retainer Cover Shield		Appelez-nous	-
219	WH16X370		Wire		Appelez-nous	-
220	WH8X294		Shield Cover		Appelez-nous	-
223	WH1X2054		Spout Bleach Wh		Appelez-nous	-
223	WH1X2232		Spout Bleach Ad		Appelez-nous	-
357	WH1X2187		Stop Cover		Appelez-nous	-
384	WH46X277		Front Panel Wh		Appelez-nous	-
384	WH46X279		Front Panel Ad		Appelez-nous	-
391	WH44X1127		Cover Asm Ad		Appelez-nous	-
391	WH44X1126		Cover Asm Wh		Appelez-nous	-
394	WH44X976		Lid Ad		Appelez-nous	-
394	WH44X525		Lid Wh		Appelez-nous	-
400	WH7X40		Pulley & Bracket Asm		Appelez-nous	-
401	WH2X940		Scr 8-32 Tt Fl 1/2 S		Appelez-nous	-
402	WH1X1633		Pin Stop		Appelez-nous	-
403	WH7X41		Pulley And Brkt Asm		Appelez-nous	-
406	WH16X487		Cable Asm		Appelez-nous	-
407	WH1X2081		Cup Washer Black		Appelez-nous	-
407	WH1X2082		Cup Washer White		Appelez-nous	-
408	WH1X2060		Retainer Seat		Appelez-nous	-
409	WL39X0003		Lubricant		Appelez-nous	-
412	BUY LOCAL		Scr 10-12 A Rd 1 1/8 S		Appelez-nous	-
413	WH1X1923		Clip Cover		Appelez-nous	-
414	WH2X715		Scr 12-14 B Hx 3/4 S		Appelez-nous	-
416	WH12X235		Relay Asm		Appelez-nous	-
419	WH16X488		Brkt Valve		Appelez-nous	-
420	WH2X893		Scr 10-16 B Hxw 3/8 S		Appelez-nous	-
421	WH46X272		Rear Base Asm		Appelez-nous	-
422	WH1X2296		Pad Friction		Appelez-nous	-
423	WH1X1951		Yoke		Appelez-nous	-
424	WH1X1862		Clamp Yoke		Appelez-nous	-
425	WH1X1953		Cushion Yoke		Appelez-nous	-
426	WH2X882D		Scr 14-10 A Hx 3/4 S   (Replaces: WH2X882)		Appelez-nous	-
427	WH46X273		Base Brkt Asm R.		Appelez-nous	-
428	WH46X274		Base Brkt Asm L.		Appelez-nous	-
429	WH2X795		Scr 1/4-14 B Hx 3/8 S		Appelez-nous	-
430	WZ07X0040		Nut		Appelez-nous	-
431	WH1X209		Scr 3/8-24 Lvl 2 S		Appelez-nous	-
433	WH17X88		Suspension Asm		Appelez-nous	-
434	WH16X364		Damping Fin Std. Cap.		Appelez-nous	-
435	WH2X1056		Scr 1/4-20 Ca Hx 1 7/16s		Appelez-nous	-
436	WH2X739		Nut Sheet Metal		Appelez-nous	-
437	WZ02X0514		Scr 1/4-20 M Hx 13/16 S		Appelez-nous	-
438	WH16X405		Hanger Asm Motor		Appelez-nous	-
439	WH2X707		Nut		Appelez-nous	-
440	WH2X810		Spacer		Appelez-nous	-
441	WH1X2057		Counterweight		Appelez-nous	-
442	WH2X811		Washer Flat		Appelez-nous	-
443	WH2X812		Scr 1/4-20 Hx 5 S		Appelez-nous	-
444	WH16X361		Damping Fin & Supt 14#		Appelez-nous	-
445	WH2X798		Scr 1/4-20 M Rd 11/16 S		Appelez-nous	-
446	WE2X279		Washer Flat		Appelez-nous	-
447	WH2X801		Retainer Bolt		Appelez-nous	-
448	WH1X1998		Bracket		Appelez-nous	-
449	WH2X896		Clip		Appelez-nous	-
452	WH16X482		Hinge Cover		Appelez-nous	-
463	34318		Cap Leveling Screw K   (Replaces: WH1X484)			Immediately	$ 5.27
465	WZ13X0024		Ring E		Appelez-nous	-
468	WH2X1112		Scr 10-16 Ab T 5/8 S Nyw		Appelez-nous	-
476	WZ13X0031		Ring E		Appelez-nous	-
486	WH42X275		Front Base Flange		Appelez-nous	-
488	WH1X2564		Spacer Front		Appelez-nous	-
491	WH2X1109		Nut Strip		Appelez-nous	-
495	WR1X1569		Screw		Appelez-nous	-
510	WE2X263		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
561	WH49X136		Pm Envelope Asm Install		Appelez-nous	-
832	WH41X317		Connector Drain Hose		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
