View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

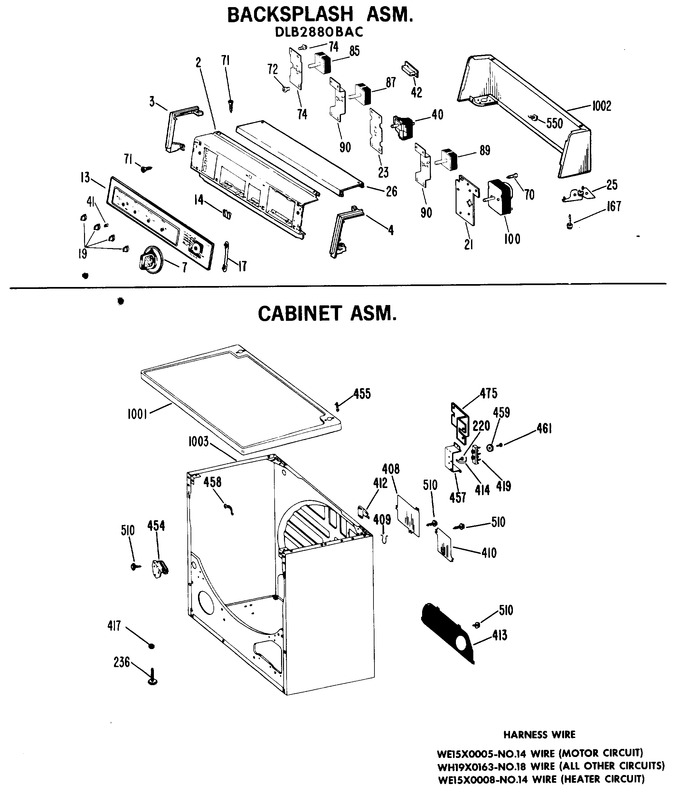

1 - Backsplash Asm.
2 - Cabinet Front Asm.
3 - Blower & Drive Asm.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X733 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2005 | Trim End Lh |
|
- | |||||
| 4 | WH42X2006 | Trim End Rh |
|
- | |||||
| 7 | WE1X982 | Knob Asm |
|
- | |||||
| 13 | WE19X794 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 17 | WE1X577 | Clip Trim |
|
- | |||||
| 19 | WH1X2274 | Knob Clip Asm |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 23 | WH16X401 | Bracket Switch |
|
- | |||||
| 25 | WE1X926 | Gasket-housing |
|
- | |||||
| 26 | WE19X770 | Trim-top |
|
- | |||||
| 40 | WE1X916 | Buzzer (signal) |
|
- | |||||
| 41 | WE1X5201 | Clip Knob |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 42 | WE4X499 | Resistor Board |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 71 | WH2X947 | Screw |
|
- | |||||
| 72 | WH2X5137 | Screw 8-32 X 5/32 Pan |
|
- | |||||
| 74 | WE13X137 | Bracket Switch |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 85 | WE4X603 | Switch Asm-rotary 4 Pos |
|
- | |||||
| 87 | WE4X605 | Switch Asm Rotary |
|
- | |||||
| 89 | WE4X618 | Switch Asm-rotary Start |
|
- | |||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 100 | WE4X619 | Timer Asm |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 220 | WE2X275 | Screw 8-18 X 1/2 Hex |
|
- | |||||
| 236 | WG04L00345 | Scr 5/16-24 Lvl 2 S (Replaces: WE2X229) |
|
Immediately | $ 4.04 | ||||
| 408 | WE1X754 | Cover-bearing |
|
- | |||||
| 409 | WE1X353 | Hanger-cable |
|
- | |||||
| 410 | WE1X755 | Cover-terminal |
|
- | |||||
| 412 | WH1X1923 | Clip Cover |
|
- | |||||
| 413 | WE14X103 | Panel-access |
|
- | |||||
| 414 | WE1X339 | Ground Strap |
|
- | |||||
| 417 | WZ07X0038 | Nut |
|
- | |||||
| 418 | WZ07X0031 | Nut |
|
- | |||||
| 419 | WE4X168 | Block Terminal |
|
$ 29.10 | |||||
| 420 | WH2X893 | Scr 10-16 Hx 3/8 S |
|
- | |||||
| 454 | WE13X93 | Slide Asm |
|
- | |||||
| 455 | WH1X1946 | Strap Cover |
|
- | |||||
| 457 | WE13X119 | Bracket-terminal Block |
|
- | |||||
| 458 | WE1X408 | Clip Cable |
|
- | |||||
| 459 | WE2X92 | Washer Cup |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 475 | WH16X317 | Shield |
|
- | |||||
| 502 | WE2X277 | Screw 8-40 X 1/2 Hex |
|
- | |||||
| 510 | WE2X263 | Screw 10-16x1/2 Hxw |
|
- | |||||
| 534 | WE2X153 | Screw |
|
- | |||||
| 545 | WB2X817 | Terminal 1/4" Female |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hwx 3/8 S |
|
- | |||||
| 1001 | WE20X586 | Weld Asm-cover Ha |
|
- | |||||
| 1001 | WE20X582 | Weld Asm-cover Wh |
|
- | |||||
| 1001 | WE20X583 | Weld Asm-cover Ad |
|
- | |||||
| 1001 | WE20X584 | Weld Asm-cover Cf |
|
- | |||||
| 1001 | WE20X585 | Weld Asm-cover Fa |
|
- | |||||
| 1002 | WE19X441 | Backsplash Wrapper - Whi |
|
- | |||||
| 1002 | WE19X703 | Backsplash Wrapper Cf |
|
- | |||||
| 1002 | WE19X701 | Backsplash Wrapper Fa |
|
- | |||||
| 1002 | WE19X702 | Backsplash Wrapper Ha |
|
- | |||||
| 1002 | WE19X704 | Backsplash Wrapper Ad |
|
- | |||||
| 1003 | WE20X507 | Base - Wrapper Asm Wh |
|
- | |||||
| 1003 | WE20X536 | Base - Wrapper Asm Cf |
|
- | |||||
| 1003 | WE20X534 | Base - Wrapper Asm Fa |
|
- | |||||
| 1003 | WE20X537 | Base - Wrapper Asm Ad |
|
- | |||||
| 1003 | WE20X535 | Base - Wrapper Asm Ha |
|
- | |||||
| 9999 | 39-9223 | Use And Care Book |
|
- | |||||
| 9999 | 39-9228 | Instruction Sheet |
|
- | |||||
| 9999 | 49-9043 | Installation Instr |
|
- |
