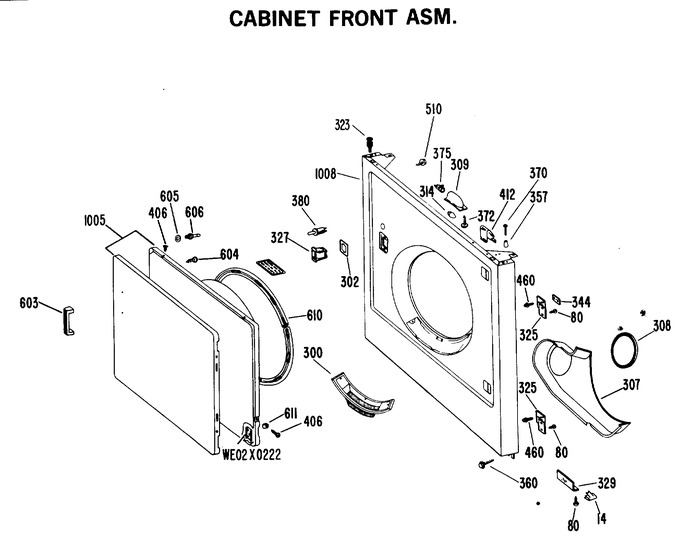

1 - Backsplash Asm.
2 - Cabinet Front Asm.
3 - Blower & Drive Asm.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | WE1X762 | Clip-ground |
|
- | |||||
| 80 | WL02X0139 | Screw 8-18 X 3/8 Hex |
|
- | |||||
| 300 | WE18X36 | Lint Filter Asm |
|
- | |||||
| 302 | WE1X888 | Plate-latch |
|
- | |||||
| 307 | WE14X104 | Duct-trap |
|
- | |||||
| 308 | WE9X42 | Seal |
|
- | |||||
| 309 | WE1X427 | Housing-lamp |
|
- | |||||
| 314 | WX12X79 | Lamp K |
|
- | |||||
| 323 | WH1X5122 | Grommet-cabinet A |
|
- | |||||
| 325 | WE1X901 | Hinge |
|
- | |||||
| 327 | 5366021400 | Latch (Replaces: WE1X903) |
|
Immediately | $ 62.21 | ||||
| 329 | WE1X748 | Clamp |
|
- | |||||
| 344 | WH2X5002 | Nut-twin Speed A |
|
- | |||||
| 357 | WH1X2187 | Stop-cover |
|
- | |||||
| 360 | 10-16X3/4 | Screw 10-16 X 13/16 Hex |
|
- | |||||
| 370 | 10-18X114 | Screw 10-12 X 1 1/4 Rd |
|
- | |||||
| 372 | WE2X270 | Screw 8-15 X 1/2 Truss |
|
- | |||||
| 375 | WE4X185 | Socket Asm |
|
- | |||||
| 380 | WG03L00054 | Switch Asm-push Button (Replaces: WE4X197) |
|
Immediately | $ 40.27 | ||||
| 406 | WZ04X0236 | Screw 8-15 X 1/2 Oval |
|
- | |||||
| 412 | WH1X1923 | Clip-cover |
|
- | |||||
| 460 | 10-16X1/2 | Screw 10-16 X 1/2 Hex |
|
- | |||||
| 460 | WZ04X0264 | Screw 10-16 X 7/8 Hex |
|
- | |||||
| 510 | WE2X263 | Screw 10-16 X 1/2 Hex |
|
- | |||||
| 603 | WE1X257 | Handle-door |
|
- | |||||
| 604 | WE2X227 | Screw 10-24 X 13/16 Trus |
|
- | |||||
| 605 | WZ10X0016 | Washer-flat |
|
- | |||||
| 606 | WE1X890 | Strike |
|
- | |||||
| 610 | WE9X41 | Gasket-door |
|
- | |||||
| 611 | WE2X224 | Clip |
|
- | |||||
| 1005 | WE10X236 | Door Asm Wh |
|
- | |||||
| 1005 | WE10X245 | Door Asm Fa |
|
- | |||||
| 1005 | WE10X246 | Door Asm Ha |
|
- | |||||
| 1005 | WE10X247 | Door Asm Cf |
|
- | |||||
| 1005 | WE10X248 | Door Asm Ad |
|
- | |||||
| 1008 | WE20X541 | Cabinet Front Ad |
|
- | |||||
| 1008 | WE20X518 | Cabinet Front Wh |
|
- | |||||
| 1008 | WE20X538 | Cabinet Front Fa |
|
- | |||||
| 1008 | WE20X539 | Cabinet Front Ha |
|
- | |||||
| 1008 | WE20X540 | Cabinet Front Cf |
|
- |
