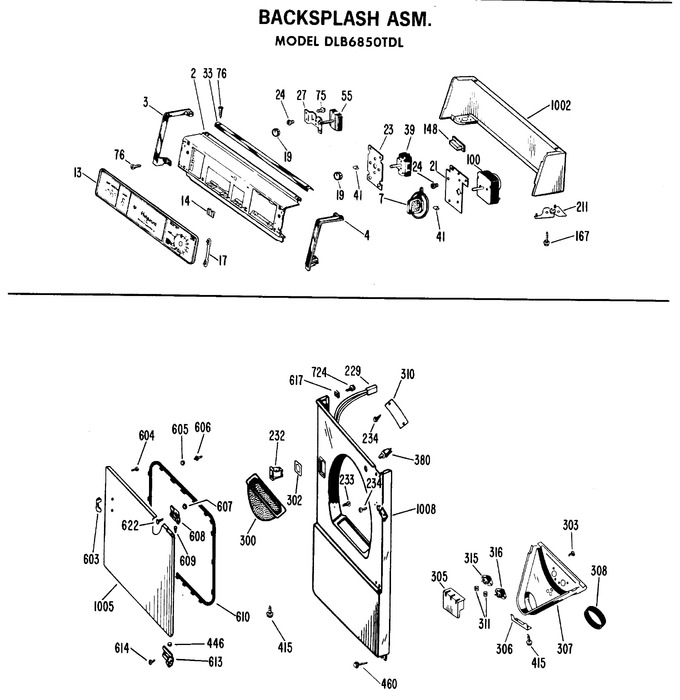

1 - Backsplash
2 - Cabinet Asm. (electric)
3 - Drum & Heater Assembly (electric)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X974 | Trim-end L.h. |
|
- | |||||
| 4 | WH42X975 | Trim-end R.h. |
|
- | |||||
| 7 | WE1X957 | Knob And Clip Asm |
|
- | |||||
| 13 | WE19X739 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 17 | WE1X577 | Clip Trim |
|
- | |||||
| 19 | WH1X2157 | Knob Asm |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 23 | WH16X401 | Bracket Switch |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 27 | WH16X402 | Bracket Switch |
|
- | |||||
| 33 | WE19X310 | Trim Rear |
|
- | |||||
| 39 | WE4X463 | Switch-safety Start |
|
- | |||||
| 41 | WE1X5201 | Clip Knob |
|
- | |||||
| 55 | WE4X576 | Switch-selector |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 76 | WZ05X0120 | Screw |
|
- | |||||
| 100 | WE4X563 | Timer Asm |
|
- | |||||
| 148 | WE4X499 | Resistor Board |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 211 | WE1X553 | Gasket Insulating |
|
- | |||||
| 229 | WH12X183 | Housing Receptacle |
|
- | |||||
| 232 | 5366021400 | Latch (Replaces: WE1X903) |
|
Immediately | $ 62.21 | ||||
| 233 | WZ04X0236 | Scr |
|
- | |||||
| 234 | WE2X154 | Palnut |
|
$ 55.13 | |||||
| 243 | WZ05X0155 | Scr 8-18 Ab Hx 3/8 Ss |
|
- | |||||
| 300 | WG04F00431 | Filter Asm Lint (Replaces: WE18X26) |
|
Immediately | $ 26.73 | ||||
| 302 | WE1X888 | Plate-latch |
|
- | |||||
| 303 | WE2X270 | Scr 8-15 A Tr 1/2 S |
|
- | |||||
| 305 | WE1X944 | Cover Thermostat |
|
- | |||||
| 306 | WE1X409 | Clamp |
|
- | |||||
| 307 | WE14X118 | Duct-trap |
|
- | |||||
| 308 | WE9X38 | Seal Asm Felt |
|
$ 58.83 | |||||
| 310 | WE1X446 | Plate Closure |
|
- | |||||
| 311 | WE2X192 | Clip |
|
- | |||||
| 315 | WE4X571 | Thermostat L145-15 |
|
- | |||||
| 316 | WE4X578 | Thermostat L135-15 |
|
- | |||||
| 380 | WG03L00054 | Switch Asm Pb Door (Replaces: WE4X197) |
|
Immediately | $ 40.27 | ||||
| 406 | WZ04X0236 | Scr |
|
- | |||||
| 415 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 446 | WE2X279 | Washer |
|
- | |||||
| 460 | WZ04X0264 | Scr 10-16 Ab Hxw 1 S |
|
- | |||||
| 603 | WE1X257 | Handle Door |
|
- | |||||
| 604 | WE2X227 | Scr 10-24 T 13/16 |
|
- | |||||
| 605 | WZ10X0016 | Washer |
|
- | |||||
| 606 | WE1X890 | Strike |
|
- | |||||
| 607 | WE2X110 | Nut Sheet Metal K |
|
- | |||||
| 608 | WE1X345 | Bracket Asm Hinge |
|
- | |||||
| 609 | WE1X404 | Bushing Hinge |
|
- | |||||
| 610 | WE9X28 | Gasket Door |
|
- | |||||
| 613 | WE1X344 | Bracket Asm Hinge |
|
- | |||||
| 614 | WZ04X0257 | Scr 10-32 Tt T 3/8 S |
|
- | |||||
| 617 | WH2X782 | Nut Clip |
|
- | |||||
| 622 | WE2X177 | Scr 10-32 M Rd 1/2 S |
|
- | |||||
| 724 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 1002 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 1002 | WH46X214 | Weld Asm-housing Fa |
|
- | |||||
| 1002 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 1002 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 1002 | WH46X213 | Weld Asm-housing Cf |
|
- | |||||
| 1005 | WE10X258 | Door Asm Wh |
|
- | |||||
| 1005 | WE10X262 | Door Asm Ad |
|
- | |||||
| 1005 | WE10X260 | Door Asm Ha |
|
- | |||||
| 1005 | WE10X259 | Door Asm Fa |
|
- | |||||
| 1005 | WE10X261 | Door Asm Cf |
|
- | |||||
| 1008 | WE20X563 | Cabinet Front Asm Fa |
|
- | |||||
| 1008 | WE20X565 | Weld Asm Cab Front Cf |
|
- | |||||
| 1008 | WE20X566 | Cabinet Front Asm Ad |
|
- | |||||
| 1008 | WE20X496 | Cabinet Front Asm Wh |
|
- | |||||
| 1008 | WE20X564 | Cabinet Front Asm Ha |
|
- | |||||
| 9999 | 39-9186 | Use And Care Book |
|
- | |||||
| 9999 | 39-9172 | Instruction Sheet |
|
- | |||||
| 9999 | 49-9033 | Installation Instr 052 |
|
- |
