SELECT A DIAGRAM

1 - Backsplash

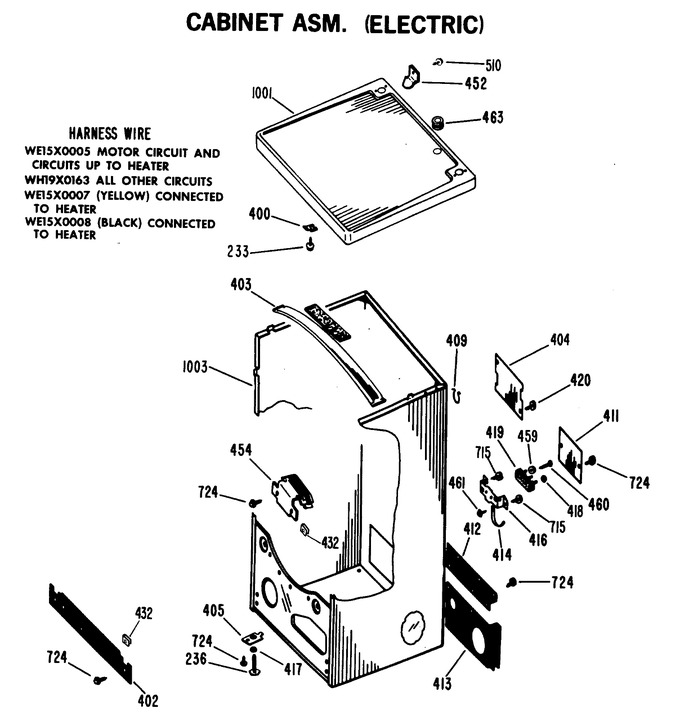

2 - Cabinet Asm. (electric)


3 - Drum & Heater Assembly (electric)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
233	WZ04X0236		Screw-type A		Appelez-nous	-
236	WG04L00345		Screw-mach Leveling   (Replaces: WE2X229)			Immediately	$ 4.04
400	WE2X134		Clip		Appelez-nous	-
402	WE20X347		Toeboard		Appelez-nous	-
403	WE14X37		Brace-cabinet Top		Appelez-nous	-
404	WE1X425		Plate		Appelez-nous	-
405	WE1X468		Plate-leveling Screw		Appelez-nous	-
409	WE1X353		Hanger-cable		Appelez-nous	-
411	WE1X426		Knockout-cabinet Wrapper		Appelez-nous	-
412	WE14X54		Bracket-recess		Appelez-nous	-
413	WE14X55		Box Asm-recess		Appelez-nous	-
414	WE1X339		Strap-ground		Appelez-nous	-
416	WE1X623		Bracket-terminal Block		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
418	WZ07X0031		Nut		Appelez-nous	-
419	WE4X168		Block-terminal				$ 29.10
420	WH2X893		Screw-type B		Appelez-nous	-
432	WE2X282		Nut Clip		Appelez-nous	-
452	WH16X431		Bracket-hinge		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
459	WE2X92		Washer-cup		Appelez-nous	-
460	WZ04X0264		Screw-type Ab		Appelez-nous	-
461	WZ05X0158		Screw-type D		Appelez-nous	-
463	WE1X956		Sleeve-split		Appelez-nous	-
510	WE2X263		Screw-type Ab		Appelez-nous	-
715	WD2X5063		Screw-type Bt		Appelez-nous	-
724	WZ04X0288		Screw-type Ab		Appelez-nous	-
1001	WE20X530		Cabinet Top Wh		Appelez-nous	-
1001	WE20X555		Cabinet Top Fa		Appelez-nous	-
1001	WE20X556		Cabinet Top Ha		Appelez-nous	-
1001	WE20X557		Cabinet Top Cf		Appelez-nous	-
1001	WE20X558		Cabinet Top Ad		Appelez-nous	-
1003	WE20X562		Base & Wrapper Asm Ad		Appelez-nous	-
1003	WE20X396		Base & Wrapper Asm Wh		Appelez-nous	-
1003	WE20X559		Base & Wrapper Asm Fa		Appelez-nous	-
1003	WE20X560		Base & Wrapper Asm Ha		Appelez-nous	-
1003	WE20X561		Base & Wrapper Asm Cf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
