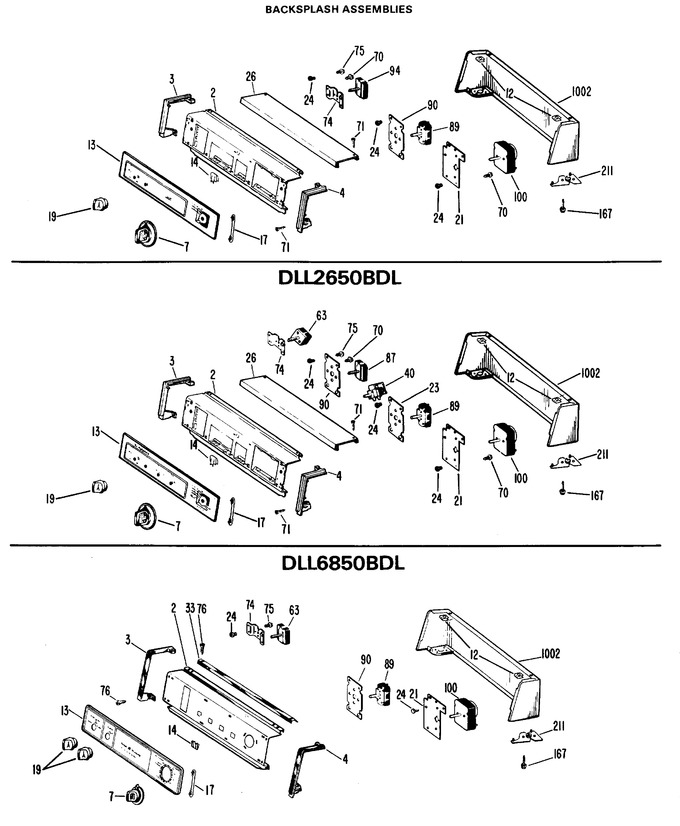

1 - Component Group
2 - Cabinet Asm.
3 - Drum & Duct Asm.
4 - Cabinet Front Asm.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2005 | Trim End Lh |
|
- | |||||
| 4 | WH42X2006 | Trim End Rh |
|
- | |||||
| 7 | WE1X982 | Knob Asm |
|
- | |||||
| 12 | WB1X358 | Speednut |
|
- | |||||
| 13 | WE19X805 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Grounding |
|
- | |||||
| 17 | WE1X577 | Clip Trim |
|
- | |||||
| 19 | WH1X2274 | Knob Clip Asm |
|
- | |||||
| 21 | WE13X76 | Plate Control |
|
- | |||||
| 23 | WH16X401 | Bracket Switch |
|
- | |||||
| 24 | WZ02X0510 | Screw |
|
- | |||||
| 26 | WH42X2004 | Trim Top |
|
- | |||||
| 40 | WE1X916 | Buzzer (signal) |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 63 | WE4X606 | Switch Asm Rotary |
|
- | |||||
| 70 | WH2X937 | Screw-type A |
|
- | |||||
| 71 | WH2X947 | Screw |
|
- | |||||
| 74 | WE13X137 | Bracket Switch |
|
- | |||||
| 75 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 87 | WE4X605 | Switch Asm Rotary |
|
- | |||||
| 89 | WE4X679 | Switch Rotary Start |
|
- | |||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 100 | WE4X620 | Timer Asm |
|
- | |||||
| 167 | WE2X186 | Screw |
|
- | |||||
| 211 | WE1X553 | Gasket Insulating |
|
- | |||||
| 232 | 5366021400 | Latch Door (Replaces: WE1X1032) |
|
Immediately | $ 62.21 | ||||
| 309 | WE1X427 | Housing Lamp |
|
- | |||||
| 314 | WX12X1456 | Lamp K |
|
- | |||||
| 375 | WE4X185 | Socket Asm |
|
- | |||||
| 555 | WB17X5053 | Terminal |
|
- | |||||
| 559 | WH12X538 | Housing Terminal |
|
- | |||||
| 725 | WH12X237 | Housing Terminal |
|
- | |||||
| 727 | WH1X1719 | Terminal |
|
- | |||||
| 1002 | WH46X212 | Weld Asm-housing Ad |
|
- | |||||
| 1002 | WH46X214 | Weld Asm-housing Fa |
|
- | |||||
| 1002 | WH46X215 | Weld Asm-housing Ha |
|
- | |||||
| 1002 | WH46X248 | Backsplash Wrapper Sl |
|
- | |||||
| 1002 | WH46X211 | Weld Asm-housing Wh |
|
- | |||||
| 1002 | WE46X247 | Backsplash Wrapper Ds |
|
- | |||||
| 1068 | WE20X567 | Cabinet Front Asm Fa |
|
- | |||||
| 9999 | 39-9226-1 | Pm Instruction Sheet |
|
- | |||||
| 9999 | 39-9236 | Pm Use & Care Book |
|
- | |||||
| 9999 | 49-9060 | Pm Instruction Instal |
|
- |
