SELECT A DIAGRAM

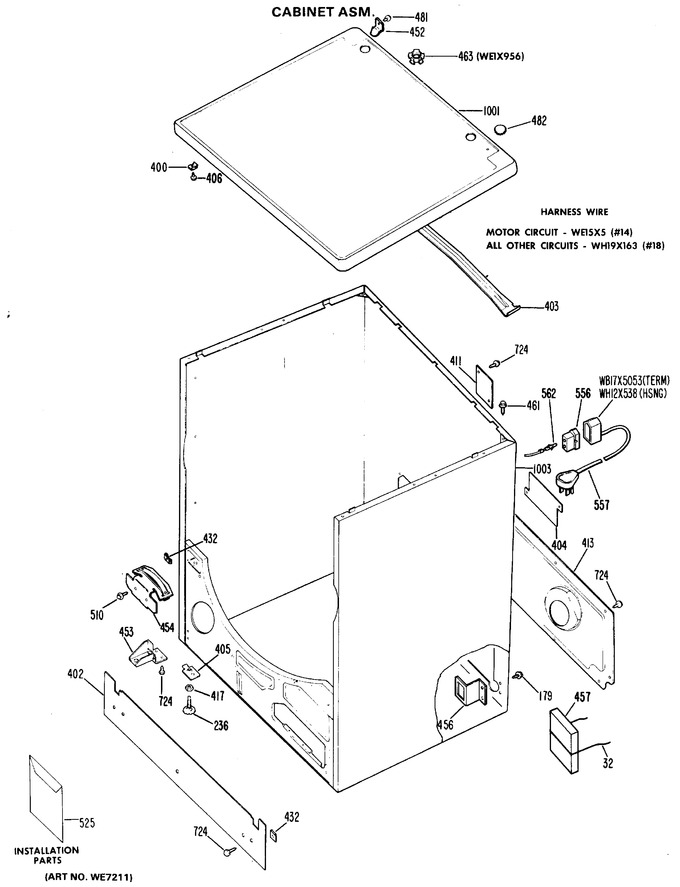

1 - Component Group


2 - Cabinet Asm.


3 - Drum & Duct Asm.


4 - Cabinet Front Asm.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	WH16X370		Strap-steel		Appelez-nous	-
179	WZ04X0288		Scr 10-16 Bt Hxw 1/2 S		Appelez-nous	-
236	WG04L00345		Scr 5/16-24x2 Lvl 3/16 S   (Replaces: WE2X229)			Immediately	$ 4.04
400	WE2X134		Clip		Appelez-nous	-
402	WE20X347		Toeboard		Appelez-nous	-
403	WE14X37		Brace-cabinet Top		Appelez-nous	-
404	WE1X425		Plate		Appelez-nous	-
405	WE1X468		Plate-leveling Screw		Appelez-nous	-
406	WZ04X0236		Scr 8-15 A Ovr 1/2 S		Appelez-nous	-
411	WE1X426		Knockout-cabinet Wrapper		Appelez-nous	-
413	WE14X66		Box-recess		Appelez-nous	-
417	WZ07X0038		Nut		Appelez-nous	-
432	WL02X0071		Nut-cup		Appelez-nous	-
452	WH16X431		Bracket-hinge		Appelez-nous	-
453	WE13X80		Support-leveling Screw		Appelez-nous	-
454	WE25X60		Slide Asm				$ 15.15
456	WE1X617		Clamp-pipe		Appelez-nous	-
457	WE1X937		Counterweight-dryer		Appelez-nous	-
461	WZ05X0158		Scr 8-32 D Hxw 3/8 S		Appelez-nous	-
481	WH2X967		Scr 12-14 Ab Hxw 1/2 S		Appelez-nous	-
510	WE2X263		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
525	WE25X98		Pack Asm Installation		Appelez-nous	-
556	WH12X497		Housing-terminal		Appelez-nous	-
557	WE5X31		Cordset Asm		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
724	WZ04X0288		Scr 10-16 Ab Hxw 1/2 S		Appelez-nous	-
1001	WE20X664		Weld Asm-cover Wh		Appelez-nous	-
1001	WE20X665		Weld Asm-cover Ad		Appelez-nous	-
1001	WE20X666		Weld Asm-cover Ha		Appelez-nous	-
1001	WE20X667		Weld Asm-cover Fa		Appelez-nous	-
1001	WE20X683		Weld Asm-cover Ds		Appelez-nous	-
1001	WE20X684		Weld Asm-cover Sl		Appelez-nous	-
1003	WE20X671		Cabinet Asm Ha		Appelez-nous	-
1003	WE20X670		Cabinet Asm Ad		Appelez-nous	-
1003	WE20X689		Cabinet Asm Ds		Appelez-nous	-
1003	WE20X672		Cabinet Asm Wh		Appelez-nous	-
1003	WE20X690		Casinet Asm Sl		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
