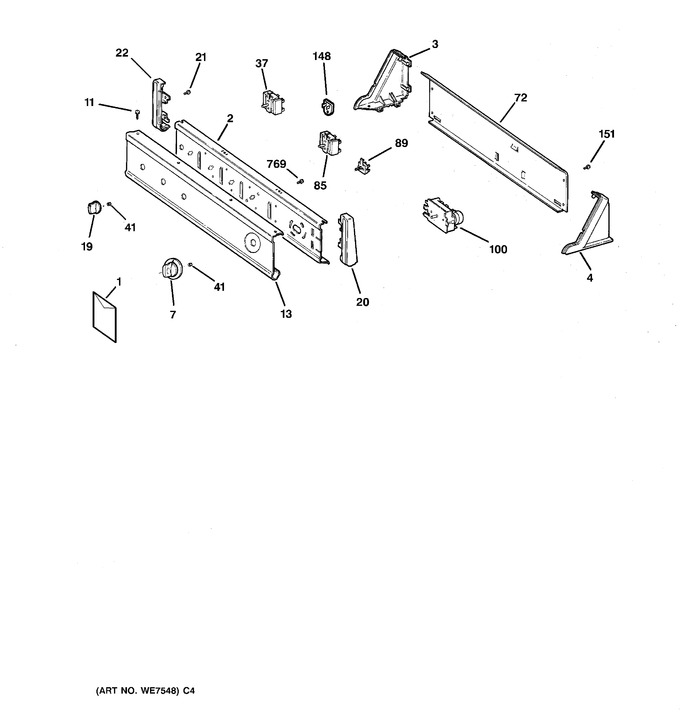

1 - Control Assembly
2 - Cabinet & Top
3 - Front Panel & Door
4 - Drum, Heater Asm., Blower & Drive Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-15052 | Sheet Mini Manual |
|
- | |||||
| 1 | 39-9358 | Manual Use & Care |
|
- | |||||
| 1 | 31-2812 | Install Instructions |
|
- | |||||
| 2 | WH46X10033 | Support Switch |
|
- | |||||
| 3 | WE19X1002 | End Cap Lh Ad |
|
- | |||||
| 4 | WE19X1003 | End Cap Rh Ad |
|
- | |||||
| 7 | WE01X10028 | Knob/dial/clip Timer Ad |
|
- | |||||
| 11 | WE1X1270 | Scr 8-18 Abflt 5/8 Sn Ad |
|
- | |||||
| 13 | WE19X10014 | Switch Trim Asm |
|
- | |||||
| 19 | WE01X10001 | Knob & Clip Asm |
|
- | |||||
| 20 | WE19X10009 | Cap Support Switch Lh |
|
- | |||||
| 20 | WE19X10010 | Cap Support Switch Rh |
|
- | |||||
| 21 | WH2X1185 | Scr 8-18 B Ihw 5/16 S |
|
- | |||||
| 37 | WG04F03522 | Switch Rotary Start (Replaces: WE4X881) |
|
Immediately | $ 110.98 | ||||
| 41 | WE1X980 | U Clip |
|
- | |||||
| 72 | WE20X814 | Panel Back |
|
- | |||||
| 85 | WE4X873 | Switch Rotary Temp - 4 |
|
- | |||||
| 89 | WE4X874 | Switch Rotary - 2 |
|
- | |||||
| 100 | WE4X870 | Timer Dryer |
|
- | |||||
| 148 | WE04X10029 | Resistor |
|
- | |||||
| 151 | WH2X1210 | Scr 8-18 B Ihw 1/2 S N |
|
- | |||||
| 769 | WB1X500 | Scr 8-18 B Hxw 1/4 S |
|
- |
