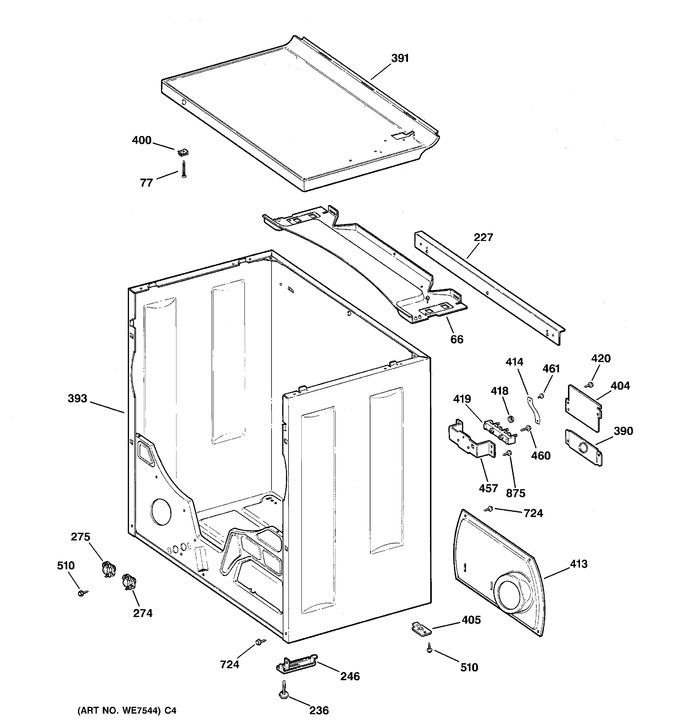

SELECT A DIAGRAM

1 - Control Assembly


2 - Cabinet & Top


3 - Front Panel & Door


4 - Drum, Heater Asm., Blower & Drive Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
66	WE19X1001		Cover Bottom		Appelez-nous	-
77	WE2X377		Scr 8-18 Ab Ovp 1.75 S		Appelez-nous	-
227	WE20X813		Rail Back		Appelez-nous	-
236	WG04L00345		Screw Levelling 5/16-24   (Replaces: WE2X355)			Immediately	$ 4.04
246	WE1X1190		Foot Leveling Screw		Appelez-nous	-
274	WE4X811		T'stat High Cntrl 135-15		Appelez-nous	-
275	WE4X812		T'stat Low Cntrl 125-15		Appelez-nous	-
390	WE1X1174		Plate		Appelez-nous	-
391	WE20X815		Top Ad		Appelez-nous	-
393	WE20X812		Base Wrapper Asm Ad		Appelez-nous	-
400	WE2X134		Clip		Appelez-nous	-
404	WE1X425		Plate		Appelez-nous	-
405	WE1X468		Plate Leveling Screw		Appelez-nous	-
413	WE14X212		Panel Access		Appelez-nous	-
414	WE1X339		Ground Strap		Appelez-nous	-
418	WZ07X0031		Nut		Appelez-nous	-
419	WE4X168		Block Terminal				$ 29.10
420	WH2X893		Scr 10-16 Hx 3/8 S		Appelez-nous	-
457	WE13X162		Bracket Terminal Block		Appelez-nous	-
460	WZ04X0264		Scr 10-16 Ab Hxw 1 S		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
510	WE2X263		Screw 10-16x1/2 Hxw		Appelez-nous	-
724	WZ04X0288		Scr 10-16 Ab Hxw 1/2s #8		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.97
