SELECT A DIAGRAM

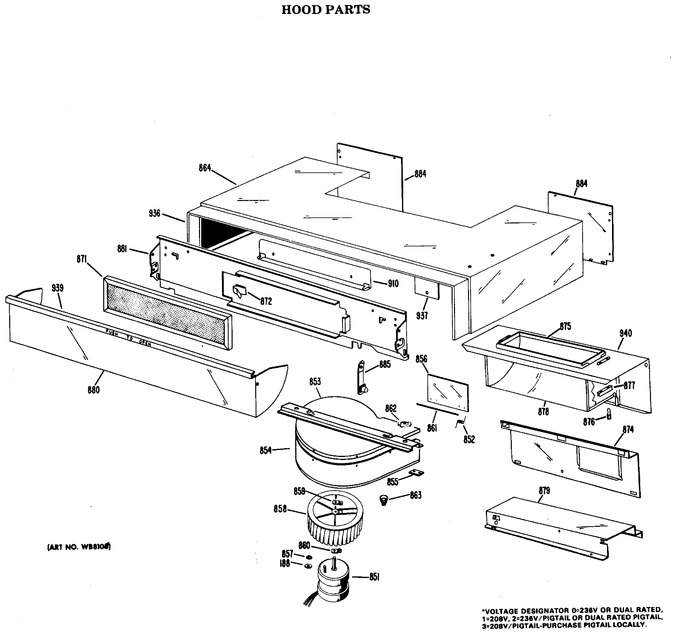

1 - Hood Parts
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5500-200 | Switch, Inf Surface Unit (Replaces: WB21X5243) |
|
Immediately | $ 60.94 | ||||
| 17 | WB3X5699 | "timer-knob" |
|
- | |||||
| 188 | WZ10X0114 | Lockwasher |
|
- | |||||
| 272 | WB17X5095 | Block Terminal Power |
|
- | |||||
| 280 | WX12X1510 | Lamp 40w Appliance |
|
- | |||||
| 282 | WB2X6215 | Clamp Harness |
|
- | |||||
| 292 | WB1X386 | Clamp Harness |
|
- | |||||
| 303 | WG02F04576 | Glass Oven Lamp (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 374 | WB2X3048 | Gasket Fiberglass |
|
- | |||||
| 392 | WB2X5217 | Cam Link |
|
- | |||||
| 397 | WZ04X0384 | Screw Mtg End Cap |
|
- | |||||
| 456 | WZ04X0345 | Screw |
|
- | |||||
| 459 | WB1X537 | Screw |
|
- | |||||
| 654 | WZ10X0114 | Lockwasher |
|
- | |||||
| 701 | WB15X5133 | Handle Latch |
|
- | |||||
| 740 | WB2X7226 | Clip Wire Black |
|
- | |||||
| 782 | WB17X5060 | Terminal Blk Asm (2 Pin) |
|
- | |||||
| 788 | WB17X5064 | Housing Socket Pkg 4 P1n |
|
- | |||||
| 790 | WB1X365 | Speednut |
|
- | |||||
| 828 | WZ04X0367 | Screw |
|
- | |||||
| 851 | WB26X27 | Motor Blower |
|
- | |||||
| 852 | WB9X72 | Spring Damper |
|
- | |||||
| 853 | WB49X216 | Housing Blower Top |
|
- | |||||
| 854 | WB49X217 | Housing Blower Bottom |
|
- | |||||
| 855 | WB2X3239 | Strap |
|
- | |||||
| 856 | WB2X2235 | Damper |
|
- | |||||
| 858 | WB2X3456 | Wheel Blower |
|
- | |||||
| 859 | WB2X3457 | Clamp |
|
- | |||||
| 860 | WB2X3458 | Clamp |
|
- | |||||
| 861 | WB2X1581 | Wire |
|
- | |||||
| 862 | WB2X2015 | Retainer |
|
- | |||||
| 863 | WB9X73 | Spring Blower Mount |
|
- | |||||
| 864 | WB62X1500 | Hood Body Cf |
|
- | |||||
| 864 | WB62X1501 | Hood Body Fa |
|
- | |||||
| 864 | WB62X1502 | Hood Body Ha |
|
- | |||||
| 864 | WB62X1503 | Hood Body Ad |
|
- | |||||
| 864 | WB62X1499 | Hood Body Wh |
|
- | |||||
| 871 | WB2X6731 | Filter Grease |
|
- | |||||
| 872 | WB2X1583 | Clip Hood Filter |
|
- | |||||
| 874 | WB49X218 | Cover Inner |
|
- | |||||
| 875 | WB49X182 | Exhaust Asm |
|
- | |||||
| 876 | WB1X426 | Stud Ball |
|
- | |||||
| 877 | WB2X2016 | Receiver Stud |
|
- | |||||
| 878 | WB49X183 | Guide Air |
|
- | |||||
| 879 | WB49X181 | Support Slide |
|
- | |||||
| 880 | WB56X663 | Panel Hood |
|
- | |||||
| 881 | WB2X2109 | Plate Filter |
|
- | |||||
| 884 | WB2X2017 | Cover Back |
|
- | |||||
| 885 | WB2X3130 | Spring & Pin Asm |
|
- | |||||
| 901 | WB2X1561 | Strain Relief |
|
- | |||||
| 910 | WB49X180 | Deflector Air |
|
- | |||||
| 912 | WB1X5508 | Strike Asm Door |
|
- | |||||
| 914 | WB2X7219 | Post Lh |
|
- | |||||
| 914 | WB2X7218 | Post Rh |
|
- | |||||
| 935 | WB24X169 | Switch Light |
|
- | |||||
| 936 | WB7X892 | Trim Hood Body |
|
- | |||||
| 937 | WB2X2110 | Bracket Filter Plate |
|
- | |||||
| 939 | WB7X639 | Trim |
|
- | |||||
| 940 | WB49X184 | Cover Asm |
|
- | |||||
| 1201 | WS01A01150 | Screw (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 1622 | WB24X5166 | Switch, Light |
|
- | |||||
| 32767 | WB1X528 | Speednut |
|
- | |||||
| 32767 | WZ04X0245 | Scr 8-18 Ab Phr 5/8 S |
|
- | |||||
| 32767 | WB2X1662 | Plate Hinge |
|
- | |||||
| 32767 | WZ04X0289 | Scr 8-18 Ab Hx 1/4 S |
|
- | |||||
| 32767 | WB2X1677 | Plate Tie |
|
- | |||||
| 32767 | WZ06X0082 | Scr 8-18 B Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X5508 | Washer |
|
- | |||||
| 32767 | WZ07X0030 | Nut |
|
- | |||||
| 32767 | WZ04X0397 | Scr 6-32 C Flr 5/16 S |
|
- | |||||
| 32767 | WB2X3238 | Pad |
|
- | |||||
| 32767 | WZ06X0038 | Scr 8-18 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB2X1511 | Insulation |
|
- | |||||
| 32767 | WB2X6659 | Pad |
|
- | |||||
| 32767 | WZ04X0288 | Scr 10-16 Ab Hxw 1/2s #8 |
|
- | |||||
| 32767 | WB2X2107 | Sleeve Detent |
|
- | |||||
| 32767 | WZ04X0419 | Scr 10-16 Ab Hxw 5/8 S |
|
- | |||||
| 32767 | WB2X6274 | Sleeve |
|
- | |||||
| 32767 | WZ04X0217 | Scr 6-20 B Hxw 1/4 S |
|
- | |||||
| 32767 | WZ04X0361 | Scr 8-18x5/8 |
|
- | |||||
| 32767 | WZ05X0134 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 32767 | WZ04X0396 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 32767 | 31-0421 | Install Instructions |
|
- | |||||
| 32767 | WB1X5520 | Speednut |
|
- | |||||
| 32767 | WZ10X0016 | Washer |
|
- | |||||
| 32767 | WB1X5497 | Scr 10-16 Ab Ihw 1/2 S |
|
- | |||||
| 32767 | WZ02X0529 | Screw |
|
- | |||||
| 32767 | WZ02X0546 | Scr 8-32 M Phr 1/2 S |
|
- | |||||
| 32767 | WB2X1579 | Pad |
|
- | |||||
| 32767 | WZ04X0255 | Scr 8-18x1 Ab Ovr 1/2 S |
|
- | |||||
| 32767 | WZ04X0291 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 32767 | WB1X5471 | Scr 8-18 Ab T 15/32 S |
|
- | |||||
| 32767 | WZ04X0279 | Scr 6-20 Ab Hxw 1/4 S |
|
- | |||||
| 32767 | WB1X5552 | Washer |
|
- | |||||
| 32767 | WB2X1222 | Pad |
|
- | |||||
| 32767 | WZ04X0348 | Scr 10-16 B Sl 1-1/8 S |
|
- | |||||
| 32767 | WB1X438 | Screw & Washer Asm |
|
- | |||||
| 32767 | WB2X3152 | Pad |
|
- | |||||
| 32767 | WB17X171 | Terminal Male & Female |
|
- | |||||
| 32767 | WZ05X0120 | Screw |
|
- | |||||
| 32767 | WB1X500 | Terminal Screw |
|
- | |||||
| 32767 | WZ04X0413 | Screw |
|
- | |||||
| 32767 | WB2X6496 | Insulation |
|
- | |||||
| 32767 | WZ04X0336 | Scr 8-18 Ab Ovr 3/8 S#6h |
|
- | |||||
| 32767 | WZ04X0232 | Scr 8-18 Ab Hxs 3/8 S |
|
- |
