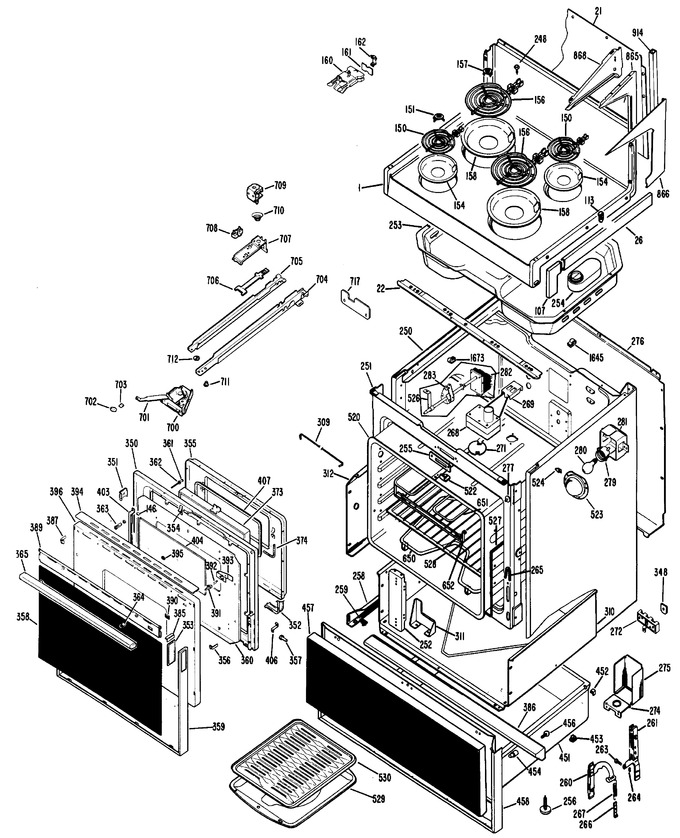

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Hood Parts
2 - Component Group
3 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB62X1506 | Cooktop Fa |
|
- | |||||
| 1 | WB62X1508 | Cooktop Ad |
|
- | |||||
| 1 | WB62X1507 | Cooktop Ha |
|
- | |||||
| 1 | WB62X1504 | Cooktop Wh |
|
- | |||||
| 1 | WB62X1505 | Cooktop Cf |
|
- | |||||
| 9 | WB7X6677 | End Cap Lh |
|
- | |||||
| 9 | WB7X6676 | End Cap Rh |
|
- | |||||
| 21 | WB49X5181 | Cover Back |
|
- | |||||
| 22 | WB7X6779 | Deflector |
|
- | |||||
| 26 | WB7X1013 | Trim Cooktop Lh |
|
- | |||||
| 26 | WB7X1012 | Trim Cooktop Rh |
|
- | |||||
| 113 | WB2X2988 | Clip Trim |
|
- | |||||
| 150 | WB30X218 | Surface Unit, 6" |
|
- | |||||
| 151 | WB32X52 | Center Trim 6" Unit |
|
- | |||||
| 154 | WB31X5010 | Pan & Ring 6" Chrome |
|
- | |||||
| 156 | PS240M | Surface Unit, 8" (Replaces: WB30X219) |
|
Immediately | $ 44.95 | ||||
| 157 | WB32X51 | Center Trim 8" Unit |
|
- | |||||
| 158 | WB31X5011 | Pan & Ring 8" Chrome |
|
- | |||||
| 160 | WB17X5051 | Receptacle Asm |
|
- | |||||
| 160 | WB1X5355 | Screw Recept Terminal |
|
- | |||||
| 160 | WB5X5026 | Spring Contact Pkg |
|
- | |||||
| 161 | WB2X6171 | Insulator |
|
- | |||||
| 162 | WB2X6172 | Clip Insulator |
|
- | |||||
| 248 | WB1X500 | Terminal Screw |
|
- | |||||
| 250 | WB2X3229 | Barrier Bakeunit Opening |
|
- | |||||
| 251 | WB56X5861 | Frame Front |
|
- | |||||
| 252 | WB2X6768 | Panel Filler |
|
- | |||||
| 253 | WB49X5149 | Box Cooktop |
|
- | |||||
| 254 | WB38X5039 | Body Vent |
|
- | |||||
| 255 | WB7X552 | Trim Latch |
|
- | |||||
| 256 | WB1X5516 | Leveling Leg |
|
- | |||||
| 258 | WB39X5010 | Guide Drawer Lh |
|
- | |||||
| 258 | WB39X5011 | Guide Drawer Rh |
|
- | |||||
| 259 | WB2X831 | Slide Guide |
|
- | |||||
| 260 | WB10X5092 | Hinge Lever Asm Rh & Lh |
|
- | |||||
| 261 | WB10X5091 | Support Hinge Lh |
|
- | |||||
| 261 | WB10X5090 | Support Hinge Rh |
|
- | |||||
| 263 | WG02A00596 | Pin Hinge (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 264 | WB2X1082 | Pin Hinge Retainer |
|
- | |||||
| 265 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 266 | WB2X2506 | Hook Door Spring |
|
- | |||||
| 267 | WB9X5076 | Spring Door |
|
- | |||||
| 268 | WB29X5009 | Smoke Eliminator Asm |
|
- | |||||
| 269 | WB2X3388 | Terminal Block |
|
- | |||||
| 271 | WB2X1626 | Baffle |
|
- | |||||
| 274 | WB2X6191 | Bracket Knockout |
|
- | |||||
| 275 | WB2X6655 | Cover Terminal Block |
|
- | |||||
| 276 | WB49X5161 | Cover Back |
|
- | |||||
| 277 | WB24X105 | Switch, Oven Light |
|
- | |||||
| 279 | WB8X191 | Receptacle |
|
- | |||||
| 281 | WB2X3466 | Guard Lamp |
|
- | |||||
| 282 | WB24X5138 | Switch, Thermal (tls) |
|
- | |||||
| 283 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 283 | WB2X3164 | Plate |
|
- | |||||
| 309 | WB2X6767 | Hook Wire |
|
- | |||||
| 310 | WB49X5156 | Guard Lower |
|
- | |||||
| 311 | WB2X6187 | Support Oven |
|
- | |||||
| 312 | WB49X5222 | Guard Upper Lh |
|
- | |||||
| 312 | WB49X5221 | Guard Upper Rh |
|
- | |||||
| 348 | WB2X646 | Plate Ground |
|
- | |||||
| 350 | WB55X5243 | Door Liner |
|
- | |||||
| 350 | WB2X6546 | Insulation Door |
|
- | |||||
| 351 | WB2X6270 | Spacer Door |
|
- | |||||
| 352 | WB2X6547 | Gasket Door |
|
- | |||||
| 353 | WB2X6573 | Pad Trim |
|
- | |||||
| 354 | WB9X154 | Strike Spring |
|
- | |||||
| 355 | WB55X5244 | Panel Inner |
|
- | |||||
| 356 | WB2X6574 | Clip Trim (4) |
|
- | |||||
| 357 | WB1X558 | Screw |
|
- | |||||
| 358 | WB36X5379 | Glass Black |
|
- | |||||
| 358 | WB2X7189 | Reflector Panel |
|
- | |||||
| 359 | WB7X5625 | Trim Door |
|
- | |||||
| 360 | WB55X5218 | Guard Insulation |
|
- | |||||
| 361 | WZ04X0298 | Screw Mtg Handle |
|
- | |||||
| 362 | WB1X119 | Washer Screw |
|
- | |||||
| 363 | WB2X6204 | Spacer Panel |
|
- | |||||
| 364 | WB2X6243 | Grommet Handle |
|
- | |||||
| 365 | WB15X5130 | Handle |
|
- | |||||
| 373 | WB36X5244 | Window |
|
- | |||||
| 385 | WB7X5631 | Cap Trim |
|
- | |||||
| 386 | WB15X5124 | Handle |
|
- | |||||
| 387 | WB2X6575 | Clip Trim |
|
- | |||||
| 389 | WB7X5623 | Trim Door |
|
- | |||||
| 390 | WB7X5624 | Trim Toggle |
|
- | |||||
| 391 | WB2X3052 | Toggle |
|
- | |||||
| 393 | WB9X5083 | Cam Spring |
|
- | |||||
| 394 | WB7X5630 | Trim Top |
|
- | |||||
| 395 | WB2X3053 | Clip Mtg Door Trims |
|
- | |||||
| 396 | WB56X5678 | Panel Door |
|
- | |||||
| 402 | WB1X591 | Speednut |
|
- | |||||
| 403 | WB2X7188 | Bracket Window |
|
- | |||||
| 404 | WB36X5477 | Crystal Window |
|
- | |||||
| 406 | WB2X6238 | Bracket Door |
|
- | |||||
| 407 | WB7X722 | Trim Crystal |
|
- | |||||
| 451 | WB58X5005 | Drawer Asm |
|
- | |||||
| 451 | WB2X6740 | Bracket Drawer |
|
- | |||||
| 452 | WB2X840 | Slide Top |
|
- | |||||
| 453 | WB2X841 | Slide Bottom |
|
- | |||||
| 454 | WB2X6208 | Bumper |
|
- | |||||
| 456 | WZ04X0209 | Handle Screw |
|
- | |||||
| 457 | WB56X5799 | Drawer Panel Blk |
|
- | |||||
| 458 | WB7X5659 | Trim Drawer |
|
- | |||||
| 520 | WB53X5070 | Oven Liner |
|
- | |||||
| 520 | WB2X3471 | Clip Capillary Tubeoven |
|
- | |||||
| 520 | WB2X6496 | Insulation |
|
- | |||||
| 522 | WB2X6209 | Clip Trim |
|
- | |||||
| 523 | WG02F04576 | Lamp Cover Asm (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 526 | WB2X3165 | Hanger |
|
- | |||||
| 527 | WB2X3253 | Mullion Unit Clip |
|
- | |||||
| 527 | WB44X186 | Mullion Unit |
|
- | |||||
| 528 | WB48X5044 | Rack Oven |
|
- | |||||
| 529 | WB49X88 | Broil Pan |
|
- | |||||
| 530 | WB48X5002 | Broiler Pan Rack |
|
- | |||||
| 650 | UB592 | Bake Unit 208/240v (Replaces: WB44X5082) |
|
Immediately | $ 49.95 | ||||
| 651 | UT316 | Broil Unit 208/240v (Replaces: WB44X185) |
|
Immediately | $ 49.95 | ||||
| 652 | WB2X1452 | Support Broil |
|
- | |||||
| 700 | WB14X5035 | Latch |
|
- | |||||
| 702 | WB3X322 | Knob Latch |
|
- | |||||
| 703 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 704 | WB2X3174 | Channel Latch |
|
- | |||||
| 705 | WB2X3175 | Channel Locking |
|
- | |||||
| 706 | WB2X3159 | Pawl Locking |
|
- | |||||
| 707 | WB2X3176 | Plate Mounting |
|
- | |||||
| 708 | WB24X183 | Switch, Latch |
|
- | |||||
| 709 | WB24X197 | Solenoid |
|
- | |||||
| 710 | WB9X148 | Spring |
|
- | |||||
| 711 | WB2X6212 | Pivot Stud |
|
- | |||||
| 712 | WB2X1800 | Retainer Ring |
|
- | |||||
| 717 | WB2X6911 | Bracket Latch |
|
- | |||||
| 826 | WB2X3001 | Spacer Post |
|
- | |||||
| 865 | WB2X6736 | Support Rh |
|
- | |||||
| 866 | WB7X1171 | Cover Support Rh Fa |
|
- | |||||
| 866 | WB7X1175 | Cover Support Lh Cf |
|
- | |||||
| 866 | WB7X1176 | Cover Support Lh Fa |
|
- | |||||
| 866 | WB7X1169 | Cover Support Rh Wh |
|
- | |||||
| 866 | WB7X1170 | Cover Support Rh Cf |
|
- | |||||
| 866 | WB7X1177 | Cover Support Lh Ha |
|
- | |||||
| 866 | WB7X1172 | Cover Support Rh Ha |
|
- | |||||
| 866 | WB7X1173 | Cover Support Rh Ad |
|
- | |||||
| 866 | WB7X1174 | Cover Support Lh Wh |
|
- | |||||
| 866 | WB7X1178 | Cover Support Lh Ad |
|
- | |||||
| 868 | WB7X1168 | Panel Crystal Lh Ad |
|
- | |||||
| 868 | WB7X1165 | Panel Crystal Lh Cf |
|
- | |||||
| 868 | WB7X1166 | Panel Crystal Lh Fa |
|
- | |||||
| 868 | WB7X1167 | Panel Crystal Lh Ha |
|
- | |||||
| 868 | WB7X1159 | Panel Crystal Rh Wh |
|
- | |||||
| 868 | WB7X1160 | Panel Crystal Rh Cf |
|
- | |||||
| 868 | WB7X1161 | Panel Crystal Rh Fa |
|
- | |||||
| 868 | WB7X1162 | Panel Crystal Rh Ha |
|
- | |||||
| 868 | WB7X1163 | Panel Crystal Rh Ad |
|
- | |||||
| 868 | WB7X1164 | Panel Crystal Lh Wh |
|
- | |||||
| 978 | WB2X1126 | Plug Button |
|
- | |||||
| 1645 | WB2X7006 | Clamp Harness |
|
- | |||||
| 32767 | WB2X1659 | Speednut |
|
- |
