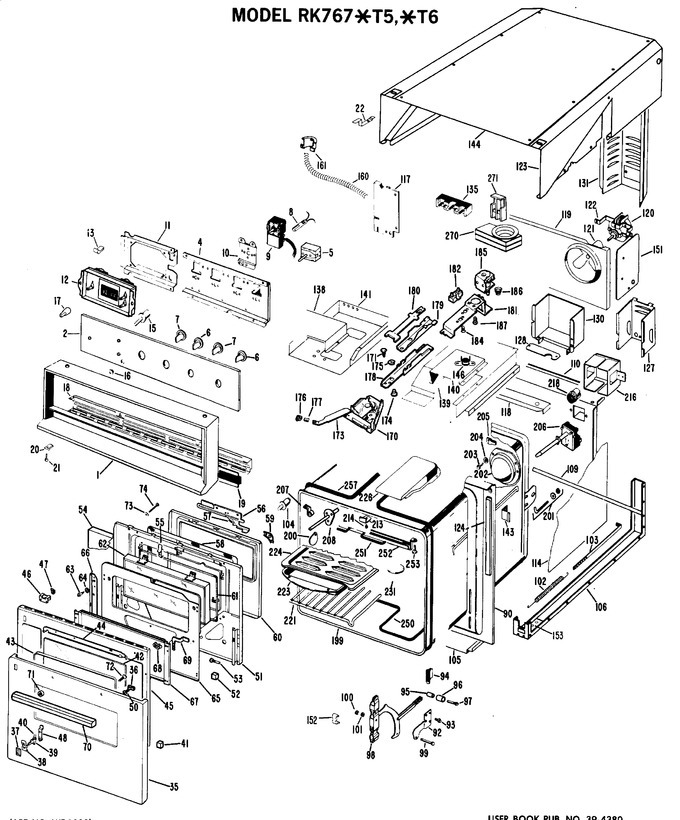

SELECT A DIAGRAM

1 - Component Group


2 - Lower Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB7X1123		Nose Control Trim		Appelez-nous	-
1	WZ05X0226		Screw Mt. Nose		Appelez-nous	-
1	WB7X1122		Trim		Appelez-nous	-
1	WB2X3297		Spacer		Appelez-nous	-
2	WB36X559		Crystal		Appelez-nous	-
4	WB2X3453		Bracket Instrument		Appelez-nous	-
4	WB1X538		Nut Mtg. Brkt.		Appelez-nous	-
5	WB22X5085		Switch Oven		Appelez-nous	-
5	WB22X73		Switch, Oven		Appelez-nous	-
5	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
6	WB3X408		Knob Oven Switch		Appelez-nous	-
6	WB3X407		Knob Oven Switch		Appelez-nous	-
7	WB3X405		Knob Thermostat		Appelez-nous	-
7	WB3X406		Knob Thermostat		Appelez-nous	-
8	WB2X1608		Neon Lamp 118v				$ 31.65
8	WB2X3468		Neon Lamp 240v		Appelez-nous	-
9	WB2X1394		Sleeve		Appelez-nous	-
9	WB21X5320		Thermostat, Dual   (Replaces: WB24X176)		Appelez-nous	-
9	WB2X6937		Sleeve		Appelez-nous	-
9	WB1X521		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
9	WB21X178		Thermostat, L.o.		Appelez-nous	-
9	WB2X1949		Plate Instrument		Appelez-nous	-
9	WB2X6274		Sleeve Cap Tube		Appelez-nous	-
9	WB2X3178		Sleeve - Lower Themostat		Appelez-nous	-
9	WZ02X0528		Scr 8-32 M Phr 3/16 S		Appelez-nous	-
10	WB2X1949		Plate Instrument		Appelez-nous	-
10	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
11	WB1X538		Nut Mtg. Brkt.		Appelez-nous	-
11	WB2X3405		Bracket Timer		Appelez-nous	-
12	WB1X540		Nut		Appelez-nous	-
12	WB19M160CP		Timer Digital   (Replaces: WB19X5231)		Appelez-nous	-
13	WB2X2006		Clamp Harness		Appelez-nous	-
14	WB2X2403		Bracket		Appelez-nous	-
15	WB24X205		Switch, Latch Release		Appelez-nous	-
16	WB2X1838		Trim - Switch		Appelez-nous	-
17	WB3X459		Knob Timer		Appelez-nous	-
18	WB2X1973		Deflector		Appelez-nous	-
19	WB7X933		Grille		Appelez-nous	-
19	WZ05X0132		Scr 8-32 T Hxw 5/16 S		Appelez-nous	-
20	WB1X544		Speednut - Mt. Trim To F		Appelez-nous	-
21	WZ04X0218		Scr 6-20 Ab Ph 3/8 S		Appelez-nous	-
22	WZ04X0369		Screw Mtg Trim		Appelez-nous	-
22	WB2X3291		Bracket Trim		Appelez-nous	-
22	WZ04X0372		Scr 6-20 Ab Hxw 3/8 S		Appelez-nous	-
35	WB56X1366		Door Panel Wh		Appelez-nous	-
35	WB56X1369		Door Panel Ha		Appelez-nous	-
35	WB56X1367		Door Panel Cf		Appelez-nous	-
35	WB56X1370		Door Panel Ad		Appelez-nous	-
35	WB2X3306		Panel Reflector		Appelez-nous	-
35	WB56X1368		Door Panel Fa		Appelez-nous	-
36	WB1X589		Speednut Panel		Appelez-nous	-
37	WB7X273		Trim Plate		Appelez-nous	-
38	WB2X3307		Retainer Toggle		Appelez-nous	-
39	WB2X2248		Toggle		Appelez-nous	-
41	WB2X3308		Pad		Appelez-nous	-
42	WB36X430		Crystal Window		Appelez-nous	-
43	WB7X1031		Trim Crystal		Appelez-nous	-
44	WB2X3282		Clip Crystal		Appelez-nous	-
44	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
45	WB56X1386		Panel Middle Door Wh		Appelez-nous	-
45	WB2X3424		Refector - Mid. Panel		Appelez-nous	-
45	WB56X1387		Panel Middle Door Cf		Appelez-nous	-
45	WB56X1388		Panel Middle Door Fa		Appelez-nous	-
45	WB56X1389		Panel Middle Door Ha		Appelez-nous	-
45	WB56X1390		Panel Middle Door Ad		Appelez-nous	-
46	WB2X5217		Cam Link		Appelez-nous	-
46	WB2X3310		Bracket Panel		Appelez-nous	-
46	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
47	WB1X439		Speednut Bracket		Appelez-nous	-
48	WZ04X0239		Scr		Appelez-nous	-
48	WB9X153		Spring Toggle		Appelez-nous	-
50	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
51	WB55X406		Liner		Appelez-nous	-
52	WB2X3285		Pad		Appelez-nous	-
53	WB1X558		Screw Nail Point		Appelez-nous	-
54	WB32X3314		Reflector		Appelez-nous	-
54	WB2X3312		Insulation Door		Appelez-nous	-
55	WB9X154		Strike Spring		Appelez-nous	-
56	WB2X3315		Cover - Guard Asm.		Appelez-nous	-
56	WZ04X0304		Screw Mt. Duct		Appelez-nous	-
57	WB9X128		Spring - Guard		Appelez-nous	-
58	WG02L02006		Gasket - Door Fibreglass   (Replaces: WB2X2614)			Immediately	$ 60.44
59	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
59	WB2X3316		Gasket - Clamp		Appelez-nous	-
60	WB2X2276		Reflector Foil		Appelez-nous	-
60	WB2X3313		Insulation Door		Appelez-nous	-
60	WB55X407		Panel Inner		Appelez-nous	-
61	WB2X3048		Gasket Window		Appelez-nous	-
62	WB36X448		Window		Appelez-nous	-
62	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
63	WB1X547		Scr 8-18 Ba Ihw 13/16 S		Appelez-nous	-
64	WB1X548		Washer		Appelez-nous	-
65	WB49X354		Guard Insulation		Appelez-nous	-
65	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
65	WZ04X0231		Screw Mt. Side		Appelez-nous	-
66	WB2X3318		Track - Spring Lh		Appelez-nous	-
66	WB2X3317		Track - Spring Rh		Appelez-nous	-
67	WB55X408		Shield		Appelez-nous	-
68	WZ04X0238		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
68	WB2X3040		Slide Shield		Appelez-nous	-
68	WZ05X0134		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
69	WB2X3320		Handle Lh		Appelez-nous	-
69	WB2X3319		Handle Rh		Appelez-nous	-
70	WB15X133		Handle		Appelez-nous	-
71	WB2X6243		Grommet Handle		Appelez-nous	-
72	WB1X5431		Washer		Appelez-nous	-
72	WZ04X0350		Scr 10-16 B Hxw 5/8 S		Appelez-nous	-
73	WB1X119		Washer Contoured		Appelez-nous	-
74	WZ04X0386		Screw 10-16 X 3/4" Pan		Appelez-nous	-
90	WB56X1327		Frame		Appelez-nous	-
90	WZ04X0237		Screw		Appelez-nous	-
92	WB10X154		Support Hinge Rh		Appelez-nous	-
92	WB10X155		Support Hinge Lh		Appelez-nous	-
93	WZ06X0086		Scr 10-24 M Hx 5/16 S		Appelez-nous	-
94	WB2X3303		Guide Hinge Lever		Appelez-nous	-
95	WB2X3305		Sleeve Roller		Appelez-nous	-
96	WB2X3304		Roller		Appelez-nous	-
97	WB1X524		Screw		Appelez-nous	-
98	WB10X158		Hinge Lever Rh Lh		Appelez-nous	-
99	WG02A00596		Pin Hinge Door   (Replaces: WB2X6195)				$ 4.20
100	WB2X1082		Ring Retaining		Appelez-nous	-
101	WB10X17		Washer		Appelez-nous	-
102	WB9X156		Spring Door		Appelez-nous	-
103	WB2X3289		Link Door Spring		Appelez-nous	-
104	WB24X105		Switch		Appelez-nous	-
104	WB2X3421		Barrier		Appelez-nous	-
105	WB55X302		Guard Bottom		Appelez-nous	-
106	WB59X167		Channel Bottom		Appelez-nous	-
109	WB2X2401		Channel Side		Appelez-nous	-
110	WB49X327		Back Asm		Appelez-nous	-
114	WB59X164		Side Inner		Appelez-nous	-
117	WB2X2858		Extension Air Shield		Appelez-nous	-
118	WB2X2083		Brace Latch		Appelez-nous	-
119	WB55X303		Air Shield		Appelez-nous	-
119	WB2X6426		Pad Transformer		Appelez-nous	-
120	WB26X5052		Motor, Fan		Appelez-nous	-
121	WB2X2001		Blade Fan, Upper		Appelez-nous	-
121	WB2X2002		Compression Ring		Appelez-nous	-
122	WZ05X0345		Screw Mt. Motor To Brkt.		Appelez-nous	-
122	WB2X2846		Bracket Fan		Appelez-nous	-
123	WB55X305		Extension Side Lh		Appelez-nous	-
123	WB55X304		Extension Side Rh		Appelez-nous	-
124	WB2X3422		Gasket		Appelez-nous	-
127	WB2X2845		Cover Light		Appelez-nous	-
128	WB2X2842		Plate Adapter		Appelez-nous	-
130	WB2X3156		Guard Asm		Appelez-nous	-
131	WB49X268		Guard Terminal		Appelez-nous	-
135	WB17X167		Block Term Distribution		Appelez-nous	-
135	WZ04X0384		Screw Mtg End Cap		Appelez-nous	-
138	WB59X165		Guard Wire		Appelez-nous	-
139	WB59X134		Insulation Guard Rh		Appelez-nous	-
140	WB2X3173		Cover Vent		Appelez-nous	-
141	WB59X170		Insulation Guard Lh		Appelez-nous	-
143	WB2X2104		Spacer		Appelez-nous	-
144	WB49X330		Case Top		Appelez-nous	-
146	WB24X199		Switch Thermal Fan		Appelez-nous	-
151	WB2X2847		Shield Wire		Appelez-nous	-
152	WB2X3403		Clip Shim		Appelez-nous	-
153	WB2X3423		Gusset		Appelez-nous	-
153	WB2X2861		Gusset		Appelez-nous	-
160	WB2X1409		Sleeve Conduit		Appelez-nous	-
161	WB2X3061		Clamp Conduit		Appelez-nous	-
161	WZ04X0388		Screw Mtg. Clamp		Appelez-nous	-
170	WB14X36		Latch Assembly		Appelez-nous	-
171	WZ04X0396		Scr 10-16 B Hxw 1/4 S		Appelez-nous	-
172	WZ02X0503		Screw		Appelez-nous	-
173	WB1X438		Screw Washer Asm		Appelez-nous	-
173	WB15X150		Handle Latch		Appelez-nous	-
174	WB2X6212		Pivot Stud		Appelez-nous	-
175	WB2X1800		Retainer Ring		Appelez-nous	-
176	WB3X434		Knob Latch		Appelez-nous	-
177	WG02A00753		Retainer Knob   (Replaces: WB2X2030)				$ 4.20
178	WB2X3157		Channel Latch		Appelez-nous	-
179	WB2X3158		Channel Locking		Appelez-nous	-
180	WB2X3159		Locking Pawl Asm		Appelez-nous	-
181	WB2X3160		Plate-mounting		Appelez-nous	-
181	WB1X458		Screw, Mtg. Bracket		Appelez-nous	-
182	WB24X183		Switch, Latch		Appelez-nous	-
184	WZ04X0397		Scr 6-32 C Flr 5/16 S		Appelez-nous	-
185	WB24X197		Solenoid		Appelez-nous	-
186	WB9X148		Spring-plunger		Appelez-nous	-
187	WB1X438		Screw Washer Asm		Appelez-nous	-
199	WB53X252		Oven Liner		Appelez-nous	-
199	WB53X234		Oven Liner (06-07)		Appelez-nous	-
199	WB2X2116		Insulation		Appelez-nous	-
199	WB2X1125		Plug Button		Appelez-nous	-
199	WB2X3471		Clip Capillary Tube Oven		Appelez-nous	-
200	WB2X3230		Cover Plate-jack		Appelez-nous	-
201	WB9X88		Lockwasher		Appelez-nous	-
202	WG02F04576		Lamp Cover Asm   (Replaces: WB36X192)				$ 20.65
203	WZ04X0292		Screw Mt. Cover		Appelez-nous	-
204	WB2X1847		Washer Mt. Cover		Appelez-nous	-
205	WB2X1659		Speednut		Appelez-nous	-
206	WB24X175		Switch, Thermal		Appelez-nous	-
207	WB2X3165		Hanger-tls		Appelez-nous	-
207	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
208	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
208	WB2X3163		Gasket-tls				$ 22.50
208	WB2X3164		Plate		Appelez-nous	-
213	WB2X3393		Trim Clip		Appelez-nous	-
214	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
216	WB2X3466		Guard Lamp		Appelez-nous	-
218	WB8X176		Lamp Socket		Appelez-nous	-
221	WB48X82		Rack Oven		Appelez-nous	-
223	WB49X88		Broil Pan		Appelez-nous	-
224	WB48X5002		Broiler Pan Rack		Appelez-nous	-
226	WB38X75		Vent Asm		Appelez-nous	-
231	WB2X818		Cover Vent		Appelez-nous	-
250	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
250	UB323		Bake Unit 208/240v   (Replaces: WB44X200)			Immediately	$ 41.80
251	UT316		Broil Unit   (Replaces: WB44X185)			Immediately	$ 49.95
251	WB2X1543		Gasket - Broil		Appelez-nous	-
251	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
252	WB2X1810		Support Broil Unit		Appelez-nous	-
253	WZ04X0291		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
257	WB2X3452		Terminal Insulator		Appelez-nous	-
257	WB2X3328		Barrier		Appelez-nous	-
257	WB2X3293		Spacer Mullion		Appelez-nous	-
257	WB44X207		Mullion Unit		Appelez-nous	-
270	WB2X3292		Gasket		Appelez-nous	-
270	WB29X53		Smoke Eliminator Asm		Appelez-nous	-
271	WB2X3388		Terminal Block		Appelez-nous	-
900	WB2X3290		Oven Liner Insulation Pk		Appelez-nous	-
900	WB53X242		Oven Liner		Appelez-nous	-
