1 - Component Group

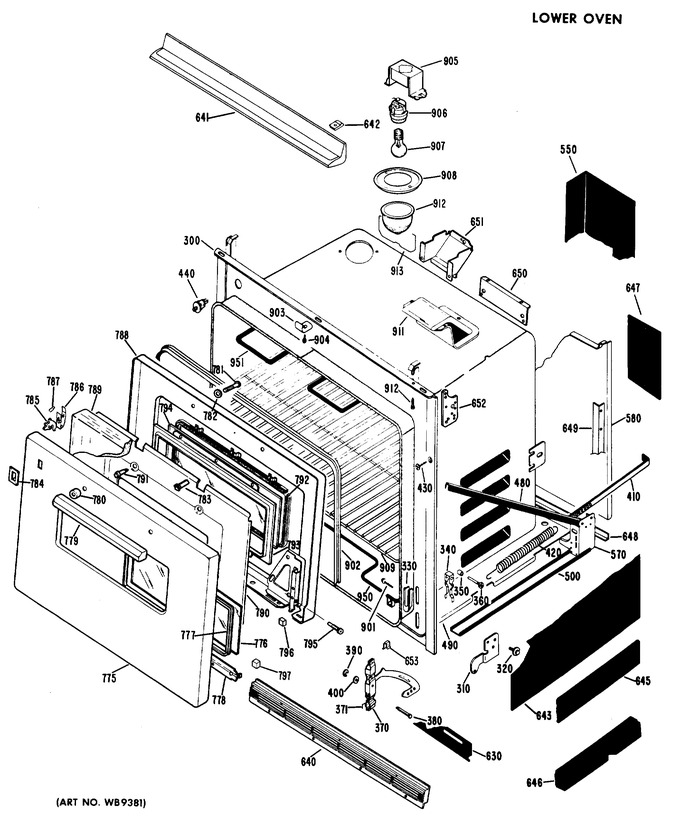

2 - Lower Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 300 | WB56X1326 | Frame |
|
- | |||||
| 310 | WB10X154 | Hinge Support - Rh |
|
- | |||||
| 310 | WB10X155 | Hinge Support - Lh |
|
- | |||||
| 320 | WZ06X0086 | Screw Mtg. Support |
|
- | |||||
| 330 | WB2X1460 | Hinge Lever Guide |
|
- | |||||
| 340 | WB2X1461 | Spring - Hinge Lever |
|
- | |||||
| 350 | WB2X1462 | Roher |
|
- | |||||
| 360 | WB1X352 | Screw Mtg. Roller |
|
- | |||||
| 370 | WB10X151 | Hinge Lever Kit Rh & Lh |
|
- | |||||
| 371 | WB9X150 | Stop Spring |
|
- | |||||
| 380 | WG02A00596 | Hinge Pin (Replaces: WB2X6195) |
|
$ 4.20 | |||||
| 390 | WB2X1082 | Hinge Pin Retainer |
|
- | |||||
| 400 | WZ10X0017 | Washer |
|
- | |||||
| 410 | WB2X3289 | Link |
|
- | |||||
| 420 | WB9X151 | Spring |
|
- | |||||
| 430 | WB1X295 | Screw 1-1/4" |
|
- | |||||
| 430 | WB1X292 | Screw 3/4" |
|
- | |||||
| 440 | WB24X105 | Oven Light Switch |
|
- | |||||
| 480 | WB2X2401 | Channel Side |
|
- | |||||
| 480 | WB1X458 | Screw Mtg. Channel |
|
- | |||||
| 490 | WB59X69 | Bottom Guard |
|
- | |||||
| 500 | WB1X252 | Screw Mtg. Channel |
|
- | |||||
| 500 | WB59X107 | Channel |
|
- | |||||
| 550 | WB59X64 | Terminal Guard |
|
- | |||||
| 570 | WB59X108 | Gusset |
|
- | |||||
| 580 | WB59X136 | Back |
|
- | |||||
| 630 | WB2X3467 | Support Trim |
|
- | |||||
| 640 | WB7X1236 | Trim |
|
- | |||||
| 640 | WZ04X0349 | Screw Mtg. Trim |
|
- | |||||
| 641 | WB7X1124 | Train Middle |
|
- | |||||
| 642 | WB1X537 | Screw Mtg. Trim |
|
- | |||||
| 642 | WB2X3298 | Clip |
|
- | |||||
| 643 | WB59X105 | Case Side Rh & Lh |
|
- | |||||
| 645 | WB59X106 | Cover Side |
|
- | |||||
| 646 | WB2X2063 | Spacer Bottom |
|
- | |||||
| 647 | WB59X137 | Cover |
|
- | |||||
| 648 | WB59X71 | Angle |
|
- | |||||
| 649 | WB2X3299 | Angle |
|
- | |||||
| 650 | WZ04X0231 | Screw Mtg. Angle |
|
- | |||||
| 650 | WB2X3300 | Spacer |
|
- | |||||
| 651 | WB2X3301 | Wire Guard |
|
- | |||||
| 652 | WZ04X0231 | Screw Mtg. Support |
|
- | |||||
| 652 | WB2X3302 | Support Bracket |
|
- | |||||
| 653 | WB2X3403 | Shim |
|
- | |||||
| 775 | WB56X1358 | Panel - Fa |
|
- | |||||
| 775 | WB56X1360 | Panel - Ad |
|
- | |||||
| 775 | WB56X1359 | Panel - Ha |
|
- | |||||
| 775 | WB56X1357 | Panel - Cf |
|
- | |||||
| 775 | WB56X1356 | Panel - Wh |
|
- | |||||
| 776 | WB36X430 | Crystal |
|
- | |||||
| 777 | WB7X1031 | Window Trim |
|
- | |||||
| 778 | WB2X3282 | Window Bracket |
|
- | |||||
| 778 | WZ04X0231 | Screw Mtg. Bracket |
|
- | |||||
| 779 | WB15X133 | Handle |
|
- | |||||
| 780 | WB2X6243 | Handle Spacer |
|
- | |||||
| 781 | WZ04X0298 | Handl&screw |
|
- | |||||
| 782 | WB1X119 | Handle Washer |
|
- | |||||
| 783 | WB2X6204 | Panel Spacer |
|
- | |||||
| 784 | WB7X5486 | Trim |
|
- | |||||
| 785 | WB2X5410 | Toggle |
|
- | |||||
| 786 | WB9X5083 | Spring |
|
- | |||||
| 787 | WB2X5217 | Kink |
|
- | |||||
| 788 | WB55X402 | Liner |
|
- | |||||
| 789 | WB2X3283 | Liner Insulation |
|
- | |||||
| 790 | WB55X403 | Insulation Guard |
|
- | |||||
| 791 | WB1X547 | Screw Mtg. Guard |
|
- | |||||
| 792 | WB2X3048 | Window - Gasket |
|
- | |||||
| 793 | WZ04X0231 | Screw Mtg. Frone |
|
- | |||||
| 793 | WB2X3284 | Window Frame |
|
- | |||||
| 794 | WB36X526 | Window |
|
$ 140.86 | |||||
| 795 | WB1X558 | Socket Screw |
|
- | |||||
| 796 | WB2X3285 | Socket Pad |
|
- | |||||
| 797 | WB2X3308 | Pad |
|
- | |||||
| 901 | WB1X556 | Screw Mtg. Ianer |
|
- | |||||
| 902 | WB2X2058 | Silicone Gasket |
|
- | |||||
| 903 | WB2X3393 | Trim Cup |
|
- | |||||
| 904 | WZ04X0291 | Screw |
|
- | |||||
| 905 | WB2X3477 | Bracket Support |
|
- | |||||
| 906 | WB8X191 | Receptacle |
|
- | |||||
| 908 | WB2X3448 | Trim |
|
- | |||||
| 909 | WB48X73 | Shelf |
|
- | |||||
| 911 | WB38X61 | Gasket Vent |
|
- | |||||
| 911 | WB1X556 | Screw Mtg. Vent |
|
- | |||||
| 911 | WB38X62 | Vent |
|
- | |||||
| 912 | WG02F04576 | Lamp Cover (Replaces: WB36X389) |
|
$ 20.65 | |||||
| 913 | WB2X2885 | Lamp Cover Clip |
|
- | |||||
| 950 | WB44X192 | Bake Unit |
|
- | |||||
| 950 | WZ04X0231 | Screw Mtg. Units Bake & Broil |
|
- | |||||
| 951 | UT316 | Broil Unit (Replaces: WB44X180) |
|
Immediately | $ 49.95 | ||||
| 951 | WB2X599 | Capillary Tube Clip |
|
- | |||||
| 951 | WB2X1452 | Support Broil Unit |
|
- | |||||
| 951 | WB2X1543 | Gasket Broil Unit |
|
- | |||||
| 951 | WZ05X0128 | Screw Mtg. Support |
|
- |
