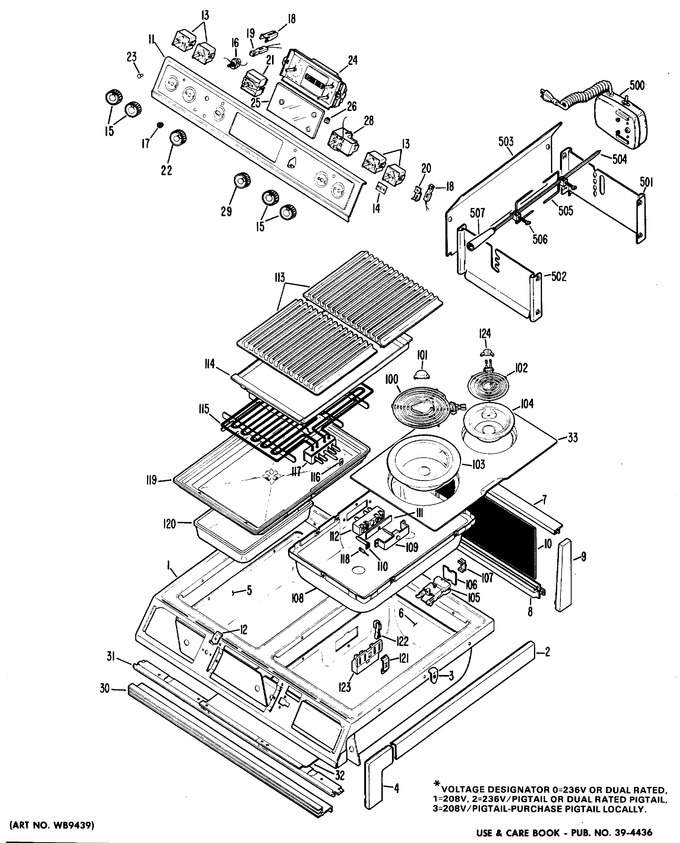

SELECT A DIAGRAM

1 - Component Group


2 - Component Group


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WZ04X0209		Handle Screw		Appelez-nous	-
1	WB62X5287		Cooktop Bc		Appelez-nous	-
2	WB7X6665		Trim Cooktop Rh		Appelez-nous	-
2	WB7X6666		Trim Cooktop Lh		Appelez-nous	-
3	WB2X2988		Clip Trim		Appelez-nous	-
3	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
4	WB2X6939		Bracket Harness Clip		Appelez-nous	-
4	WB7X6734		End Cap Rh		Appelez-nous	-
4	WB7X6735		End Cap Lh		Appelez-nous	-
4	WB1X271		Nut Mtg Cap		Appelez-nous	-
5	WB49X5235		Tub And Shield Asm. Lh		Appelez-nous	-
6	WB49X5236		Tub And Shield Asm. Rh		Appelez-nous	-
7	WB7X6730		Trim Upper		Appelez-nous	-
8	WB7X6731		Trim Lower		Appelez-nous	-
9	WZ05X0134		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
9	WB7X6732		End Cap Lh		Appelez-nous	-
9	WB7X6733		End Cap Rh		Appelez-nous	-
10	WB2X3191		Gasket		Appelez-nous	-
10	WB36X5443		Crystal		Appelez-nous	-
11	WB7X6757		Trim Control Panel		Appelez-nous	-
12	WB2X6760		Clip Trim		Appelez-nous	-
13	WB1X5550		Scr 8/32 Tf Flr 1/4 S		Appelez-nous	-
13	WB2X6823		Barrier Switch		Appelez-nous	-
13	5500-200		Switch, Inf Surface Unit   (Replaces: WB21X237)			Immediately	$ 60.94
14	WB2X3383		Seal Switch		Appelez-nous	-
15	WB3X5615		Knob S.u. Switch		Appelez-nous	-
16	WB24X5139		Switch Latch Release		Appelez-nous	-
16	WB1X588		Lockwasher Switch		Appelez-nous	-
17	WB1X246		Switch Nut		Appelez-nous	-
18	WB2X6239		Surface Light Bracket		Appelez-nous	-
19	WB2X1608		Neon Lamp 118v				$ 31.65
19	WB2X1609		Lamp, Indicator		Appelez-nous	-
20	WB2X1185		Clip Lamp		Appelez-nous	-
21	WB1X5547		Scr 8/32 Tf Flr 5/16 S		Appelez-nous	-
21	WB22X5090		Switch, Oven		Appelez-nous	-
22	WB3X5616		Knob Oven Switch		Appelez-nous	-
23	WB1X5505		Speednut		Appelez-nous	-
23	WB25X65		Jewel		Appelez-nous	-
24	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
24	WB19X5246		Timer Digital		Appelez-nous	-
25	WB36X5444		Crystal Timer		Appelez-nous	-
26	WB2X2901		Clip Crystal		Appelez-nous	-
27	WB3X459		Knob Timer		Appelez-nous	-
28	WB2X6713		Support Capillary		Appelez-nous	-
28	WB24X184		Thermostat, Dual		Appelez-nous	-
28	WB2X6937		Sleeve		Appelez-nous	-
29	WB3X5569		Knob Thermostat		Appelez-nous	-
30	WZ05X0252		Screw Mtg. Grill		Appelez-nous	-
30	WB7X6739		Grill		Appelez-nous	-
31	WZ06X0038		Scr 8-18 Ab Hxw 5/8 S		Appelez-nous	-
31	WB7X6737		Deflector		Appelez-nous	-
32	WS01A01150		Screw (cr)   (Replaces: WB1X5364)				$ 3.97
32	WB49X5237		Guard Wire		Appelez-nous	-
33	WB62X5286		Plate Top		Appelez-nous	-
33	WZ04X0209		Handle Screw		Appelez-nous	-
100	WB1X5551		Screw Terminal		Appelez-nous	-
100	PS240M		Surface Unit, 8"   (Replaces: WB30X219)			Immediately	$ 44.95
101	WB32X51		Center Trim 8" Unit		Appelez-nous	-
102	WB30X218		Surface Unit, 6"		Appelez-nous	-
102	WB1X5551		Screw Terminal		Appelez-nous	-
103	WB31X5011		Pan Ring 8" Chrome		Appelez-nous	-
104	WB31X5010		Pan Ring 6" Chrome		Appelez-nous	-
105	WB5X5026		Spring Contact Pkg		Appelez-nous	-
105	WB17X5051		Receptacle Asm		Appelez-nous	-
106	WB2X6171		Insulator		Appelez-nous	-
107	WB2X6172		Clip Insulator		Appelez-nous	-
108	WB49X5234		Pan Unit		Appelez-nous	-
109	WB17X5066		Bracket & Pin Asm		Appelez-nous	-
110	WB17X5067		Terminal		Appelez-nous	-
110	WB1X5551		Screw Terminal		Appelez-nous	-
111	WB2X6925		Duct, Exhaust		Appelez-nous	-
112	WB2X6953		Block Terminal		Appelez-nous	-
113	WB32X5043		Grille		Appelez-nous	-
114	WB49X5247		Griddle		Appelez-nous	-
115	WB30X5069		Contact Unit Asm		Appelez-nous	-
115	WB30X5070		Unit-grille-griddle-208v		Appelez-nous	-
116	WB1X5549		Speednut		Appelez-nous	-
117	WB2X6936		Block Terminal 4 Pin		Appelez-nous	-
117	WB2X6954		Barrier		Appelez-nous	-
118	WB18X5065		Lead Hi Temp		Appelez-nous	-
119	WB32X5044		Reflector		Appelez-nous	-
120	WB49X5246		Broil Pan Small		Appelez-nous	-
121	WB2X6938		Clip Terminal Block		Appelez-nous	-
122	WB5X5027		Contact Terminal Block		Appelez-nous	-
123	WB17X5068		Block Terminal		Appelez-nous	-
124	WB32X52		Center Trim 6" Unit		Appelez-nous	-
288	WB1X119		Washer Contoured		Appelez-nous	-
360	WB2X3253		Mullion Unit Clip		Appelez-nous	-
360	WB44X5087		Mullion Unit		Appelez-nous	-
361	WB48X5061		Shelf - Offset		Appelez-nous	-
361	WB48X5031		Shelf - Straight		Appelez-nous	-
402	WB1X500		Terminal Screw		Appelez-nous	-
402	WB44X5074		Broil Unit 240v L.o.		Appelez-nous	-
500	WB26X5064		Motor Rotisserie		Appelez-nous	-
501	WB49X5264		Support Rear		Appelez-nous	-
502	WB49X5263		Support Front		Appelez-nous	-
503	WB49X5265		Panel Side		Appelez-nous	-
504	WB2X7023		Spit		Appelez-nous	-
505	WB2X1167		Skewer Asm		Appelez-nous	-
506	WB1X5571		Screw Thumb		Appelez-nous	-
507	WB15X80		Handle Spit		Appelez-nous	-
