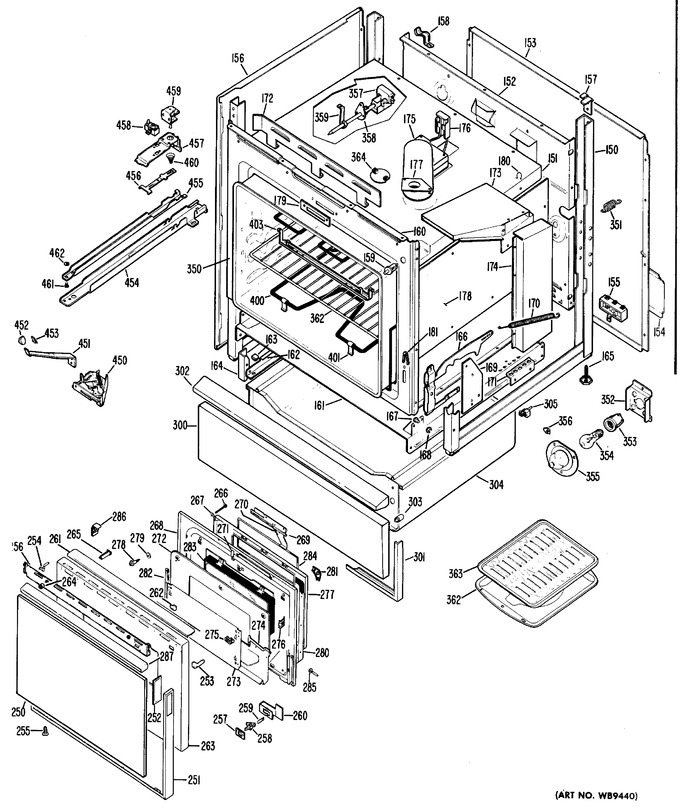

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Component Group
2 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 150 | WB63X5202 | "u" Frame |
|
- | |||||
| 151 | WB49X5242 | Guard, Top Insulation |
|
- | |||||
| 152 | WB49X5245 | Guard Asm, Back |
|
- | |||||
| 153 | WB49X5248 | Cover Back |
|
- | |||||
| 153 | WZ04X0345 | Screw Mtg. Cover |
|
- | |||||
| 154 | WB49X5249 | Cover Access |
|
- | |||||
| 155 | WB17X168 | Block Terminal |
|
- | |||||
| 155 | WB2X646 | Plate Ground |
|
- | |||||
| 155 | WZ04X0348 | Screw Mtg. Block |
|
- | |||||
| 156 | WB56X5869 | Panel Side Ha |
|
- | |||||
| 156 | WB2X6941 | Clip Mounting Side Panel |
|
- | |||||
| 156 | WB56X5868 | Panel Side Wh |
|
- | |||||
| 156 | WB56X5870 | Panel Side Ad |
|
- | |||||
| 157 | WB2X6947 | Catch Cooktop - Rh |
|
- | |||||
| 157 | WB2X6948 | Catch Cooktop - Lh |
|
- | |||||
| 158 | WB2X3018 | Clip Lead |
|
- | |||||
| 159 | WB24X105 | Switch Oven Light |
|
- | |||||
| 160 | WB56X5867 | Oven Front |
|
- | |||||
| 161 | WB49X5239 | Guard Lower Insulation |
|
- | |||||
| 162 | WB39X5008 | Guide Drawer |
|
- | |||||
| 163 | WB2X5115 | Slide-nylon(at Front Of Guide) |
|
- | |||||
| 164 | WB49X5238 | Filler Frame |
|
- | |||||
| 165 | WB1X5533 | Leveling Leg |
|
- | |||||
| 166 | WB10X5128 | Hinge Asm. Lh |
|
- | |||||
| 166 | WB10X5129 | Hinge Asm. Rh |
|
- | |||||
| 167 | WB2X5682 | Hinge Pin For Service 3/16" Dia. |
|
- | |||||
| 168 | WB2X5681 | Retaining Ring For Hinge Pin |
|
- | |||||
| 169 | WB10X5130 | Hinge Support Asm. Lh |
|
- | |||||
| 169 | WB10X5131 | Hinge Support Asm. Rh |
|
- | |||||
| 170 | WB9X5090 | Spring Door |
|
- | |||||
| 171 | WB2X6946 | Bracket Spring |
|
- | |||||
| 172 | WB2X6942 | Barrier Wire |
|
- | |||||
| 173 | WB49X5240 | Duct Asm. Exhaust |
|
- | |||||
| 174 | WB49X5241 | Duct Intake |
|
- | |||||
| 175 | WB29X5010 | Smoke Eliminator |
|
- | |||||
| 176 | WB2X3388 | Insulator Terminal |
|
- | |||||
| 177 | WB2X6943 | Gasket Smoke Eliminator |
|
- | |||||
| 178 | WB49X5244 | Guard Side Insulation - Lh |
|
- | |||||
| 178 | WB49X5243 | Guard Side Insulation - Rh |
|
- | |||||
| 179 | WB7X552 | Trim Latch |
|
- | |||||
| 180 | WB2X6944 | Clip Lead |
|
- | |||||
| 181 | WB2X6342 | Guide Hinge Lever |
|
- | |||||
| 250 | WB36X5379 | Glass-black |
|
- | |||||
| 251 | WB7X5625 | Trim Door |
|
- | |||||
| 252 | WB2X6573 | Pad - Trim |
|
- | |||||
| 253 | WB2X6574 | Clip - Trim (4) |
|
- | |||||
| 254 | WB2X6575 | Clip - Strim (2) |
|
- | |||||
| 255 | WZ04X0345 | Screw Mt. Trim Bottom |
|
- | |||||
| 256 | WB7X5623 | Trim Door |
|
- | |||||
| 257 | WB7X5624 | Trim Toggle |
|
- | |||||
| 258 | WB2X3052 | Toggle |
|
- | |||||
| 259 | WB2X5217 | Link |
|
- | |||||
| 260 | WB9X5089 | Spring Cam |
|
- | |||||
| 261 | WB7X5636 | Trim - Top |
|
- | |||||
| 262 | WB2X3053 | Speednut Mt. Trim |
|
- | |||||
| 263 | WB56X1351 | Panel |
|
- | |||||
| 263 | WB2X1222 | Pad |
|
- | |||||
| 264 | WB2X3258 | Grommet |
|
- | |||||
| 265 | WB2X6204 | Spacer |
|
- | |||||
| 266 | WZ04X0385 | Screw Mt. Handle |
|
- | |||||
| 267 | WB1X119 | Washer |
|
- | |||||
| 268 | WB2X3047 | Reflector Liner |
|
- | |||||
| 268 | WB55X5235 | Door Liner |
|
- | |||||
| 268 | WB2X6940 | Hinge Receptacle Shim |
|
- | |||||
| 268 | WB2X3134 | Insulation Door |
|
- | |||||
| 269 | WB2X3045 | Cover Guard & Rivet Asm. |
|
- | |||||
| 269 | WZ04X0304 | Screw Mt. Cover Asm. |
|
- | |||||
| 270 | WB9X128 | Spring |
|
- | |||||
| 271 | WB9X154 | Strike Spring |
|
- | |||||
| 272 | WB55X378 | Guard Insulation |
|
- | |||||
| 273 | WB55X401 | Shield |
|
- | |||||
| 274 | WB15X144 | Handle Shield Lh |
|
- | |||||
| 274 | WZ05X0134 | Screw Mt. Handle |
|
- | |||||
| 274 | WB15X143 | Handle Shield Rh |
|
- | |||||
| 275 | WZ04X0413 | Screw Mt. Slide Bottom |
|
- | |||||
| 275 | WB2X3040 | Slide |
|
- | |||||
| 275 | WZ05X0134 | Screw Mt. Slide Top |
|
- | |||||
| 276 | WB2X6270 | Spacer Door |
|
- | |||||
| 277 | WB2X2276 | Reflector Foil |
|
- | |||||
| 277 | WB55X5236 | Panel Inner |
|
- | |||||
| 278 | WB1X547 | Shoulder Screw |
|
- | |||||
| 279 | WB1X548 | Washer For S. Shoulder |
|
- | |||||
| 280 | WB2X3138 | Gasket Door |
|
- | |||||
| 281 | WZ04X0413 | Screw Mt. Bracket |
|
- | |||||
| 281 | WB2X2616 | Bracket Gasket |
|
- | |||||
| 282 | WB2X3041 | Guide & Spring Asm. - Lh |
|
- | |||||
| 282 | WZ04X0345 | Screw Mt. Guide |
|
- | |||||
| 282 | WB2X3042 | Guide & Spring Asm. - Rh |
|
- | |||||
| 283 | WB36X448 | Window |
|
- | |||||
| 283 | WZ04X0345 | Screw Mt. Window |
|
- | |||||
| 284 | WB2X3048 | Gasket Window |
|
- | |||||
| 285 | WB2X3285 | Pad Socket |
|
- | |||||
| 285 | WB1X558 | Screw - Liner Socket |
|
- | |||||
| 286 | WB7X5631 | Cap Trim |
|
- | |||||
| 287 | WB15X5102 | Handle |
|
- | |||||
| 300 | WB56X5871 | Panel - Black |
|
- | |||||
| 301 | WB7X6738 | Trim |
|
- | |||||
| 301 | WB1X5166 | Screw Mtg. Trim |
|
- | |||||
| 302 | WB15X5124 | Handle |
|
- | |||||
| 302 | WS01A01150 | Screw Mtg. Handle (Replaces: WB1X5364) |
|
$ 3.97 | |||||
| 303 | WB2X5521 | Bumper |
|
- | |||||
| 304 | WB58X5003 | Drawer |
|
- | |||||
| 305 | WB2X5116 | Slide - Drawer - Nylon |
|
- | |||||
| 350 | WB2X6949 | Insulation Oven |
|
- | |||||
| 350 | WB53X5083 | Oven Liner |
|
- | |||||
| 351 | WB9X5022 | Spring Oven Liner |
|
- | |||||
| 352 | WB2X6945 | Bracket Lamp |
|
- | |||||
| 353 | WB8X5060 | Receptacle |
|
- | |||||
| 355 | WG02F04576 | Lamp Cover Asm. (Replaces: WB36X192) |
|
$ 20.65 | |||||
| 356 | WZ04X0361 | Screw Mtg. Lamp Cover |
|
- | |||||
| 356 | WB2X1659 | Speednut Mtg. Lamp Cover |
|
- | |||||
| 357 | WB24X5135 | Thermal Switch |
|
- | |||||
| 357 | WB2X6951 | Sleeve |
|
- | |||||
| 358 | WB2X3163 | Gasket |
|
$ 22.50 | |||||
| 358 | WB2X3164 | Plate Mounting |
|
- | |||||
| 359 | WB2X6950 | Hanger |
|
- | |||||
| 362 | WB49X88 | Broil Pan |
|
- | |||||
| 363 | WB48X5002 | Rack Broil Pan |
|
- | |||||
| 364 | WB2X1626 | Baffle Vent |
|
- | |||||
| 400 | WB1X500 | Screw Terminals |
|
- | |||||
| 400 | UB813 | Bake Unit (Replaces: WB44X5083) |
|
Immediately | $ 49.95 | ||||
| 401 | WB2X5729 | Foot - Bake Unit |
|
- | |||||
| 403 | WB2X1452 | Support Boil |
|
- | |||||
| 450 | WB14X36 | Latch Asm. |
|
- | |||||
| 451 | WB15X5131 | Handle |
|
- | |||||
| 451 | WB1X438 | Screw Mt. Handle |
|
- | |||||
| 452 | WB3X322 | Knob |
|
- | |||||
| 453 | WG02A00753 | Retainer Knob (Replaces: WB2X2030) |
|
$ 4.20 | |||||
| 454 | WB2X3174 | Channel - Latch |
|
- | |||||
| 455 | WB2X3175 | Channel Locking |
|
- | |||||
| 456 | WB2X3159 | Pawl Locking |
|
- | |||||
| 457 | WB2X3176 | Plate - Mounting |
|
- | |||||
| 457 | WZ04X0362 | Screw Channel To Latch |
|
- | |||||
| 457 | WB1X438 | Screw Mt. Plate |
|
- | |||||
| 458 | WB1X561 | Screw Mt. Switch |
|
- | |||||
| 458 | WB24X183 | Switch Latch |
|
- | |||||
| 459 | WB1X438 | Screw Mt. Coil |
|
- | |||||
| 459 | WB24X197 | Solenoid Coil |
|
- | |||||
| 460 | WB9X148 | Spring |
|
- | |||||
| 461 | WB2X6212 | Pivot Stud |
|
- | |||||
| 462 | WS01A02255 | Screw - Latch Rear (Replaces: WB1X536) |
|
$ 3.97 | |||||
| 462 | WB2X1800 | Retaining Ring |
|
- |
