SELECT A DIAGRAM

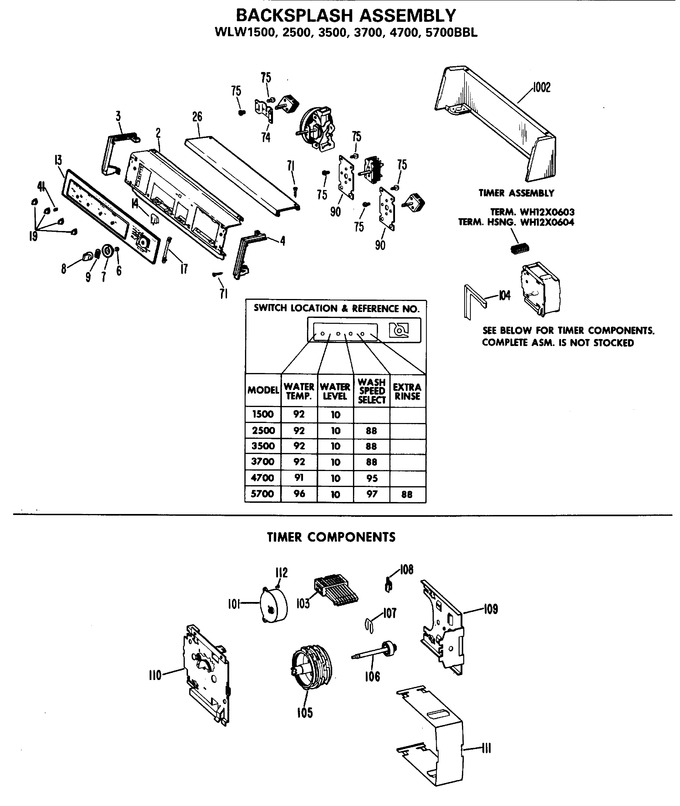

1 - Backsplash Assembly


2 - Backsplash Assembly


3 - Tub, Basket And Agitator


4 - Cabinet And Suspension Asm.


5 - Transmission - Complete Breakdown


6 - 2-speed


7 - Sudsave Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2005		Trim End Lh		Appelez-nous	-
4	WH42X2006		Trim End Rh		Appelez-nous	-
6	WH2X650		Ring Compression K		Appelez-nous	-
7	WH11X91		Dial Asm		Appelez-nous	-
8	WH1X2119		Knob Asm		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
13	WH42X2126		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Ground		Appelez-nous	-
17	WE1X577		Clip Trim		Appelez-nous	-
19	WH1X2274		Knob And Clip Asm		Appelez-nous	-
26	WH42X2004		Trim Top		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
46	WZ04X0238		Scr 8-18 Ab Hx 1/2 S		Appelez-nous	-
70	WH2X937		Scr 10-15 A Hxw 7/16 S		Appelez-nous	-
71	WH2X947		Scr 8-18 Ab Opr 3/4 S		Appelez-nous	-
72	WH46X212		Backsplash Wrapper Ad		Appelez-nous	-
72	WH46X211		Backsplash Wrapper Wh		Appelez-nous	-
72	WH46X215		Backsplash Wrapper Ha		Appelez-nous	-
74	WE13X137		Bracket Switch		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
100	WH12X929		Timer Asm		Appelez-nous	-
179	WZ04X0288		Scr 10-16 Bt Hxw 1/2 S		Appelez-nous	-
357	WH1X2187		Stop Cover		Appelez-nous	-
546	WH12X604		Housing Terminal		Appelez-nous	-
548	WB17X151		Terminal		Appelez-nous	-
550	WE2X281		Scr 8-18 Ab Hxw 3/8 S		Appelez-nous	-
551	WH12X417		Housing Terminal		Appelez-nous	-
554	WB17X5054		Terminal		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
560	WH12X603		Terminal		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
601	WH1X1722		Coupling Flexible		Appelez-nous	-
629	WH17X86		Mount Motor		Appelez-nous	-
735	WH8X291K		Seal Activator Shaft Asm   (Replaces: WH8X291)				$ 8.85
736	WP9703438		Ring Retaining   (Replaces: WH2X786)			Immediately	$ 4.23
737	WH2X207		Washer Flat		Appelez-nous	-
738	WH40X148		Shaft Agitator 14#		Appelez-nous	-
739	WH4X85		Bearing Asm Agit Shaft		Appelez-nous	-
741	WH1X1834		Key		Appelez-nous	-
742	WH4X93		Bearing Asm Agit Shaft		Appelez-nous	-
744	WH40X159		Shaft Pinion		Appelez-nous	-
745	WH40X157		Tube Spin		Appelez-nous	-
746	WH1X2335		Retainer Spring		Appelez-nous	-
747	WH1X1842		Spring Latch		Appelez-nous	-
748	WH10X45		Latch Slide		Appelez-nous	-
749	WZ11X0055		Pin Roll		Appelez-nous	-
750	WH7X46		Pulley & Sleeve Asm		Appelez-nous	-
751	WH2X671		Washer Flat Seal				$ 2.08
752	WH2X659		Nut Lock		Appelez-nous	-
753	WH2X201		Washer Flat		Appelez-nous	-
758	WH8X242		Gasket Gear Case Cover		Appelez-nous	-
759	WH40X149		Shaft Crank Gear		Appelez-nous	-
761	WH4X81		Bearing		Appelez-nous	-
762	WH7X57		Hub Clutch		Appelez-nous	-
763	WH7X58		Spring Clutch		Appelez-nous	-
764	WH1X2147		Tube Latch		Appelez-nous	-
765	WH40X145		Shaft Dual Gear		Appelez-nous	-
766	WH40X146		Shaft Sector Gear		Appelez-nous	-
768	WZ13X0032		Ring Retaining		Appelez-nous	-
771	WH39X40		Gear Case Cover & Hdwr.		Appelez-nous	-
774	WH1X2083		Clamp Hub		Appelez-nous	-
775	WZ01X0032		Scr 5/16-24 Cap Hx1 1/2s		Appelez-nous	-
32767	WH60X11		Lubricant		Appelez-nous	-
32767	WH44X977		Lid Cf		Appelez-nous	-
32767	WH46X197		Apron & Brace Asm Fa		Appelez-nous	-
32767	WG04A01311		Washer Flat   (Replaces: WH1X1986)			Immediately	$ 4.65
32767	WH46X196		Apron & Brace Asm Cf		Appelez-nous	-
32767	WH0X551		Band & Lining Asm		Appelez-nous	-
32767	WH1X1092		Ps Restrictor-drain Hose		Appelez-nous	-
32767	WH44X978		Lid Fa		Appelez-nous	-
32767	WZ10X0018		Washer Flat		Appelez-nous	-
32767	WH46X214		Backsplash Wrapper Fa		Appelez-nous	-
32767	WH2X935		Scr		Appelez-nous	-
32767	WH1X1862		Clamp Yoke		Appelez-nous	-
32767	WH46X248		Backsplash Wrapper Sl		Appelez-nous	-
32767	WH46X247		Backsplash Wrapper Ds		Appelez-nous	-
32767	WH2X820		Scr 1/4-14 Hx 3/4 S		Appelez-nous	-
32767	39-9238		Pm Use & Care Book		Appelez-nous	-
32767	WH0X529		Flange Rear Base		Appelez-nous	-
32767	WH60X15		Adhesive			Immediately	$ 47.25
32767	WH0X526		Pk Pack Asm Installation		Appelez-nous	-
32767	31-2400		Pm Instruction Instl		Appelez-nous	-
32767	WH60X12		Adhesive		Appelez-nous	-
32767	WH5X188		Link		Appelez-nous	-
32767	WH46X188		Leg & Strap Asm		Appelez-nous	-
32767	WH46X213		Backsplash Wrapper Cf		Appelez-nous	-
32767	WH41X58		Hose Intake Asm		Appelez-nous	-
32767	WH8X281		Seal		Appelez-nous	-
32767	WH44X982		Cover Asm Fa		Appelez-nous	-
32767	WH44X981		Cover Asm Cf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
