SELECT A DIAGRAM

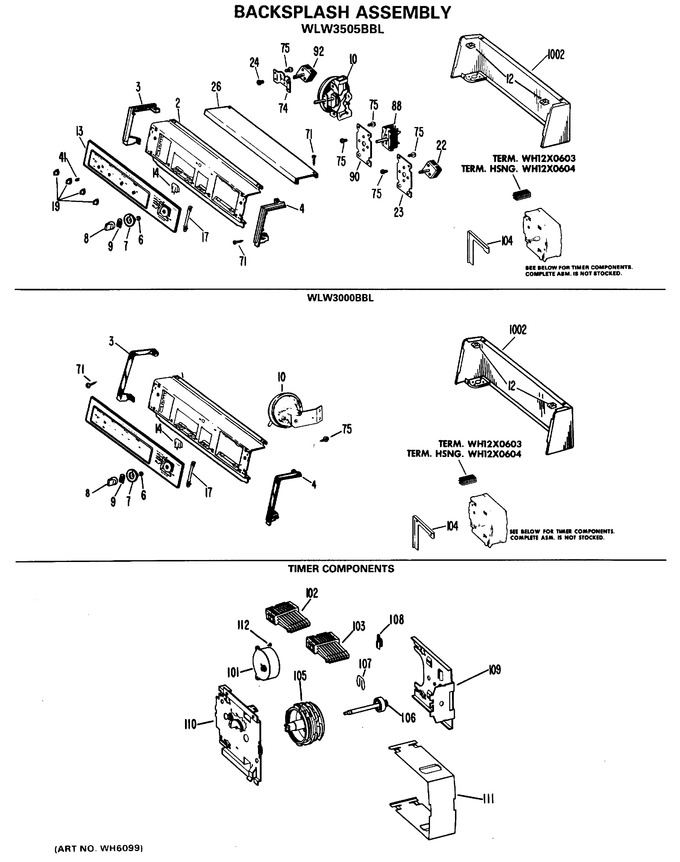

1 - Backsplash Assembly


2 - Backsplash Assembly


3 - Tub, Basket And Agitator


4 - Cabinet And Suspension Asm.


5 - Transmission - Complete Breakdown


6 - 2-speed


7 - Sudsave Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WE19X719		Escutcheon Asm		Appelez-nous	-
3	WH42X2005		Trim End Lh		Appelez-nous	-
4	WH42X2006		Trim End Rh		Appelez-nous	-
6	WH2X650		Ring Compression K		Appelez-nous	-
7	WH11X91		Dial Asm		Appelez-nous	-
8	WH1X2119		Knob Asm		Appelez-nous	-
9	WG04A00788		Clip Spring   (Replaces: WH1X2117)			Immediately	$ 4.04
10	WH12X727		Switch Water Level Rot/3		Appelez-nous	-
12	WB1X358		Nut Sheet Metal		Appelez-nous	-
13	WH42X2126		Switch Trim Asm		Appelez-nous	-
14	WE1X762		Clip Ground		Appelez-nous	-
17	WE1X577		Clip Trim		Appelez-nous	-
19	WH1X2274		Knob And Clip Asm		Appelez-nous	-
24	WZ02X0510		Scr 8-32 M Hx 3/16 S		Appelez-nous	-
26	WH42X2004		Trim Top		Appelez-nous	-
41	WE1X980		Clip Knob		Appelez-nous	-
71	WH2X947		Scr 8-18 Ab Opr 3/4 S		Appelez-nous	-
72	WH46X215		Backsplash Wrapper Ha		Appelez-nous	-
72	WH46X211		Backsplash Wrapper Wh		Appelez-nous	-
72	WH46X212		Backsplash Wrapper Ad		Appelez-nous	-
74	WE13X137		Bracket Switch		Appelez-nous	-
75	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
92	WH12X725		Switch Asm Rotary		Appelez-nous	-
104	WH16X433		Bracket Timer Mounting		Appelez-nous	-
32767	WH46X247		Backsplash Wrapper Ds		Appelez-nous	-
32767	WH46X248		Backsplash Wrapper Sl		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
