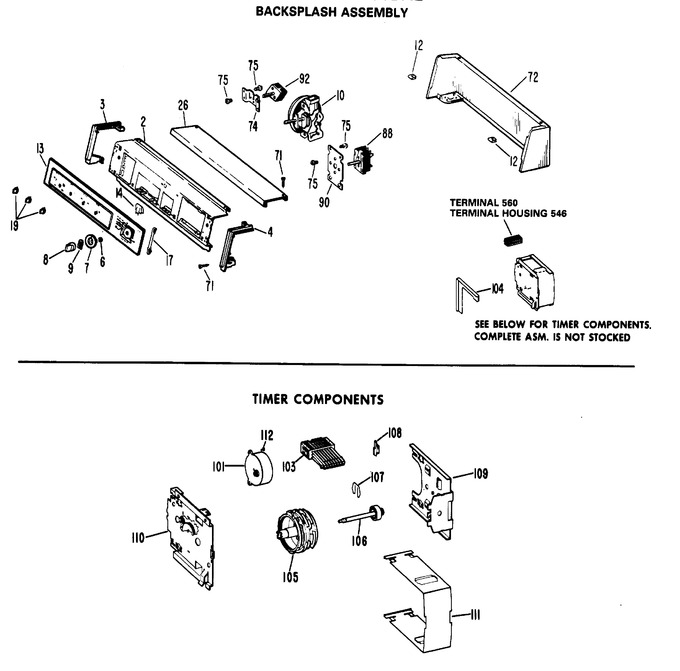

1 - Backsplash Assembly
2 - Cabinet And Suspension Asm.
3 - Tub,basket And Agitator
4 - Transmission-complete Breakdown
5 - 2 Speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WE19X719 | Escutcheon Asm |
|
- | |||||
| 3 | WH42X2005 | Trim End Lh |
|
- | |||||
| 4 | WH42X2006 | Trim End Rh |
|
- | |||||
| 6 | WH2X650 | Ring Compression K |
|
- | |||||
| 7 | WH11X91 | Dial Asm |
|
- | |||||
| 8 | WH1X2119 | Knob Asm |
|
- | |||||
| 9 | WG04A00788 | Clip Spring (Replaces: WH1X2117) |
|
Immediately | $ 4.04 | ||||
| 10 | WH12X726 | Switch Asm Press Rotary |
|
- | |||||
| 12 | WB1X358 | Nut Sheet Metal |
|
- | |||||
| 13 | WH42X2124 | Switch Trim Asm |
|
- | |||||
| 14 | WE1X762 | Clip Ground |
|
- | |||||
| 17 | WE1X577 | Clip Trim |
|
- | |||||
| 19 | WH1X2274 | Knob & Clip Asm |
|
- | |||||
| 26 | WH42X2004 | Trim Top |
|
- | |||||
| 41 | WE1X980 | Clip Knob |
|
- | |||||
| 46 | WZ04X0238 | Scr 8-18 Ab Hx 1/2 S |
|
- | |||||
| 71 | WH2X947 | Scr 8-18 Ab Opr 3/4 S |
|
- | |||||
| 72 | WH46X212 | Backsplash Wrapper Ad |
|
- | |||||
| 72 | WH46X215 | Backsplash Wrapper Ha |
|
- | |||||
| 72 | WH46X211 | Backsplash Wrapper Wh |
|
- | |||||
| 74 | WE13X137 | Bracket Switch |
|
- | |||||
| 75 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.97 | ||||
| 88 | WE4X605 | Switch Asm Rotary |
|
- | |||||
| 90 | WH16X434 | Bracket Switch |
|
- | |||||
| 92 | WH12X725 | Switch Asm Rotary |
|
- | |||||
| 100 | WH12X930 | Timer Asm |
|
- | |||||
| 104 | WH16X474 | Bracket Timer Mtg |
|
- | |||||
| 150 | WZ20X0007 | Hanger Cable |
|
- | |||||
| 179 | WZ04X0288 | Scr 10-16 Bt Hxw 1/2 S |
|
- | |||||
| 394 | WH44X976 | Lid Ad |
|
- | |||||
| 394 | WH44X979 | Lid Ha |
|
- | |||||
| 394 | WH44X525 | Lid Wh |
|
- | |||||
| 546 | WH12X604 | Housing Terminal |
|
- | |||||
| 550 | WE2X281 | Scr 8-18 Ab Hxw 3/8 S |
|
- | |||||
| 554 | WB17X5054 | Terminal |
|
- | |||||
| 560 | WH12X603 | Terminal Special |
|
- | |||||
| 635 | WH12X533 | Coil Asm |
|
- | |||||
| 772 | WH8X347 | Seal Asm Drive Tube |
|
- | |||||
| 776 | WH37X36 | Gear Case Asm |
|
- | |||||
| 32767 | 39-9283 | Pm Manual Use & Care |
|
- | |||||
| 32767 | 31-2273 | Mini Manual |
|
- |
