1 - Backsplash Assembly
2 - Cabinet And Suspension Asm.

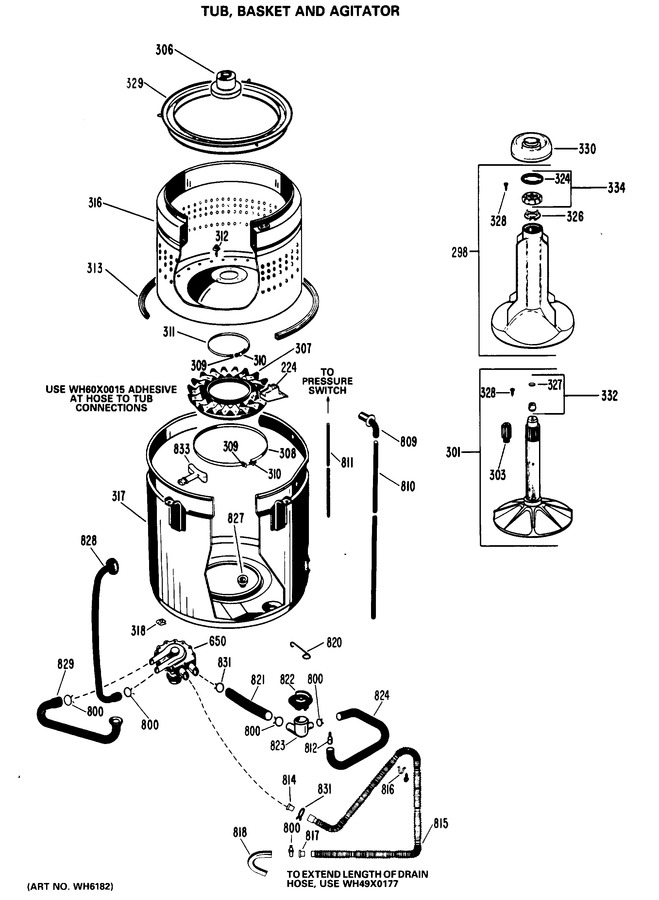

3 - Tub,basket And Agitator
4 - Transmission-complete Breakdown
5 - 2 Speed
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 224 | WH1X2045 | Funnel Tub |
|
- | |||||
| 298 | WH43X103 | Agitator Asm 0uter |
|
- | |||||
| 301 | WH43X104 | Agitator Asm Inner |
|
- | |||||
| 303 | WH1X1944 | Coupling Asm Agitator |
|
- | |||||
| 306 | WH8X292 | Boot Hub |
|
- | |||||
| 307 | WH8X246 | Boot Mech |
|
- | |||||
| 308 | WH1X1580 | Clamp Asm |
|
- | |||||
| 309 | WH2X935 | Scr |
|
- | |||||
| 310 | WH2X936 | Nut |
|
- | |||||
| 311 | WH1X1292 | Clamp Asm |
|
$ 6.25 | |||||
| 312 | WH2X681 | Scr 5/16-18 Hx 7/8 S |
|
- | |||||
| 313 | WG04L01700 | Gasket Tub (Replaces: WH8X305) |
|
$ 15.96 | |||||
| 316 | WH45X99 | Basket Asm Lg Capacity |
|
- | |||||
| 317 | WH45X116 | Tub Asm |
|
- | |||||
| 318 | WL02X0071 | Nut Sheet Metal |
|
- | |||||
| 324 | WH1X2273 | Insert Asm |
|
- | |||||
| 326 | WH43X96 | Ring Slide |
|
- | |||||
| 327 | WH1X2272 | Insert Asm |
|
- | |||||
| 328 | WH2X871 | Scr 8-16 B Pr 1/2 Ss |
|
- | |||||
| 329 | WH1X2518 | Ring Filter |
|
- | |||||
| 330 | WH47X40 | Rinse Agent Dispenser |
|
- | |||||
| 332 | WH43X95 | Cap Agitator |
|
- | |||||
| 334 | WH43X97 | Ring Pull Cb |
|
- | |||||
| 650 | WH23X42 | Pump Asm |
|
$ 138.00 | |||||
| 800 | WH1X2036 | Clamp Hose M |
|
- | |||||
| 809 | WH8X253 | Nozzle Overflow |
|
- | |||||
| 810 | WH1X1807 | Tube Overflow |
|
- | |||||
| 811 | WH41X128 | Hose Switch |
|
- | |||||
| 812 | WH1X1584 | Hose Reducer |
|
- | |||||
| 814 | WH41X158 | Adapter Hose |
|
- | |||||
| 815 | SSD6 | Hose Drain (Replaces: WH41X184) |
|
Immediately | $ 26.16 | ||||
| 816 | WH16X372 | Support Drain Hose |
|
- | |||||
| 817 | WH41X156 | Adapter Hose |
|
- | |||||
| 818 | WH49X266 | Nozzle Drain Pkg. |
|
- | |||||
| 820 | WH1X2435 | Hanger Chamber Hose |
|
- | |||||
| 821 | WH41X116 | Hose Drain Inlet |
|
- | |||||
| 822 | WH41X118 | Grommet Pump Elbow |
|
- | |||||
| 823 | WH41X139 | Elbow Pump |
|
- | |||||
| 824 | WH41X121 | Hose Chamber |
|
- | |||||
| 827 | WH1X1966 | Coupling Tub Hose |
|
- | |||||
| 828 | WH41X295 | Hose Recirculation |
|
- | |||||
| 829 | WH41X140 | Hose Recirc Inlet |
|
- | |||||
| 831 | WH1X2036 | Clamp Hose |
|
- | |||||
| 833 | WH41X172 | Nozzle Recirc |
|
- |
