SELECT A DIAGRAM

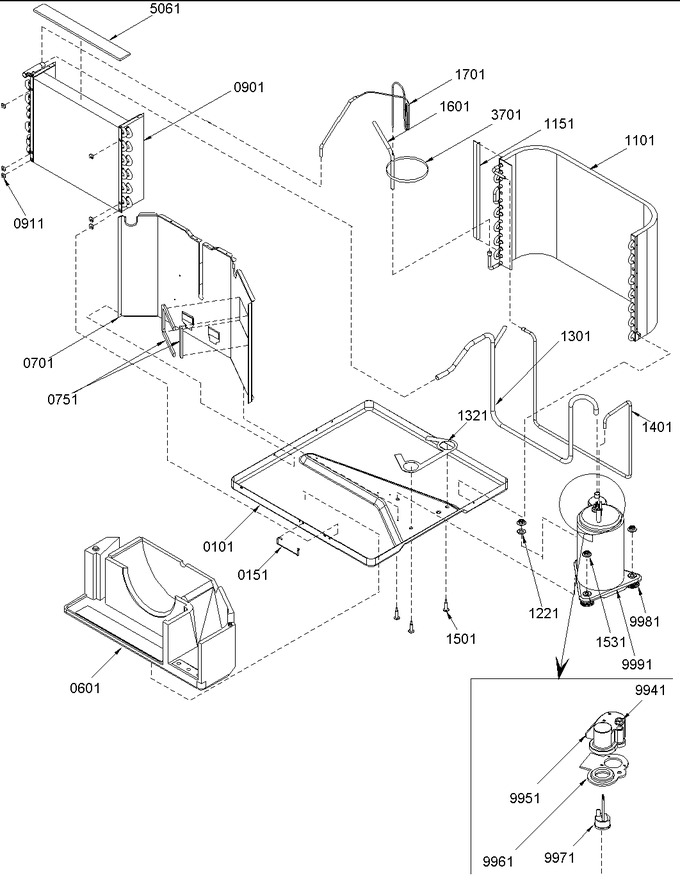

01 - Chassis Assembly


02 - Chassis Assembly


03 - Control Assembly


04 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	20070805		Basepan		Appelez-nous	-
151	20088701		Handle, Basepan		Appelez-nous	-
601	20062601		Sub To 20062602 Scroll		Appelez-nous	-
701	20062507		Panel, Partition		Appelez-nous	-
751	10839705		Gasket (1=1ft.)		Appelez-nous	-
901	20062803		Assy, Evaporator		Appelez-nous	-
911	M0586001		Screw		Appelez-nous	-
1101	20073502		Condenser Assy		Appelez-nous	-
1151	Y20065008		Seal, Outer Strip		Appelez-nous	-
1301	20068903		Assy, Suction Tube		Appelez-nous	-
1321	20099502		Protector, Basepan		Appelez-nous	-
1401	20076702		Tube, Discharge		Appelez-nous	-
1501	20109101		Bolt, Shoulder		Appelez-nous	-
1531	20112901		Nut, Palnut		Appelez-nous	-
1601	B1394401		Strainer		Appelez-nous	-
1701	20089201		Assy, Capillary		Appelez-nous	-
3701	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
5061	10839816		Gasket, 1/4 X 1.75		Appelez-nous	-
9941	A9036601		Nut		Appelez-nous	-
9951	C6470701		Cover Terminal		Appelez-nous	-
9961	B1434901		Gasket, Term. Cover		Appelez-nous	-
9971	D6961630		Overload		Appelez-nous	-
9981	A3448601		Grommet. Comp		Appelez-nous	-
9991	D9831808		Comp-tc Rka5510exa		Appelez-nous	-
NI	10839716		Gasket 1/2 By 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
