SELECT A DIAGRAM

01 - Chassis Assembly


02 - Chassis Assembly


03 - Control Assembly

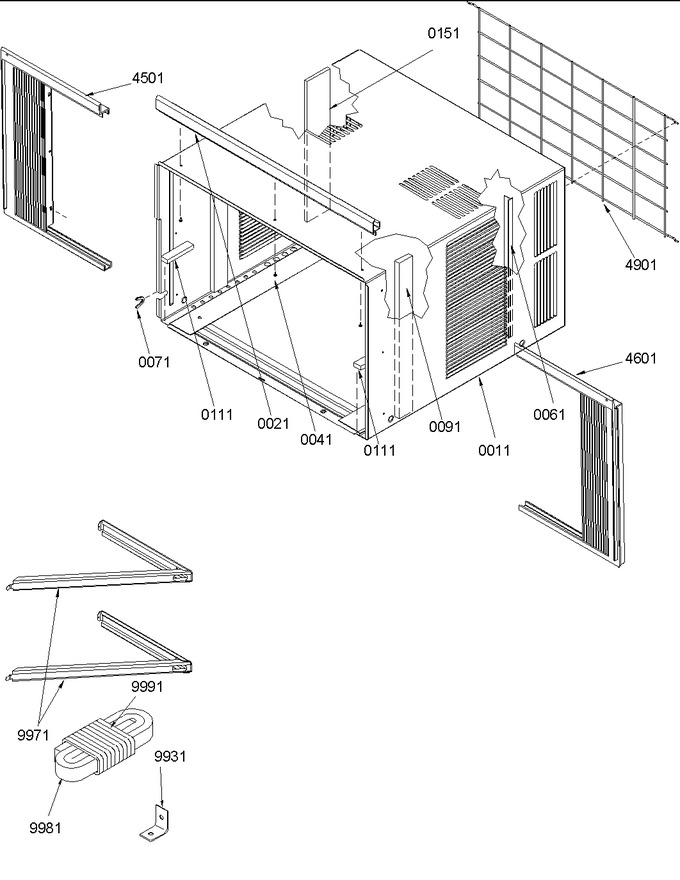

04 - Outer Case Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	20060201		Outercase, Box		Appelez-nous	-
21	20055102		Rail, Top V		Appelez-nous	-
41	WP693995		Screw, Sm Stl   (Replaces: M0245203)			Immediately	$ 7.55
61	Y20065008		Seal, Outer Strip		Appelez-nous	-
71	20075701		Grommet, Power Cord		Appelez-nous	-
91	10839707		Gasket		Appelez-nous	-
111	10839807		Gasket		Appelez-nous	-
151	10839818		Gasket, 5/16 X 2.625		Appelez-nous	-
4501	20055003		Curt Frame Assy-lh		Appelez-nous	-
4601	20055004		Curt Frame Assy-rh		Appelez-nous	-
4901	20063301		Grille, Rear Comp		Appelez-nous	-
9931	10661401		Brkt, Window Stop		Appelez-nous	-
9971	20061801		Brkt, Support		Appelez-nous	-
9981	10839702		Gasket		Appelez-nous	-
9991	10839720		Gasket .500 X .250		Appelez-nous	-
NI	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
NI	M0213032		Screw		Appelez-nous	-
NI	20065102		Clip, Basepan		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
NI	M0213531		Screw, Sm		Appelez-nous	-
NI	M0211020		Screw		Appelez-nous	-
NI	Y20064101		Sub 20064101a Drain		Appelez-nous	-
NI	10228314		Kit-window Mounting-curtains		Appelez-nous	-
NI	20054801		Foot, Adjusting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
