SELECT A DIAGRAM

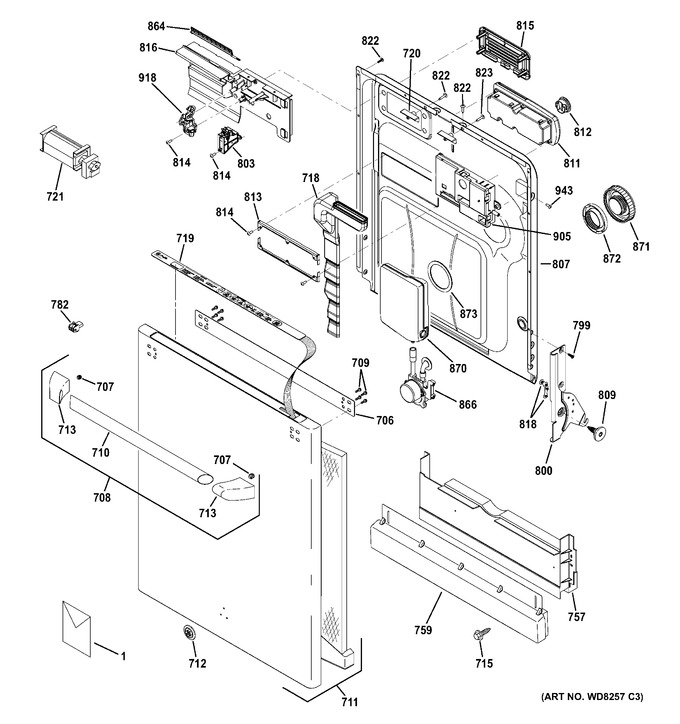

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-55042		Pm Manual Use & Care		Appelez-nous	-
1	WD01X10295		Strip Hardness Tester		Appelez-nous	-
1	31-30600		Pm Sheet Mini Manual		Appelez-nous	-
1	31-30233		Pm Instruction Install		Appelez-nous	-
706	WD01X10355		Handle Bracket		Appelez-nous	-
707	WR02X11850		Set Screw		Appelez-nous	-
708	WD13X10038		Handle Asm		Appelez-nous	-
709	WB01T10063		Screw 1/4-tpi Fl Hx 9/10		Appelez-nous	-
710	WD09X10058		Handle Ss		Appelez-nous	-
711	WD27X10230		Kit Door Panel		Appelez-nous	-
712	WS01A00013		Badge   (Replaces: WD34X11435)				$ 30.04
713	WD09X10059		End Cap Handle		Appelez-nous	-
715	WD02X10143		Scr 8-18 B 1hw 1/2 Sn Bk		Appelez-nous	-
718	WG04L01741		Insulated Exhaust Vent   (Replaces: WD12X10270)				$ 85.80
719	WD34X11393		Keypad		Appelez-nous	-
720	WD01X10236		Hanger Door		Appelez-nous	-
721	WG04F03674		Blower Dishwasher   (Replaces: WD26X10019)				$ 183.41
757	WD27X10217		Kit Toekick Asm		Appelez-nous	-
759	WG02F04151		Toekick Asm Ss   (Replaces: WD27X10218)				$ 196.01
782	WB17X5060		Terminal Block Assy (2 P		Appelez-nous	-
799	WD02X10149		Scr 10-32 Gxtt Flp.595 S		Appelez-nous	-
800	WD14X10021		Arm Hinge Rh Asm		Appelez-nous	-
800	WG04L01512		Arm Hinge Lh Asm   (Replaces: WD14X10016)				$ 217.35
803	WG02F02962		Latch   (Replaces: WD13X10031)				$ 82.11
807	WD31X10088		Door Inner Asm		Appelez-nous	-
809	WG04A01243		Scr 10-32 Gx Flt25.615 S   (Replaces: WD02X10150)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 171.12
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70
813	WG04A00035		Bracket Detergent Displa   (Replaces: WD01X10207)				$ 6.35
814	WD02X10104		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 30.18
816	WD12X10254		Vent Bracket Asm Ps		Appelez-nous	-
818	WD12X10025		Bearing Hinge Arm		Appelez-nous	-
822	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
823	WD2X322		Scr 8-18x7/8 Bt		Appelez-nous	-
864	WD12X10067		Flapper Vent		Appelez-nous	-
866	WG04L01599		Dispensing Det Asm   (Replaces: WD12X10209)				$ 253.30
870	WG01A00134		Service Kit Bottle   (Replaces: WD35X10065)				$ 193.30
871	WG04F01659		Cap Asm   (Replaces: WD12X10236)				$ 109.01
872	WD12X10212		Lock Nut Asm		Appelez-nous	-
873	WG04L01694		Gasket Fill Hole   (Replaces: WD08X10060)				$ 15.88
905	WD21X10269		Kit Control		Appelez-nous	-
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 69.95
943	WZ05X0219		Screw		Appelez-nous	-
	WG04L01925		Enjoliveur, Monogram				$ 33.35
	WG01L00289		Sump Inlet			Immediately	$ 83.70
	WG04F00333		Drain Tube Asm			Immediately	$ 92.96
	WG04F01196		Enjoliveur			Immediately	$ 38.12
	WG04F04700		Keypad				$ 263.37
	WG04L00487		Adaptor Pump Asm			Immediately	$ 50.92
	WG04L01684		Filter Sump & Cover Asm			Immediately	$ 135.93
	WG01F01562		Module Control Asm				$ 260.18

    View Diagram in Separate Window       Print Part List
