SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly

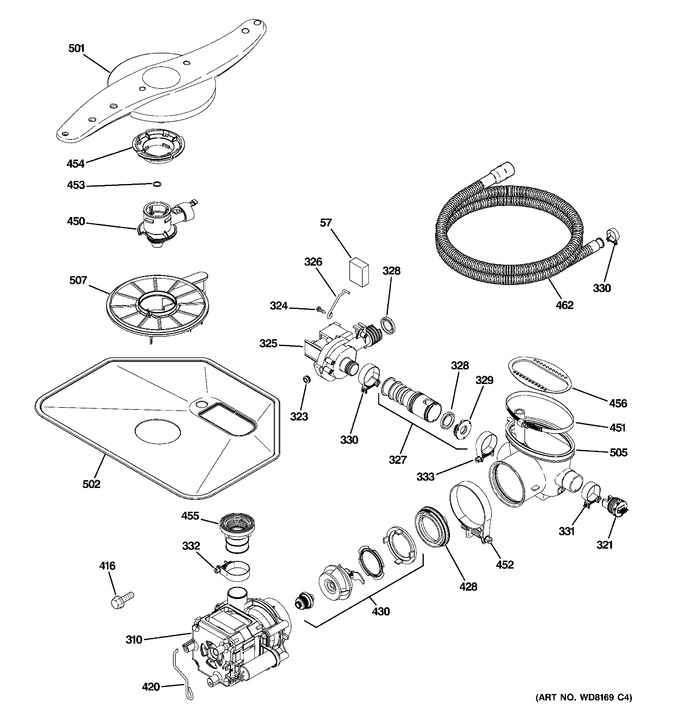

5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
57	WD01X10284		Block Foam		Appelez-nous	-
310	WD26X10027		Mechanism Asm		Appelez-nous	-
321	WD21X10272		Sensor Turbidity		Appelez-nous	-
323	WD01X10269		Grommet		Appelez-nous	-
324	WR01X10652		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
325	WD26X10037		Pump Drain Asm		Appelez-nous	-
326	WD01X10282		Hanger Drain Pump		Appelez-nous	-
327	WG04L00487		Adaptor Pump Asm   (Replaces: WD12X10189)			Immediately	$ 50.92
328	WD01X10178		Wd01x10175		Appelez-nous	-
329	WD01X10176		Seat Check Valve		Appelez-nous	-
330	WD01X10279		Clamp		Appelez-nous	-
331	WG04A00073		Clamp   (Replaces: WD01X10104)			Immediately	$ 12.71
332	WG04A00072		Clamp   (Replaces: WD01X10103)				$ 9.53
333	WD01X10335		Worm Gear Clamp		Appelez-nous	-
416	WD02X10161		Scr 10-32 X 1.031		Appelez-nous	-
420	WD01X10211		Hanger Mech Assy		Appelez-nous	-
428	WD12X10060		Ring Suction		Appelez-nous	-
430	WG02A00446		Kit - Impeller Asm   (Replaces: WD19X10038)				$ 118.07
450	WD18X10009		Hub Venturi Assy		Appelez-nous	-
451	WG04A01069		Clamp Sump   (Replaces: WD01X10210)				$ 19.06
452	WG04A00077		Clamp Hose   (Replaces: WD1X1392)				$ 15.88
453	WG04A01023		Bearing Spray Arm Low   (Replaces: WD01X10107)				$ 3.97
454	WG04A01182		Nut Hub Fine Filter   (Replaces: WD12X10061)			Immediately	$ 57.25
455	WG04F00179		Connector Pump Assy   (Replaces: WD18X10010)			Immediately	$ 52.48
456	WG04L01844		Plate Sump   (Replaces: WD01X10219)				$ 240.81
462	WG04F00333		Drain Tube Asm   (Replaces: WD24X10035)			Immediately	$ 92.96
501	WG04F00017		Arm Spray Low Asm   (Replaces: WD22X10047)				$ 204.74
502	WD22X10056		Filter Coarse		Appelez-nous	-
505	WG01L00289		Sump Inlet   (Replaces: WD18X10026)			Immediately	$ 83.70
507	WG04F04636		Filter Fine Asm   (Replaces: WD12X10109)			Immediately	$ 109.01

    View Diagram in Separate Window       Print Part List
