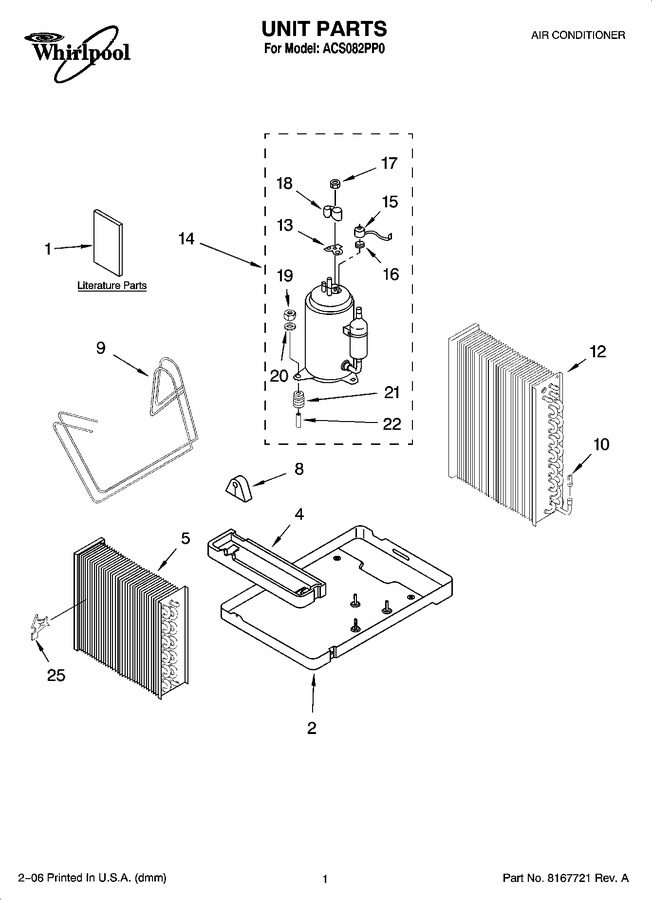

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8199568 | Literature Parts (use And Care Guide) |
|
- | |||||
| 2 | 8199556 | Base |
|
- | |||||
| 4 | 789778 | Pan, Drain (evaporator) |
|
- | |||||
| 5 | 8199529 | Evaporator |
|
- | |||||
| 8 | 789755 | Grommet, Tube |
|
- | |||||
| 9 | 789729 | Tube, Restrictor .036 I.d. X 18`` |
|
- | |||||
| 10 | 789673 | Strainer |
|
- | |||||
| 12 | 8199527 | Condenser |
|
- | |||||
| 13 | WP950035 | Gasket, Terminal Cover (Replaces: 789831) |
|
$ 86.68 | |||||
| 14 | 8199575 | Compressor |
|
- | |||||
| 15 | 789829 | Overload |
|
- | |||||
| 16 | 789830 | Spring, Overload |
|
- | |||||
| 17 | 789833 | Nut, Terminal Cover |
|
- | |||||
| 18 | 789832 | Cover, Terminal |
|
- | |||||
| 19 | 789661 | Nut |
|
- | |||||
| 20 | W11236646 | Washer (Replaces: 789784) |
|
Immediately | $ 14.73 | ||||
| 21 | 789827 | Grommet |
|
- | |||||
| 22 | 789783 | Sleeve |
|
- | |||||
| 25 | 8199539 | Clip, Thermistor |
|
- |
