SELECT A DIAGRAM

01 - Unit Parts


02 - Air Flow And Control Parts

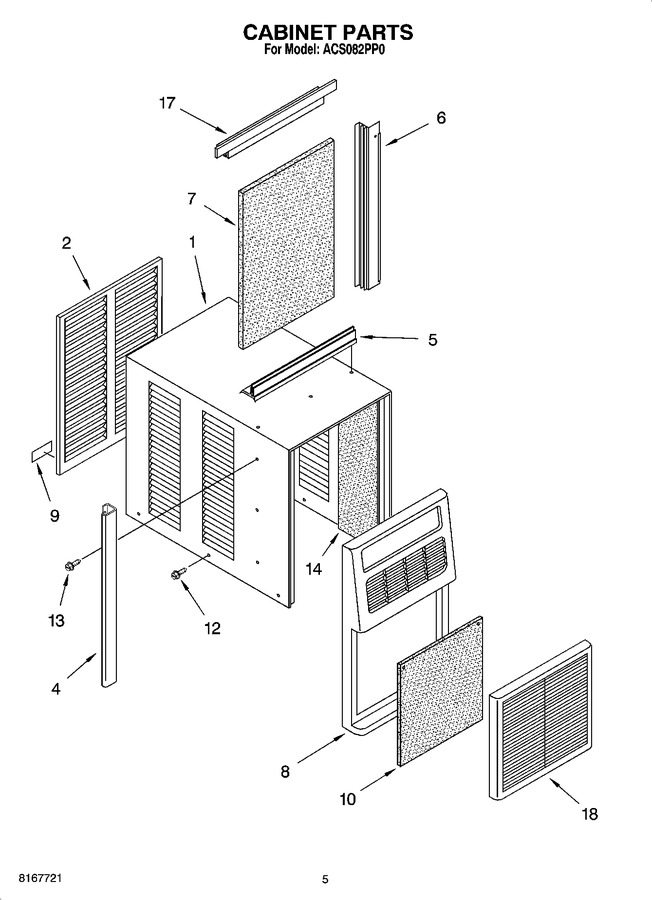

03 - Cabinet Parts


04 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8199566		Cabinet Assembly (includes Insulation And Nos. 2 And 5)		Appelez-nous	-
2	8199567		Panel, Rear		Appelez-nous	-
4	789961		Retainer, Side (cabinet) (2)		Appelez-nous	-
5	789962		Retainer, Top (cabinet)		Appelez-nous	-
6	789963		Retainer, Panel (side) (2)		Appelez-nous	-
7	789817		Panel, Filler		Appelez-nous	-
8	8199564		Front Assembly (includes Item 18)		Appelez-nous	-
9	789925		Nameplate		Appelez-nous	-
10	789809		Filter, Air		Appelez-nous	-
12	3148443		Screw 8 X 1/4 Hex		Appelez-nous	-
13	4389654		Screw 8 X 3/8 Hex				$ 13.89
14	789746		Insulation, Cab. (side) (2 Required)		Appelez-nous	-
14	789747		Insulation, Cab. (top)		Appelez-nous	-
17	789964		Retainer, Filler Board (top)		Appelez-nous	-
18	8199565		Insert, Front		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
