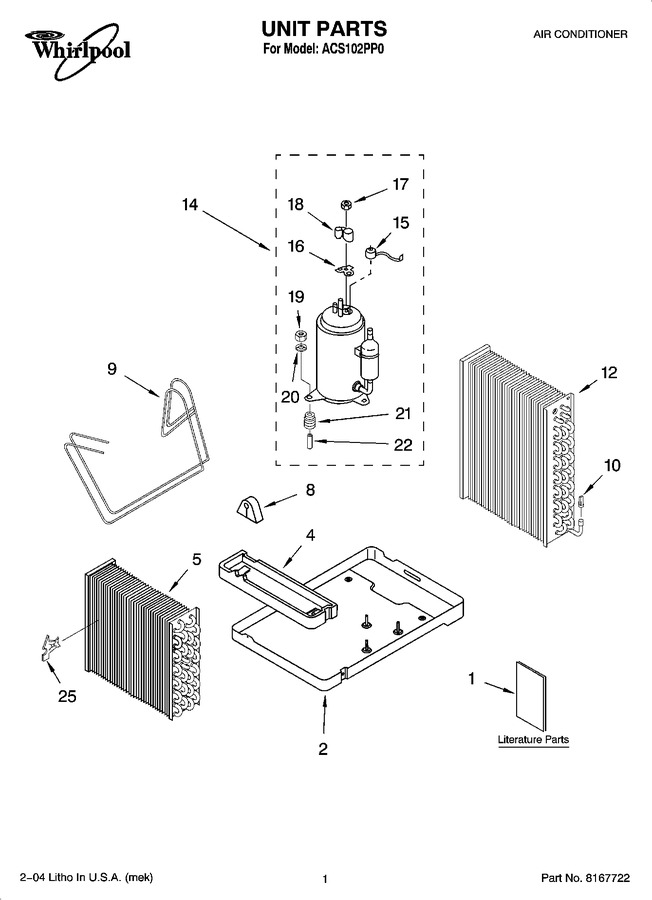

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8199568 | Literature Parts (use And Care Guide) |
|
- | |||||
| 2 | 8199556 | Base |
|
- | |||||
| 4 | 789778 | Pan, Drain (evaporator) |
|
- | |||||
| 5 | 8199640 | Evaporator |
|
- | |||||
| 8 | 789755 | Grommet, Tube |
|
- | |||||
| 9 | 8199509 | Tube, Restrictor .042 I.d. X 27.5`` (2) |
|
- | |||||
| 10 | 789673 | Strainer |
|
- | |||||
| 12 | 8199531 | Condenser |
|
- | |||||
| 14 | 8199641 | Compressor |
|
- | |||||
| 15 | 8199617 | Overload |
|
- | |||||
| 16 | 789882 | Gasket, Terminal Cover |
|
- | |||||
| 17 | 789883 | Nut, Terminal Cover |
|
- | |||||
| 18 | 8199642 | Cover, Terminal |
|
- | |||||
| 19 | 789661 | Nut |
|
- | |||||
| 20 | W11236646 | Washer (Replaces: 789784) |
|
Immediately | $ 14.73 | ||||
| 21 | 789827 | Grommet |
|
- | |||||
| 22 | 789783 | Sleeve |
|
- | |||||
| 25 | 8199639 | Clip, Thermistor |
|
$ 137.20 |
