SELECT A DIAGRAM

01 - Unit Parts

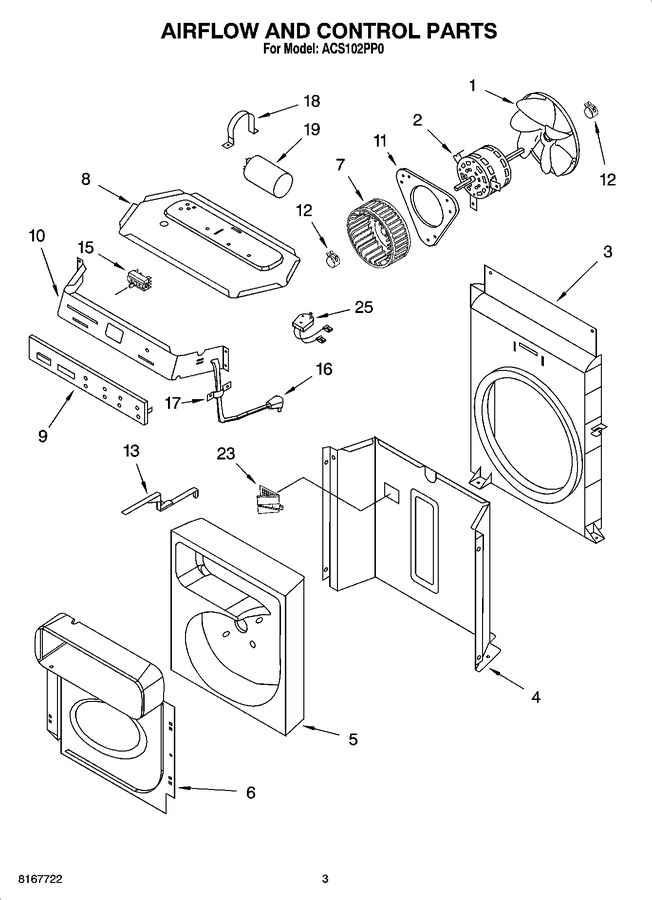

02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	789834		Blade, Fan		Appelez-nous	-
2	789837		Motor, Fan		Appelez-nous	-
3	789836		Shroud, Condenser		Appelez-nous	-
4	789794		Wall, Dividing		Appelez-nous	-
5	8199633		Housing, Blower		Appelez-nous	-
6	789796		Shroud, Evaporator (includes Insul.)		Appelez-nous	-
7	789838		Wheel, Blower		Appelez-nous	-
8	8199636		Panel, Control (bottom)		Appelez-nous	-
9	8199634		Touch Pad Assembly		Appelez-nous	-
10	8199572		Panel, Control		Appelez-nous	-
11	789772		Plate, Motor Mounting		Appelez-nous	-
12	789835		Clamp		Appelez-nous	-
13	789917		Actuator, Exhaust Door		Appelez-nous	-
15	8199574		Transformer		Appelez-nous	-
16	8199638		Cord, Power		Appelez-nous	-
17	789806		Relief, Strain		Appelez-nous	-
18	789749		Strap, Capacitor		Appelez-nous	-
19	8199635		Capacitor		Appelez-nous	-
23	789907		Door, Exhaust		Appelez-nous	-
25	789801		Assist, Start		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
