View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

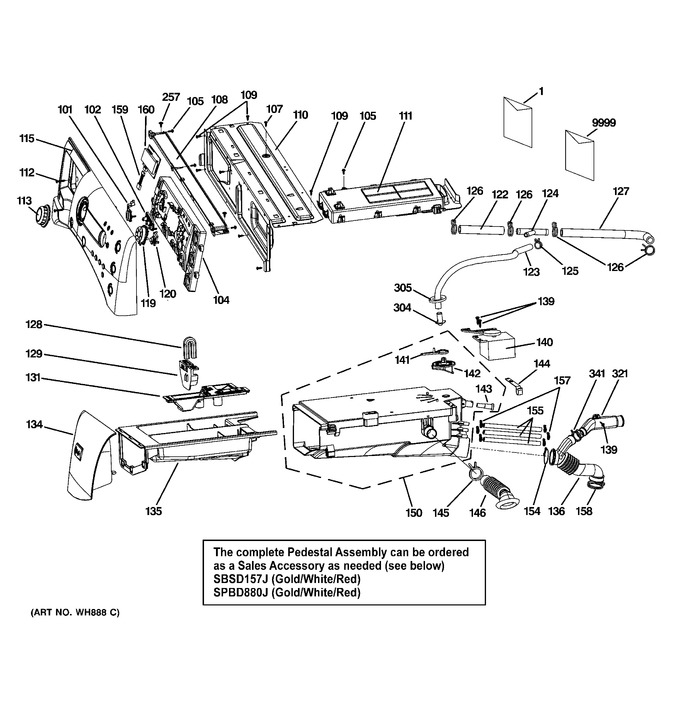

1 - Controls & Dispenser
2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 49-90344 | Pdstl Install Instr |
|
- | |||||
| 1 | 49-90340 | User Manual |
|
- | |||||
| 1 | 31-16571-1 | Mini Manual |
|
- | |||||
| 101 | WH01X10372 | Power Button |
|
- | |||||
| 102 | WH01X10373 | Settings Button Ww |
|
- | |||||
| 104 | WH12X10387 | Control Board Asm |
|
- | |||||
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw_st4*13 |
|
- | |||||
| 108 | WH16X10107 | Control Rear Cover |
|
- | |||||
| 109 | WH02X10184 | Screw_st4.2*13 |
|
- | |||||
| 110 | WH46X10202 | Front Top Bracket |
|
- | |||||
| 111 | WH12X10388 | Power Board Asm |
|
- | |||||
| 112 | WH02X10185 | Screw_st4*25 |
|
- | |||||
| 113 | WH11X10055 | Select Cycle Knob Asm |
|
- | |||||
| 115 | WH42X10781 | Control Panel Asm Ww |
|
- | |||||
| 119 | WH01X10419 | Cluster Button Asm Ww |
|
- | |||||
| 120 | WH01X10375 | Button "back" Ww |
|
- | |||||
| 122 | WH41X10108 | Inlet_water_hose_1 |
|
- | |||||
| 123 | WH41X10109 | Spray_hose |
|
- | |||||
| 124 | WH41X10110 | 3_way_pipe |
|
- | |||||
| 125 | WH01X10243 | 3_way_pipe_clamp |
|
- | |||||
| 126 | WH01X10244 | 3_way_pipe_clamp |
|
- | |||||
| 127 | WH41X10111 | Inlet_water_hose |
|
- | |||||
| 128 | WH41X10179 | Siphon Pipe |
|
- | |||||
| 129 | WH41X10180 | Liquid Detergent Insert |
|
- | |||||
| 131 | WH41X10181 | Softener Bleach Cover |
|
- | |||||
| 134 | WH41X10184 | Dispenser Dwr Front Ww |
|
- | |||||
| 135 | WH41X10185 | Drawer Dispenser |
|
- | |||||
| 136 | WH41X10186 | Water Inlet Pipe |
|
- | |||||
| 139 | WH02X10186 | Screw St 4*20 |
|
- | |||||
| 140 | WG02F04592 | Diverter (Replaces: WH43X10031) |
|
Immediately | $ 184.41 | ||||
| 141 | WH01X10247 | Diverter_indicator |
|
- | |||||
| 142 | WH01X10376 | Diverter Lever Plate |
|
- | |||||
| 143 | WH41X10121 | Dispenser_inlet |
|
- | |||||
| 144 | WH01X10249 | Dispenser_clamp |
|
- | |||||
| 145 | WH01X10250 | Dispenser_vent_hose_clam |
|
- | |||||
| 146 | WG04F00286 | Dispenser_vent_hose (Replaces: WH41X10122) |
|
$ 10.32 | |||||
| 150 | WG04F00632 | Main Box Diverter Asm (Replaces: WH41X10187) |
|
$ 153.79 | |||||
| 154 | WH01X10377 | Clamp - Water Inlet Pipe |
|
- | |||||
| 155 | WH41X10188 | Rubber Pipe |
|
- | |||||
| 157 | WH01X10378 | Clamp - Quick Disconnect |
|
- | |||||
| 158 | WH01X10379 | Clamp - Water Inlet Pipe |
|
- | |||||
| 159 | WH19X10056 | Harness - Display Board |
|
- | |||||
| 160 | WH12X10389 | Display Board - Vfd |
|
- | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 304 | WG04L00219 | Gasket_nozzle (Replaces: WH08X10021) |
|
$ 5.36 | |||||
| 305 | WG04L00220 | Gasket_nozzle_washer (Replaces: WH02X10206) |
|
$ 4.31 | |||||
| 321 | WH41X10189 | Hose - Vent |
|
- | |||||
| 341 | WH01X10275 | Pump_clamp |
|
- | |||||
| 9999 | WE25X10028 | Kit - Stacking Wsh/dry |
|
- | |||||
| WG02F04591 | Control Board |
|
$ 293.11 | ||||||
| WG04L05906 | Basket Asm (Replaces: WG04L01530) |
|
$ 1,546.27 | ||||||
| WG02F04593 | Inverter & Power Brd Kit |
|
$ 741.66 | ||||||
| WG04A00194 | Vis |
|
$ 4.43 | ||||||
| WG04A01269 | Vis |
|
$ 4.78 | ||||||
| WG04F00346 | Poulie D''entrainement |
|
$ 74.33 | ||||||
| WG04F12336 | Pompe (Replaces: WG04F00875) |
|
Immediately | $ 146.24 | |||||
| WG04F01600 | Rear Tub Asm |
|
$ 815.41 | ||||||
| WG04F02290 | Damper Shock |
|
$ 88.02 | ||||||
| WG04F03673 | Cuve Avant |
|
$ 170.55 | ||||||
| WG04L00208 | Gasket |
|
$ 267.96 | ||||||
| WG04L02307 | Charniﾃ#re De La Porte |
|
$ 133.11 | ||||||
| WG04L01221 | Charniﾃ#re |
|
$ 259.29 |
