1 - Controls & Dispenser

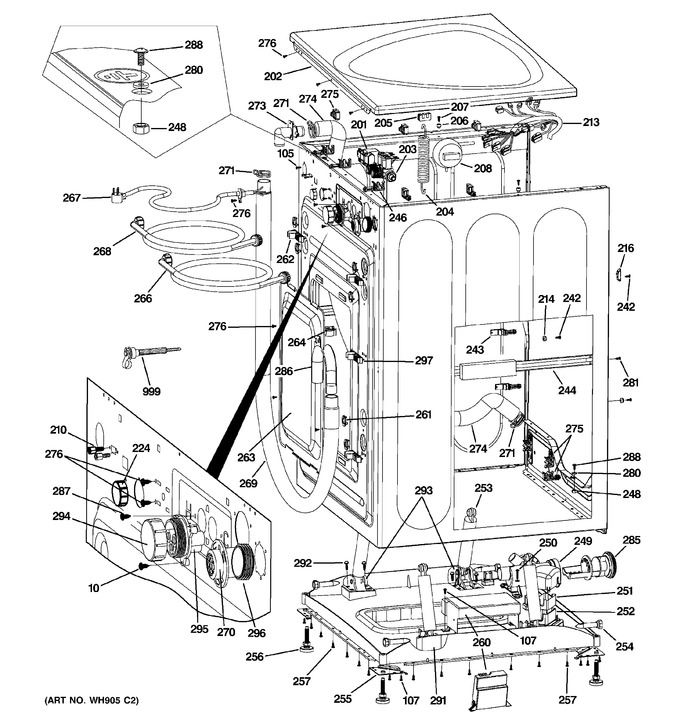

2 - Cabinet & Top Panel
3 - Front Panel & Door
4 - Tub & Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WH02X10223 | Screw_st4*10 |
|
- | |||||
| 105 | WH02X10181 | Screw_st3.5 X 11 |
|
- | |||||
| 107 | WH02X10183 | Screw_st4*13 |
|
- | |||||
| 201 | WH41X10123 | Emi_filter |
|
- | |||||
| 202 | WH44X10204 | Top Panel Asm Ww |
|
- | |||||
| 203 | WG04F01378 | Water Valve (Replaces: WH13X10023) |
|
Immediately | $ 111.16 | ||||
| 204 | WH05X10010 | Spring - Suspension |
|
- | |||||
| 205 | WH01X10380 | Hanger - Spring |
|
- | |||||
| 206 | WH01X10252 | Top_panel_pin |
|
- | |||||
| 207 | WH02X10187 | Screw_st 4.2x14 |
|
- | |||||
| 208 | WH12X10390 | Pressure Switch |
|
- | |||||
| 210 | WH02X10268 | Screw - Db9 Connector |
|
- | |||||
| 213 | WH19X10057 | Wire Harness |
|
- | |||||
| 214 | WH01X10253 | Front_panel_pin |
|
- | |||||
| 216 | WH16X10073 | Front_panel_hanger |
|
- | |||||
| 224 | WH01X10382 | Cover Wire |
|
- | |||||
| 242 | WH02X10182 | Screw_st4.2*13 |
|
- | |||||
| 243 | WH16X10074 | Wire_catch |
|
- | |||||
| 244 | WH16X10075 | Side_bracket |
|
- | |||||
| 246 | WH16X10076 | Wire_catch |
|
- | |||||
| 248 | WH02X10199 | Nut_m5 |
|
- | |||||
| 249 | WG04F12336 | Pump (Replaces: WH23X10028) |
|
Immediately | $ 146.24 | ||||
| 250 | WH02X10200 | Screw_washer_st4*25 |
|
- | |||||
| 251 | WH44X10176 | Wiring_cover |
|
- | |||||
| 252 | WH44X10177 | Inverter Connectors Shie |
|
- | |||||
| 253 | WH01X10385 | Damper - Shock |
|
- | |||||
| 254 | WH01X10261 | Damper_pin |
|
- | |||||
| 255 | WH16X10077 | Corner Bracket |
|
- | |||||
| 256 | WG04F01833 | Leg (Replaces: WH46X10130) |
|
$ 34.94 | |||||
| 257 | WH02X10201 | Screw_st4.2*13 |
|
- | |||||
| 260 | WH12X10391 | Inverter - Metal Case |
|
- | |||||
| 260 | WH12X10414 | Inverter - Plastic Case |
|
- | |||||
| 261 | WH44X10206 | Cover - Shipping Screw |
|
- | |||||
| 262 | WH01X10262 | Outside_drain_hose_catch |
|
- | |||||
| 263 | WH46X10132 | Cabinet_rear_cover |
|
- | |||||
| 264 | WH01X10263 | Inside_drain_hose_catch |
|
- | |||||
| 266 | WH41X10124 | Main_water_hose_cold |
|
- | |||||
| 267 | WH19X10046 | Power_cord |
|
- | |||||
| 268 | WH41X10125 | Main_water_hose_hot |
|
- | |||||
| 269 | WG04F00643 | Outside_drain_hose (Replaces: WH41X10126) |
|
$ 99.93 | |||||
| 270 | WH01X10264 | Vent_hose_coupling |
|
- | |||||
| 271 | WH01X10265 | Drain_hose_clamp |
|
- | |||||
| 273 | WG04F00309 | Drain_hose_coupling (Replaces: WH01X10266) |
|
$ 7.55 | |||||
| 274 | WH41X10127 | Inside_drain_hose |
|
- | |||||
| 275 | WH16X10078 | Wire_catch_1 |
|
- | |||||
| 276 | WH02X10203 | Screw St4.2*11 |
|
- | |||||
| 280 | WH02X10218 | Lock Washer |
|
- | |||||
| 281 | WH02X10219 | Screw_st4*10 |
|
- | |||||
| 285 | WG04A05158 | Pump Filter (Replaces: WH23X10029) |
|
$ 38.12 | |||||
| 286 | WG04F04381 | Drain Hose Guide U-shape (Replaces: WH41X10133) |
|
$ 8.34 | |||||
| 287 | WH02X10220 | Screw_st4.2*13 |
|
- | |||||
| 288 | WH02X10234 | Screw M5*12 |
|
- | |||||
| 291 | WH16X10108 | Damper Bracket - Left |
|
- | |||||
| 292 | WH02X10271 | Screw St5.5*20 |
|
- | |||||
| 293 | WH16X10109 | Damper Bracket - Right |
|
- | |||||
| 294 | WH01X10399 | Quick Connector Dust Cap |
|
- | |||||
| 295 | WH01X10391 | Quick Connector |
|
- | |||||
| 296 | WH08X10037 | Seal Vent Pipe |
|
- | |||||
| 297 | WH01X10392 | Tube Support |
|
- | |||||
| 999 | WH49X10049 | Kit - Shipping Bolt Grey |
|
- |
