SELECT A DIAGRAM

1 - Door Parts


2 - Control Parts


3 - Oven Cavity Parts


4 - Latch Board Parts


5 - Interior Parts (1)


6 - Interior Parts (2)


7 - Installation Parts

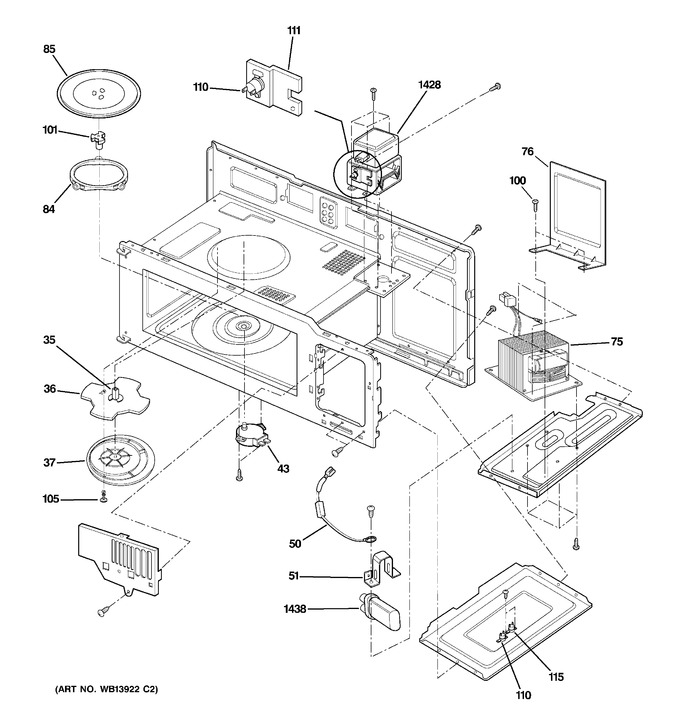

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	WB02X11261		Holder Stirrer Fan		Appelez-nous	-
36	WB06X10706		Fan		Appelez-nous	-
37	WB06X10712		Cover Stirrer Fan				$ 29.65
43	WB26X10240		Motor(circ),synchronous		Appelez-nous	-
50	WB18X10449		Cable, Diode		Appelez-nous	-
51	WB06X10561		Bracket,capacitor		Appelez-nous	-
75	WB20X10046		Transformer.h.v		Appelez-nous	-
76	WB02X11340		Hvt Bracket Asm		Appelez-nous	-
84	WB06X10705		Rotating Ring Asm		Appelez-nous	-
85	WB49X10225		Tray, Glass		Appelez-nous	-
100	WB02X10777		Wb02x10745		Appelez-nous	-
101	WB06X10704		Shaft Turntable		Appelez-nous	-
105	WB01X10055		Rivet Assy All		Appelez-nous	-
110	WB27X11100		Thermostat		Appelez-nous	-
111	WB06X10570		Bracket,misc		Appelez-nous	-
115	WB27X11097		Thermostat		Appelez-nous	-
1428	WB27X10927		Magnetron		Appelez-nous	-
1438	WB27X11096		Capacitor H.v		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
