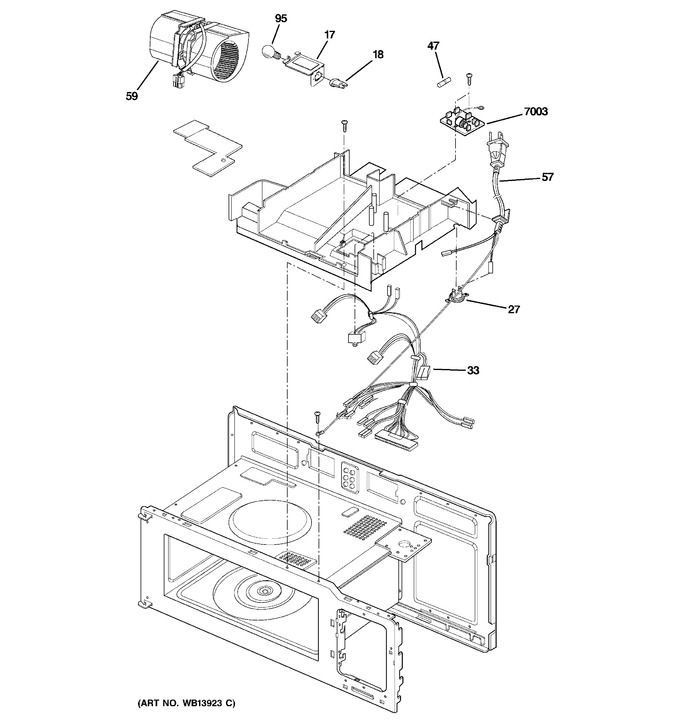

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 17 | WB06X10556 | Cover,lamp |
|
- | |||||
| 18 | WB08X10022 | Socket Lamp |
|
- | |||||
| 27 | WB27X11098 | Thermostat |
|
- | |||||
| 33 | WB18X10367 | Harness Main |
|
- | |||||
| 47 | WB27X11099 | Fuse |
|
- | |||||
| 57 | WB18X10450 | Power Cord Asm |
|
- | |||||
| 59 | WB26X10202 | Motor Ventilation |
|
- | |||||
| 95 | WB25X10023 | Lamp |
|
- | |||||
| 7003 | WB27X11101 | Filter Asm, Noise |
|
- |
