SELECT A DIAGRAM

1 - Freezer Door


2 - Cabinet


3 - Unit Parts

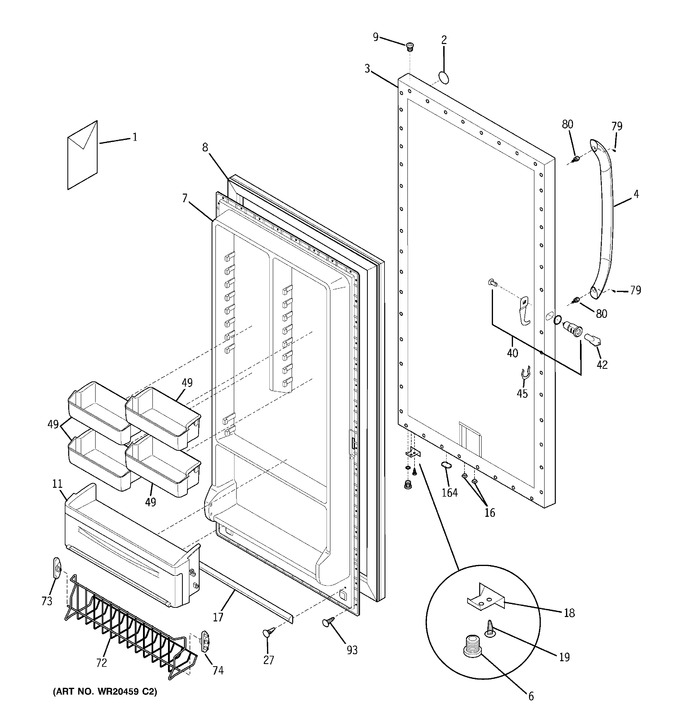

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51656		Mini Manual		Appelez-nous	-
2	WR04X10159		Nameplate		Appelez-nous	-
3	WR78X12349		Panel-outer Door, White		Appelez-nous	-
4	WR12X10968		Handle-door		Appelez-nous	-
6	WR02X12310		Bearing-hinge Bottom		Appelez-nous	-
7	WR77X10091		Panel-inner Door, Frz		Appelez-nous	-
8	WR24X10010		Gasket		Appelez-nous	-
9	WR02X12067		Bearing,hinge ,top		Appelez-nous	-
11	WR71X10849		Bin-door, W/lid		Appelez-nous	-
16	WR17X6045		Valve Breather		Appelez-nous	-
17	216524201		Gasket, Secondary   (Replaces: WR14X10314)				$ 49.62
18	WR02X12995		Door Stop, Chrome, Rh/lh		Appelez-nous	-
19	WR02X12989		Screw, Door Stop Mtg, Fh		Appelez-nous	-
27	5304472186		Clip, Panel Mtg   (Replaces: WR01X10916)				$ 11.57
40	WR05X10035		Lock Assy		Appelez-nous	-
42	WR05X10005		Key		Appelez-nous	-
45	WR01X10870		Clip, Spring		Appelez-nous	-
49	WR17X12666		Bin-door, 2-liter		Appelez-nous	-
72	WR21X10193		Shelf, Tilt Out, Wire		Appelez-nous	-
73	WR13X10441		End Cap Shelf Lh Tilt-		Appelez-nous	-
74	WR13X10442		End Cap Shelf Rh Tilt-		Appelez-nous	-
79	WG03A00456		Screw-set   (Replaces: WR01X10922)				$ 64.18
80	WR01X10873		Screw-shoulder, #10 Ab,		Appelez-nous	-
93	WR01X10797		Screw,ph Truss Head ,8-1		Appelez-nous	-
164	WR02X10087		Plug Button Base Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
