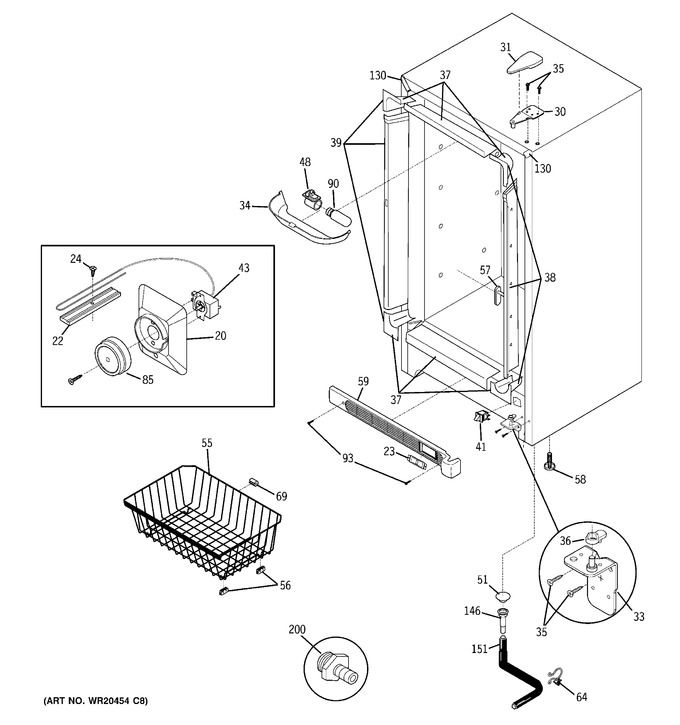

SELECT A DIAGRAM

1 - Freezer Door


2 - Cabinet


3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	WR02X12316		Cover-control Housing		Appelez-nous	-
22	WR02X11441		Clamp Cap .tube		Appelez-nous	-
23	WG03F03252		Light,signal ,assy W/bra   (Replaces: WR02X12315)				$ 72.66
24	WR01X10796		Screw,type A ,10-24 X 3/		Appelez-nous	-
30	297283803		Hinge-upper   (Replaces: WR12X10963)			Immediately	$ 19.52
31	WR02X12689		Cover-hinge		Appelez-nous	-
33	WR12X10964		Hinge-bottom, Stepped Pi		Appelez-nous	-
34	WR02X12994		Shield-light		Appelez-nous	-
35	WR01X10780		Screw-hinge Mtg,hex Head		Appelez-nous	-
36	WR02X10393		Ramp Door Closure		Appelez-nous	-
37	WR40X10058		Breaker Kit W/corners,32		Appelez-nous	-
38	WR40X10064		Breaker Kit W/corners		Appelez-nous	-
39	WR40X10065		Breaker Kit W/corners,lo		Appelez-nous	-
41	WR23X10303		Switch Light		Appelez-nous	-
43	WR09X10063		Control Temp		Appelez-nous	-
48	WR23X10302		Light Socket		Appelez-nous	-
51	WR02X10073		Plug Drain Interior		Appelez-nous	-
55	WR21X10195		Basket		Appelez-nous	-
56	WR02X11444		Glide-basket		Appelez-nous	-
57	WR02X11446		Stop-basket		Appelez-nous	-
58	WR2X9485		Leveling Leg Adjustable		Appelez-nous	-
59	WR74X10217		Grille/kickplate,32" Wh		Appelez-nous	-
64	WR1X2181		Clip Drain Hose		Appelez-nous	-
69	WR2X6361		Bumper Basket		Appelez-nous	-
85	WR02X10860		Knob Cold Control		Appelez-nous	-
90	PURCH. LOCAL1		Light Bulb/lamp		Appelez-nous	-
93	WR01X10797		Screw,ph Truss Head ,8-1		Appelez-nous	-
130	WR02X12717		Trim-cabinet Corner,whit		Appelez-nous	-
146	WR2X6353		Drain		Appelez-nous	-
151	WR17X11418		Hose-drain		Appelez-nous	-
200	WR1X1965		Hose Adapter		Appelez-nous	-
