SELECT A DIAGRAM

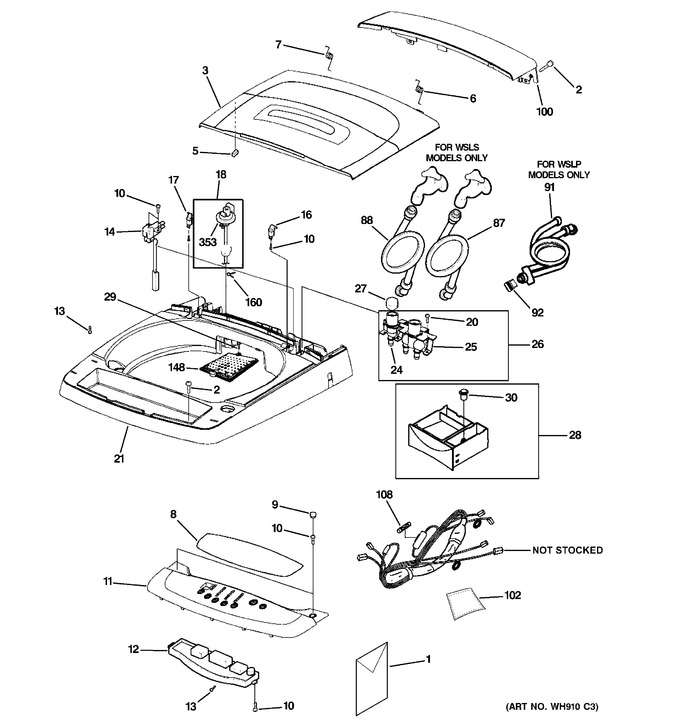

1 - Lid & Top


2 - Cabinet & Base


3 - Tub, Agitator & Drive Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-16606		Mimi Manual		Appelez-nous	-
1	49-9031-1		Owner's Manual		Appelez-nous	-
2	WH02X10292		Scr (m5*l20)		Appelez-nous	-
3	WG04A01345		Washer Lid - Top Wh   (Replaces: WH44X10217)			Immediately	$ 140.93
5	WH01X10076		Magnet-r.s		Appelez-nous	-
6	WH01X10441		Spring-lid(right)		Appelez-nous	-
7	WH01X10440		Spring-lid(left)		Appelez-nous	-
8	WH42X10807		Inlay-panel (wh)		Appelez-nous	-
9	WH02X10286		Cap-screw		Appelez-nous	-
10	WH02X10289		Scr (m4*l14)		Appelez-nous	-
11	WH42X10808		Control Panel (wh)		Appelez-nous	-
12	WH12X10426		Control Board Asm		Appelez-nous	-
13	6002-000630		Screw-tapping   (Replaces: WR01X10520)				$ 0.94
14	WH12X10102		Assy-checker S/w		Appelez-nous	-
16	WG04L01727		Hinge-door(l);   (Replaces: WH16X10033)				$ 12.40
17	WG04L01728		Hinge-door(r)   (Replaces: WH16X10034)				$ 12.40
18	WG04F04781		Pressure Switch   (Replaces: WH12X10427)				$ 62.09
20	WR02X12114		Screw-tapping		Appelez-nous	-
21	WH44X10215		Cover-top (wh)		Appelez-nous	-
24	WH13X10042		Water Valve Hot		Appelez-nous	-
25	WH13X10043		Water Valve Cold		Appelez-nous	-
26	WH13X10039		Water Valve Asm		Appelez-nous	-
27	WH13X10044		Cap - Water Valve		Appelez-nous	-
28	WH43X10048		Detergent Tray Asm (wh)		Appelez-nous	-
29	WH02X10081		Screw-tapping		Appelez-nous	-
30	WH43X10047		Cap-fabric Softner		Appelez-nous	-
87	WH41X10214		Hose Water Cold		Appelez-nous	-
88	WH41X10213		Hose Water Hot		Appelez-nous	-
100	WH44X10216		Back Cover (wh)		Appelez-nous	-
102	WH01X10464		Cover-wire Harness		Appelez-nous	-
108	WH01X10457		Fuse 12a~250v		Appelez-nous	-
148	WH01X10447		Guide-water		Appelez-nous	-
160	WH01X10453		Spring-clip		Appelez-nous	-
353	WH01X10452		Clamp Hose		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
