SELECT A DIAGRAM

1 - Lid & Top


2 - Cabinet & Base


3 - Tub, Agitator & Drive Assembly

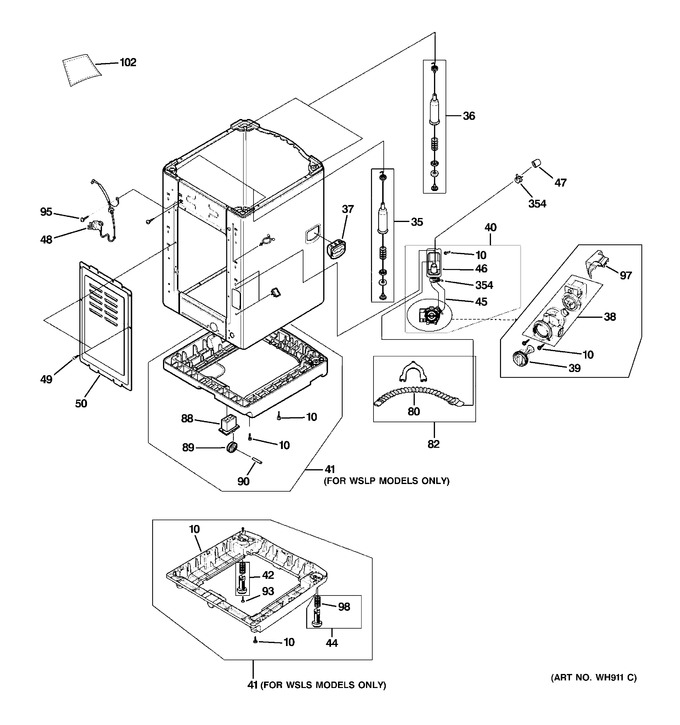

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WH02X10289		Scr (m4*l14)		Appelez-nous	-
35	WH16X10036		Assy-damper		Appelez-nous	-
36	WG04L01523		Assy-damper   (Replaces: WH16X10035)				$ 68.98
37	WH01X10438		Handle (wh)		Appelez-nous	-
38	WH23X10033		Drain Pump-120v~60hz		Appelez-nous	-
39	WH01X10366		Pump Filter Cap		Appelez-nous	-
40	WG04A01092		Drain Pump Asm W/joint   (Replaces: WH23X10032)			Immediately	$ 199.02
41	WH46X10213		Base Asm W/ Lvl Legs		Appelez-nous	-
42	WH46X10214		Level Leg Asm Lh		Appelez-nous	-
44	WH46X10215		Level Leg Asm Rh		Appelez-nous	-
45	WG04F04658		Hose-pump   (Replaces: WH41X10045)				$ 63.60
46	WH41X10044		Joint-hose Pump		Appelez-nous	-
47	WH01X10443		Cap-hose Rubber		Appelez-nous	-
48	WH19X10062		Power Cord Asm-120v~60hz		Appelez-nous	-
49	6002-000239		Scr Cover-back (m4*l8)   (Replaces: WH02X10287)			Immediately	$ 1.84
50	WH44X10127		Cover-back		Appelez-nous	-
80	WG04F06315		Hose-pump   (Replaces: WH41X10210)		Appelez-nous	-
82	WH41X10046		Assy-hose(o)		Appelez-nous	-
88	WH41X10213		Hose Water Hot		Appelez-nous	-
90	WH02X10293		Scr Saddle (m6.5*l20)		Appelez-nous	-
93	WH02X10290		Scr (m4*l14)		Appelez-nous	-
95	6006-001170		Scr (m4*l10)   (Replaces: WH02X10288)				$ 0.94
97	WH44X10219		Cover - Pump		Appelez-nous	-
98	WH01X10445		Leg-spring		Appelez-nous	-
102	WH01X10464		Cover-wire Harness		Appelez-nous	-
354	WH01X10451		Clamp Hose		Appelez-nous	-
