Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-51785 Pm Mini Wiring Manual Appelez-nous -
1 49-60597 Pm Guide Owners Appelez-nous -
2 WR02X12257 Scr 4-10 Pl Pnp 3/4 Ss Appelez-nous -
6 WR01A01440 Set Screw   (Replaces: WR01X10450) Special Order $ 9.53

7 WR01L04604 Tubulur Handle Asm   (Replaces: WR12X10855) Special Order $ 62.89

9 WR02X12390 Fastener Handle Ss Appelez-nous -
13 WR01A00936 Stop Door   (Replaces: WR02X12353) Special Order $ 12.40

14 WR24X10234 Gasket Appelez-nous -
15 WR02X10780 Cam Closure Fz Bk Appelez-nous -
26 WR71X10706 Ice Guide Appelez-nous -
27 WR01X10857 Scr 8-18 Ab Flp 7/8 S Appelez-nous -
31 WR17X12777 Grill Recess Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
55 WR01F00145 Board Asm Disp Lighting   (Replaces: WR55X10899) Special Order $ 15.88

58 WR01F01053 Housing Shield Disp   (Replaces: WR17X12500) Special Order $ 22.89

62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 65.21

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.97

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 12.71

69 WR01F00833 Funnel Ice Disp   (Replaces: WR17X12120) Special Order $ 54.09

70 WR17X12778 Paddle Ice Disp Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

74 WR01A00922 Spring Torsion   (Replaces: WR02X12256) Special Order $ 23.82

80 WR01F02845 Union Connector Reg   (Replaces: WR02X11330) In-Stock Immediately $ 19.06

93 WR55X10987 Interface Dispenser Asm Appelez-nous -
122 WR01L02896 Module Shelf Fz   (Replaces: WR71X10291) Special Order $ 26.70

123 WR71X10501 Module Shelf Fz Fixed Appelez-nous -
212 WR02X10689 Grommet Base Grille Appelez-nous -
854 WR23X10665 Harness Recess Dispensor Appelez-nous -
900 WR78X12532 Door Foam Asm Fz Appelez-nous -
903 WR01X10234 Thimble Door Btm Fz Bk Appelez-nous -
904 WR01X10582 Scr 10-16 Appelez-nous -
911 WR01X10233 Thimble Door Top Bk Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

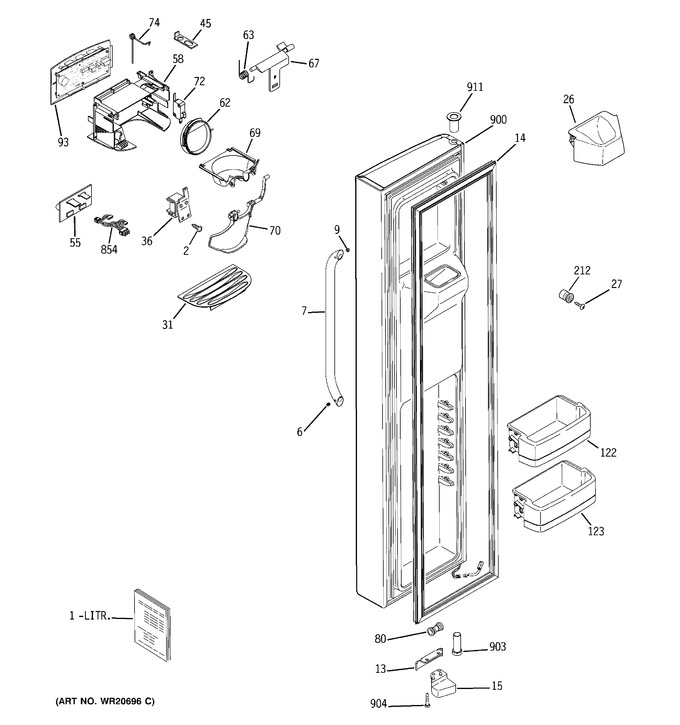

Diagram for GSHS6PGYAESS
