SELECT A DIAGRAM

1 - Freezer Door

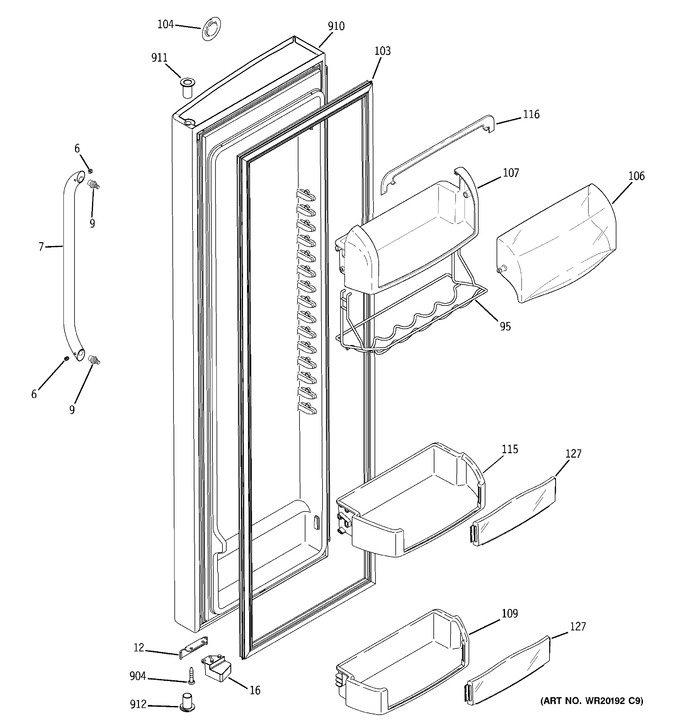

2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR01A01440		Set Screw   (Replaces: WR01X10450)				$ 9.53
7	WR01L04604		Tubulur Handle Asm   (Replaces: WR12X10855)				$ 62.89
9	WR02X12390		Fastener Handle Ss		Appelez-nous	-
12	WR01A00935		Stop Door   (Replaces: WR02X12352)				$ 12.40
16	WR01F01557		Cam Closure Ff Bk   (Replaces: WR02X10779)				$ 36.53
95	WR17X12289		Wine & Beverage Rack		Appelez-nous	-
103	WR24X10235		Gasket		Appelez-nous	-
104	WR01A00028		Badge   (Replaces: WR04X10168)				$ 13.97
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 61.06
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10605)				$ 38.81
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10607)			Immediately	$ 65.72
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10761)			Immediately	$ 68.21
904	WR01X10582		Scr 10-16		Appelez-nous	-
910	WR78X12170		Door Foam Asm Ff		Appelez-nous	-
911	WR01X10233		Thimble Door Top Bk		Appelez-nous	-
912	WR01X10232		Thimble Door Btm Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
